2014 Hot Sale Wind Solar Hybrid Inverters SP-T-13KW

2014 Hot Sale Wind Solar Hybrid Inverters SP-T-13KW thumbnail-1
2014 Hot Sale Wind Solar Hybrid Inverters SP-T-13KW photo-1
US$ 0.01 - 1,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip
Model Number:
SP-T-13KW
Contact Supplier Request Quote Chat Now
Yueqing Saip Electric Company Limited
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saip
Model Number SP-T-13KW
Output Power Other, >1000KW
Output Type Triple
Size 575*655*240mm
Weight 44.5kg
Input Voltage 3/N/PE,230/400V
Output Voltage 1000V
Type DC/AC Inverters
Output Frequency Max.AC power:13000w
Output Current 20A

Specifications

hot sale wind solar hybrid inverters SP-T-13KW
1 CE certification
2 IP65
3 5 years warraty
4 Noise level:<45(with fan<50)

2014 hot sale wind solar hybrid inverters SP-T-13KW

    2014 hot sale wind solar hybrid inverters SP-T-13KW



Specification:

1. Max.Efficiency 98.2%, Euro. Efficiency 97.8%

2. Double MPPT, MPPT accuracy up to 99.9%

3. IP65 design, work properly under severe outdoor circumstances.

4. Full slution of safety protection, DC switch integrate.

5. Flexible input and output connections, support RS485, Ethernet and USB communication.

6. Transformerless design and high power density, lighter and more convenient for installation.



Product Introduction:

2014 hot sale wind solar hybrid inverters SP-T-13KW



Technical Data:

Type SP-T-13KW SP-T-17KW SP-T-20KW
Input(DC)
Max.   PV-Generator Power(W) 13500 17600 21200
Max. DC   Voltage(V) 1000 1000 1000
MPPT DC   Voltage Range(V) 400-800 440-850 480-850
Nominal DC   Voltage(V) 640 640 640
Number of MPPT   Trackers 2 2 2
Max. DC   Current(A/B)(A) 22/22 22/22 22/22
DC Connection   per MPPT A:3 / B:3 A:3 / B:3 A:3 / B:3
Output(AC)
Nominal AC   Voltage(V) 3/N/PE,230/400V 3/N/PE,230/400V 3/N/PE,230/400V
Frequency(Hz) 50, 60 50, 60 50, 60
Max.AC   Power(W) 13000 17000 19200
Nominal AC   Power(W) 13000 17000 19200
Max. AC   Current(A) 20 26 29
Nominal DC   Current(A) 18.8 24.6 28
Power Factor 0.9i…1…0.9c 0.9i…1…0.9c 0.9i…1…0.9c
Hammonic   Distortion(THD) <2% <2% <2%
Power   Consumption at Night(W) <0.6 <0.6 <0.6
Power   Consumption at Standby(W) <12 <12 <12
Efficiency
Max.Efficiency 98% 98.10% 98.20%
Euro.Efficiency 97.50% 97.60% 97.80%
MPPT   Efficiency 99.90% 99.90% 99.90%
Safety and Protection
DC Surge   Protection Type III Type III Type III
DC Insulation   Monitoring Integrated Integrated Integrated
Earth Fault   Protection Integrated Integrated Integrated
Grid   Monitoring According to VDE   0126-1-1 According to VDE   0126-1-1 According to VDE   0126-1-1
Earth Fault   Current Monitoring RD1699,   ENEL, G59, AS4777 According to VDE   0126-1-1 RD1699,   ENEL, G59, AS4777 According to VDE   0126-1-1 RD1699,   ENEL, G59, AS4777 According to VDE   0126-1-1
Electricity   Fuse Protection Integrated Integrated Integrated
DC Switch Integrated Integrated Integrated
Normative Reference
CE Compliant   According to IEC62109,EN61000-6-2, EN61000-6-3,EN61000-3-12,EN61000-3-11 IEC62109,EN61000-6-2, EN61000-6-3,EN61000-3-12,EN61000-3-11 IEC62109,EN61000-6-2, EN61000-6-3,EN61000-3-12,EN61000-3-11
Dimensions and Weight
Dimensions   (WxHxD)(mm) 575x655x240 575x655x240 575x655x240

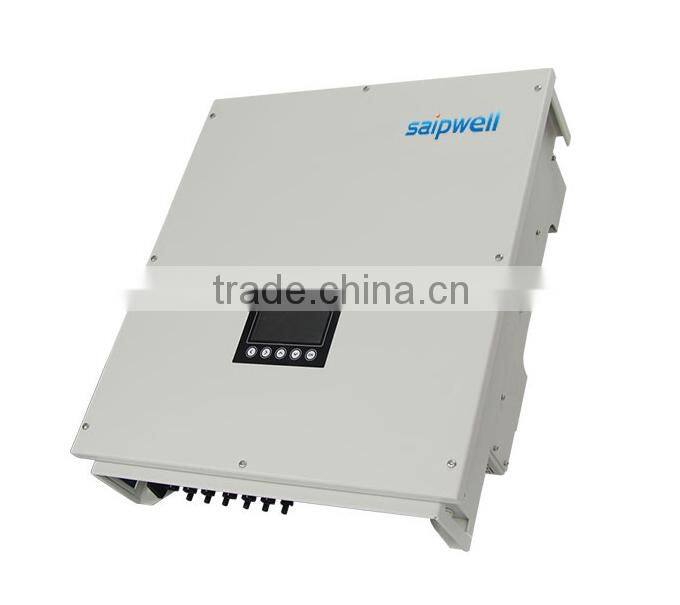

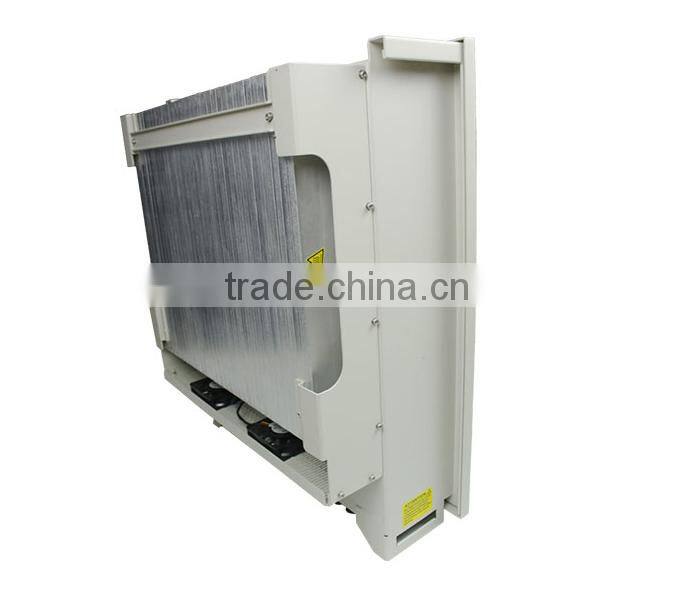

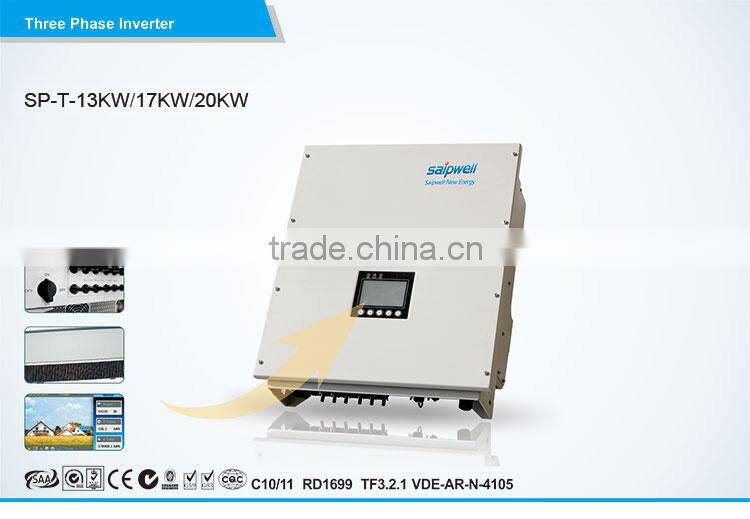

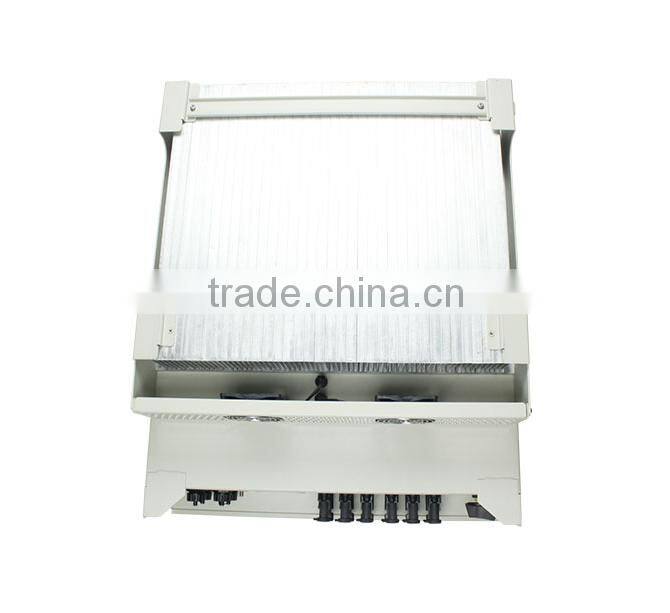

Product Detail



2014 hot sale wind solar hybrid inverters SP-T-13KW2014 hot sale wind solar hybrid inverters SP-T-13KW2014 hot sale wind solar hybrid inverters SP-T-13KW

Working Principle:

2014 hot sale wind solar hybrid inverters SP-T-13KW

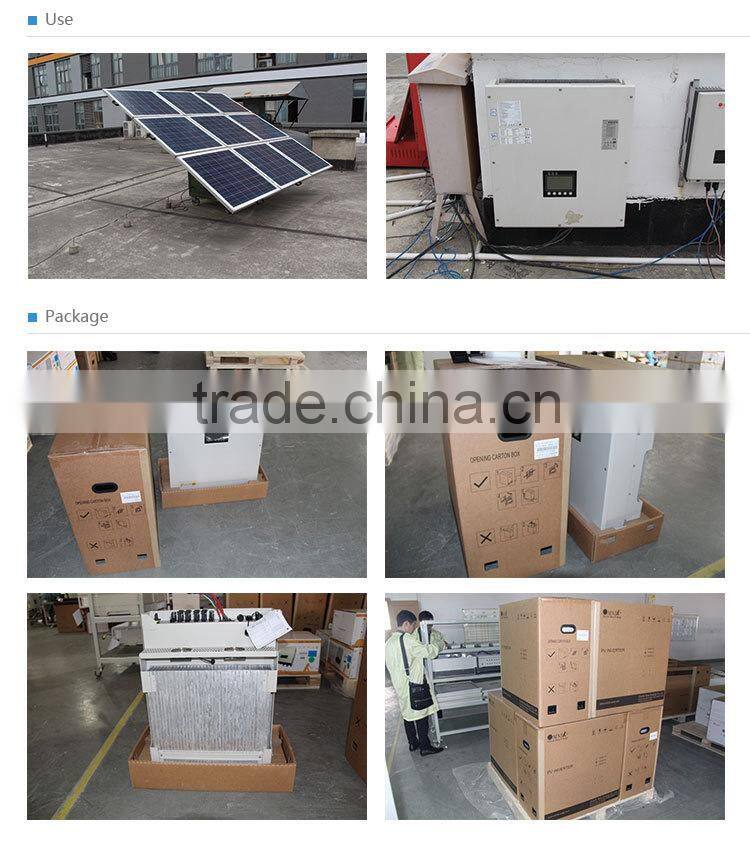

Installation and service:

2014 hot sale wind solar hybrid inverters SP-T-13KW2014 hot sale wind solar hybrid inverters SP-T-13KW









2014 hot sale wind solar hybrid inverters SP-T-13KW

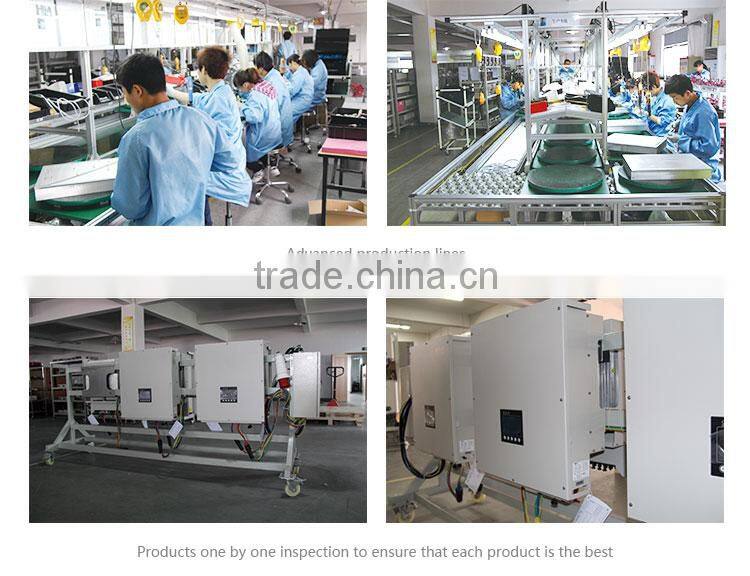

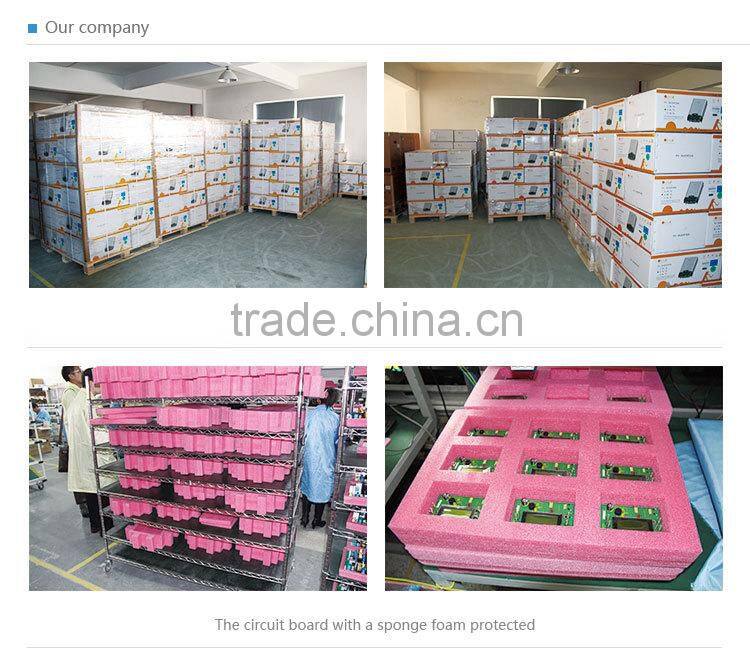

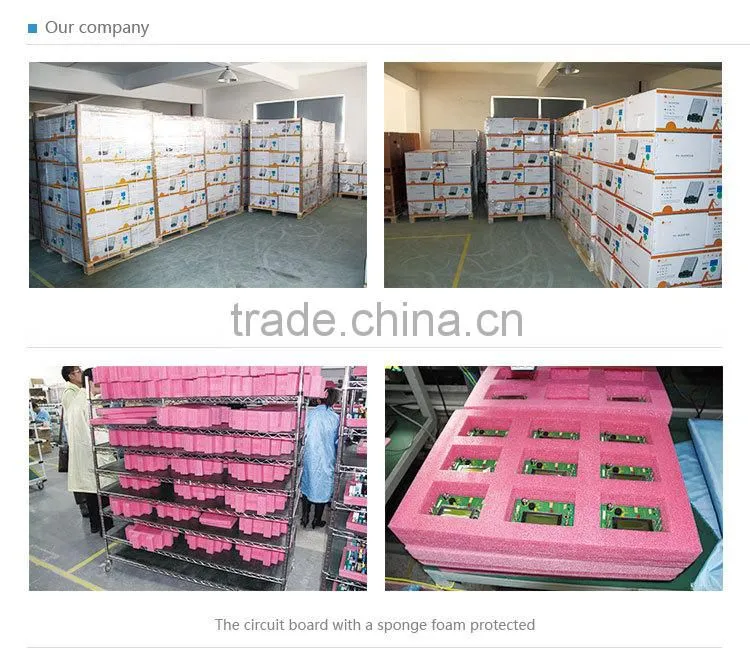

Factory show:

2014 hot sale wind solar hybrid inverters SP-T-13KW



2014 hot sale wind solar hybrid inverters SP-T-13KW



Purchase Guide

 Please advise below info.for us to provide solution for you:



1. Where is the solar generator used? Situation where the solar radiation?

2. What is the Load and power of your appliance?

3. How many working hours per day of your appliance?

4. How many rainy days in your local?

...



The more details, the more professional solution.





About us

Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.

Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".

We have 5 specialized branches,over 300 specialized cooperative partners.

Saip,an ISO9001 certificated enterprise.

With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.



2014 hot sale wind solar hybrid inverters SP-T-13KW2014 hot sale wind solar hybrid inverters SP-T-13KWCertifications:
