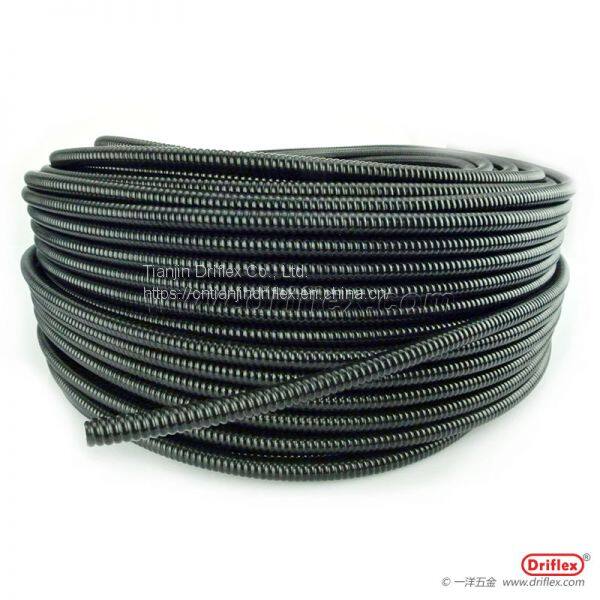

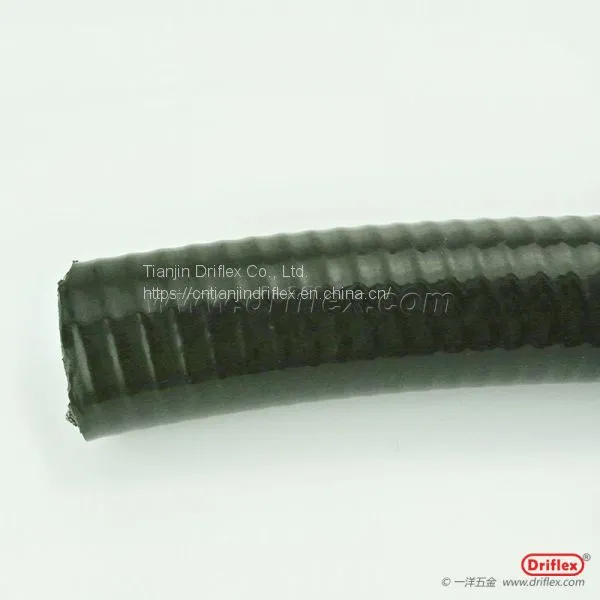

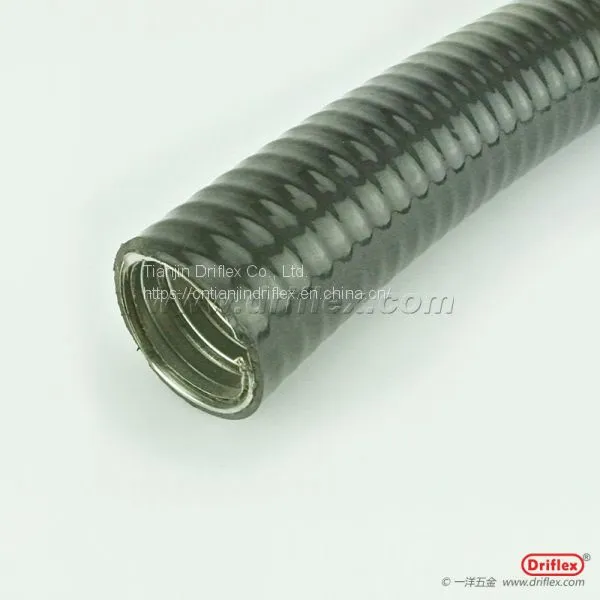

Help Center1 1/2 INCH LIQUID TIGHT GALVANIZED STEEL CORE WITH YARN AND PVC COATED
Related Products
-
2 INCH LIQUID TIGHT GALVANIZED STEEL CORE WITH YARN AND PVC COATEDUS$ 8.91 - 9.09MOQ: 200 Meters -
1/2 INCH LOW FIRE ZERO HALOGEN FLEXIBLE METAL CONDUITUS$ 0.78 - 0.84MOQ: 200 Meters
-
3/4 INCH LOW FIRE ZERO HALOGEN FLEXIBLE METAL CONDUITUS$ 1.02 - 1.08MOQ: 200 Meters
-
1 INCH LOW FIRE ZERO HALOGEN FLEXIBLE METAL CONDUITUS$ 1.37 - 1.44MOQ: 200 Meters
-
11/4 INCH LOW FIRE ZERO HALOGEN FLEXIBLE METAL CONDUITUS$ 2.19 - 2.28MOQ: 200 Meters
Features:

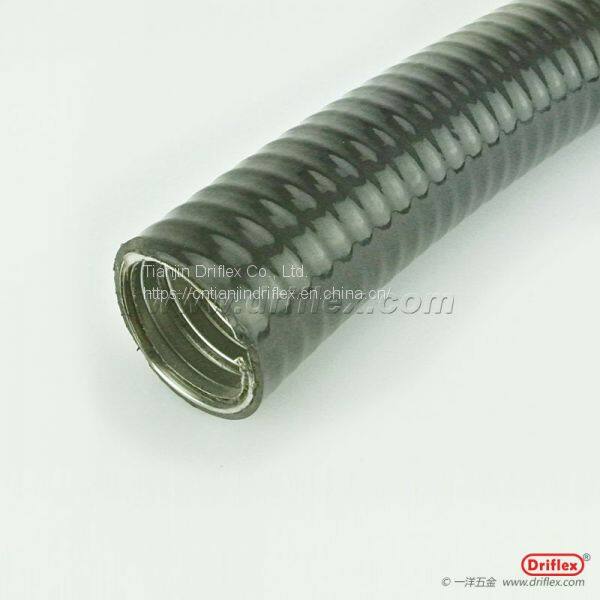

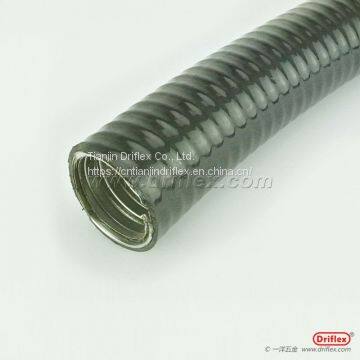

Galvanized steel, square-locked core with cord packing from 3/8" to 1-1/4", interlocked core from 1-1/2" to 4" to give additional strengh to prevent unravelling
Smooth wipe clean PVC jacketed
Liquid-tight IP66/IP67
Good flexibility
High mechanical strength
Flame retardent
UV protection
moisture proof
Resistance to most of chemicals, such as oil, acids and vapours, etc.
Good Absorption of motion and vibration
Cover does not winkle when bent
Temperature range from -20oC to +105oC
PVC colour black (standard), grey or orange (made to order)

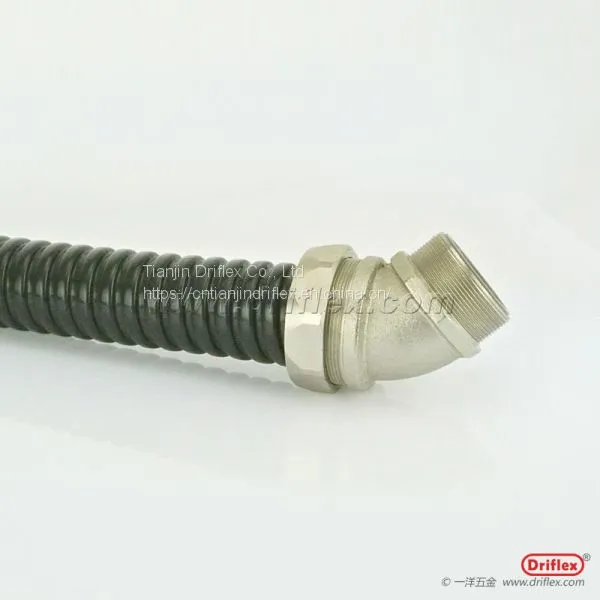

Nickel plated brass fittings

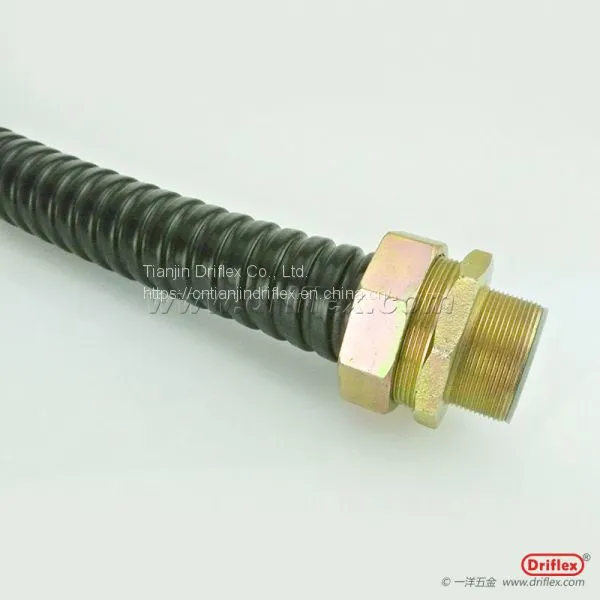

Galvanized malleable iron fittings
Stainless steel fittings
Applications:
General indutrial installations and wire protection
Outdoor installation
Machine tools
Installations where liquid-tight is a requirement
Special Applications:
According to customer's samples and specifications, we can manufacture the LT type flexible conduit to suit special applications, such as wider temperature range, specific chemical resistance, etc.
Specifications:
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| LT-10B/G | 16 | 3/8" | 12.3 - 12.8 | 17.5 - 18.0 | 60 | 30 |
| LT-11B/G | 20 | 1/2" | 15.8 - 16.3 | 20.8 - 21.3 | 80 | 30 |
| LT-12B/G | 25 | 3/4" | 20.7 - 21.2 | 26.2 - 26.7 | 100 | 30 |
| LT-13B/G | 32 | 1" | 26.2 - 26.8 | 32.7 - 33.4 | 150 | 30 |
| LT-14B/G | 40 | 1-1/4" | 34.8 - 35.4 | 41.4 - 42.2 | 180 | 20 |
| LT-15B/G | 50 | 1-1/2" | 40.1 - 40.6 | 47.4 - 48.3 | 200 | 20 |
| LT-16B/G | 63 | 2" | 51.3 - 51.9 | 59.4 - 60.3 | 250 | 15 |
| LT-17B/G | 75 | 2-1/2" | 63.0 - 63.6 | 72.1 - 73.0 | 300 | 10 |
| LT-18B/G | 90 | 3" | 78.0 - 78.7 | 87.9 - 88.9 | 450 | 10 |
| LT-19B/G | 100 | 4" | 101.6 - 102.6 | 113.2 - 114.3 | 600 | 5 |

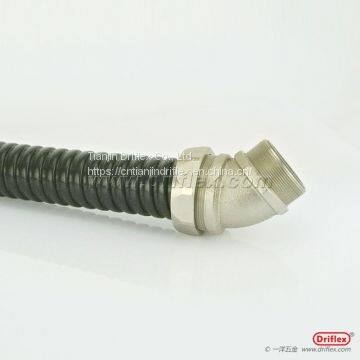

Suitable fittings:
LT type of fittings - IP66/67 (liquid-tight)
