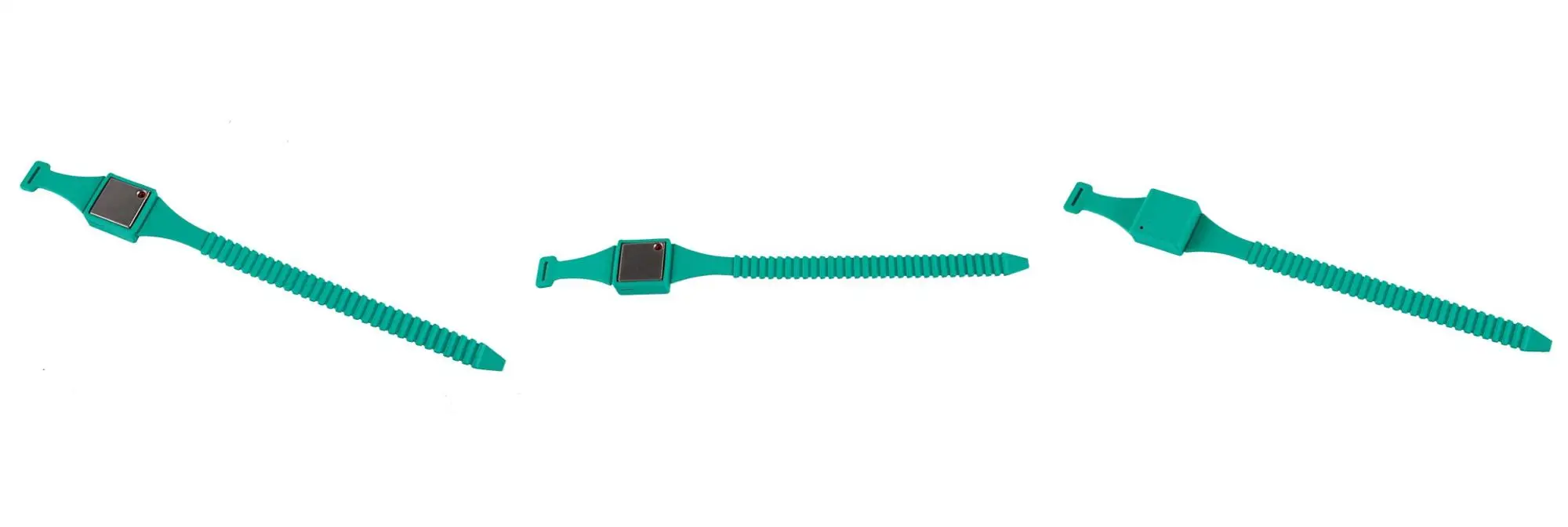

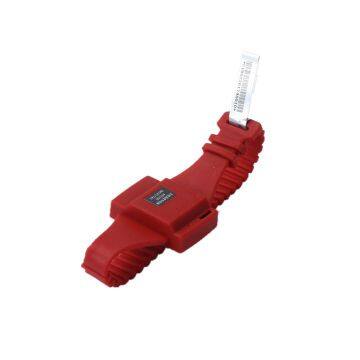

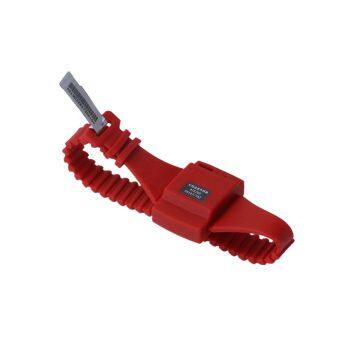

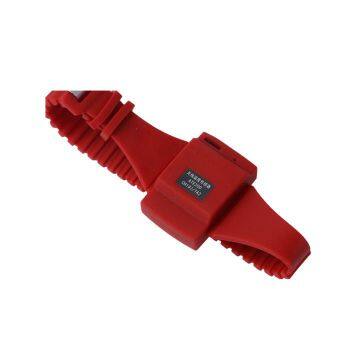

ATE200 LoRa Wireless Bus Bar Temperature Sensor Powered by Battery
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
Southeast Asia
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ATE200 Wireless Temperature Sensor Powered by BatteryNegotiableMOQ: 1 Piece -
Belt Type Wireless Temperature Controller Installed at Electrical Contact and Bus BarNegotiableMOQ: 1 Piece
-
Belt Type Wireless Temperature Sensor Installed at Electrical Contact and Bus Bar for Static Contact Temperature MonitoringNegotiableMOQ: 1 Piece
-
Belt Type Wireless Temperature Sensor Installed at Electrical Contact for Bus Bar Temperature MonitoringNegotiableMOQ: 1 Piece
-
Belt Type Wireless Temperature Sensor Installed at Electrical Contact for Cable Temperature MonitoringNegotiableMOQ: 1 Piece
ATE200 Wireless Temperature Sensor
Product Description
Characteristic
ATE200 wireless temperature sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears,fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.

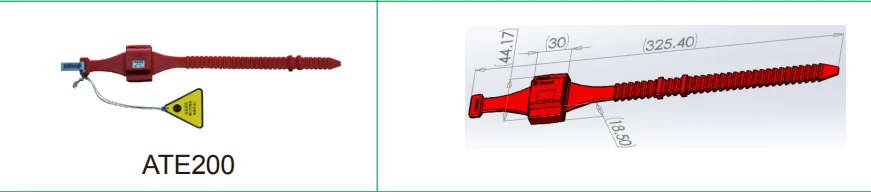

● Wireless frequency: 2.4GHz; ● Dimension: 44.17*325.40mm
● Wireless transmission distance: 10m; ● Installation: Belt
● Fast sampling frequency: 25s; ● Accuracy: ±2℃
● Battery -powered, more than 5 years; ● Temperature measuring range, -40℃~+125℃.
● Wireless transmission distance: 10m; ● Installation: Belt
● Fast sampling frequency: 25s; ● Accuracy: ±2℃
● Battery -powered, more than 5 years; ● Temperature measuring range, -40℃~+125℃.

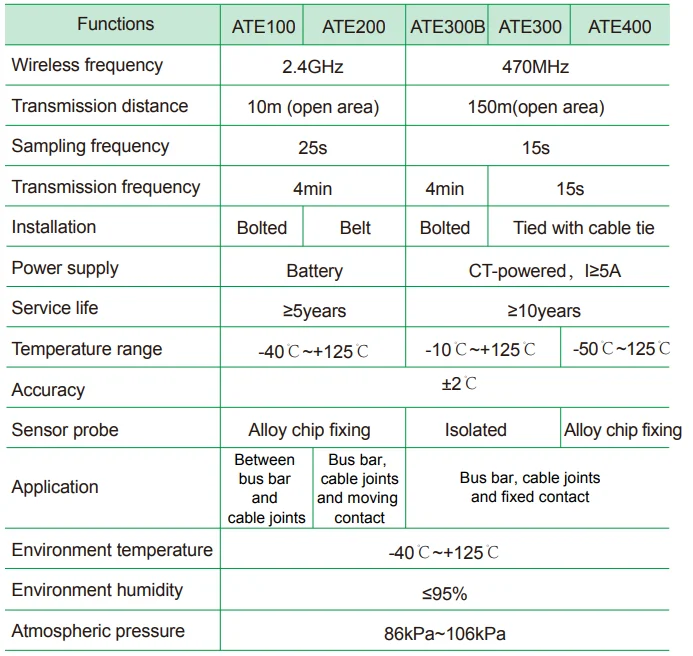

Specification

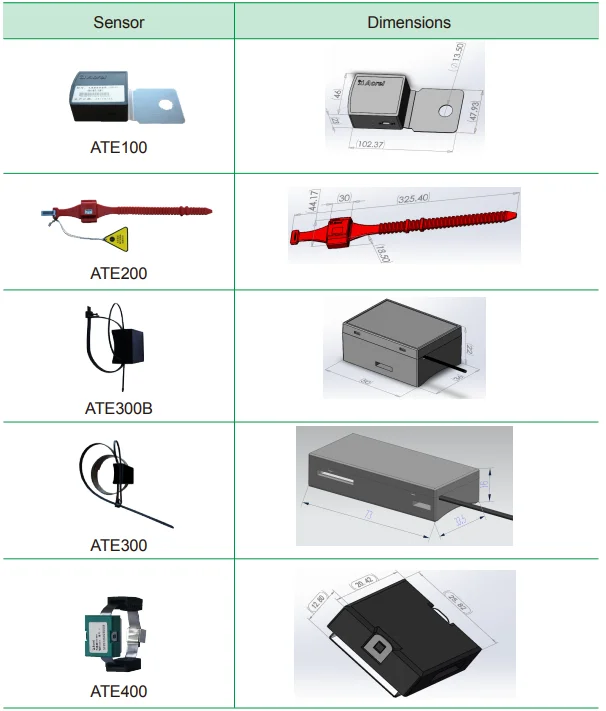

More Type

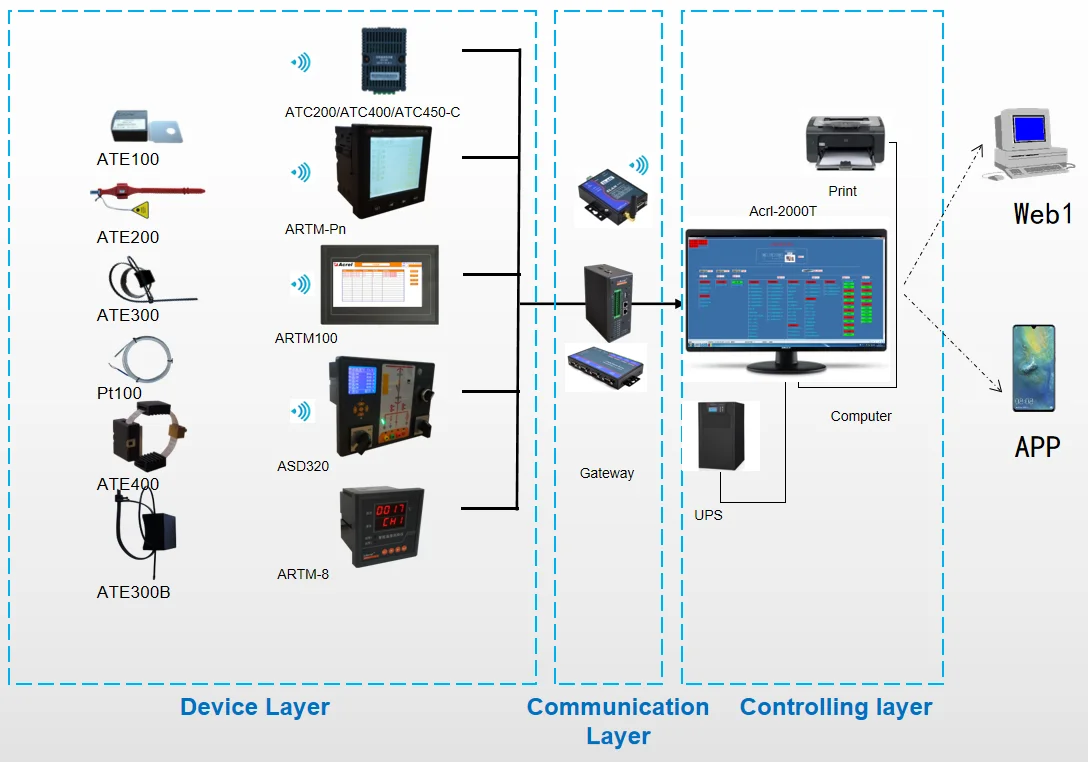

Typical connection

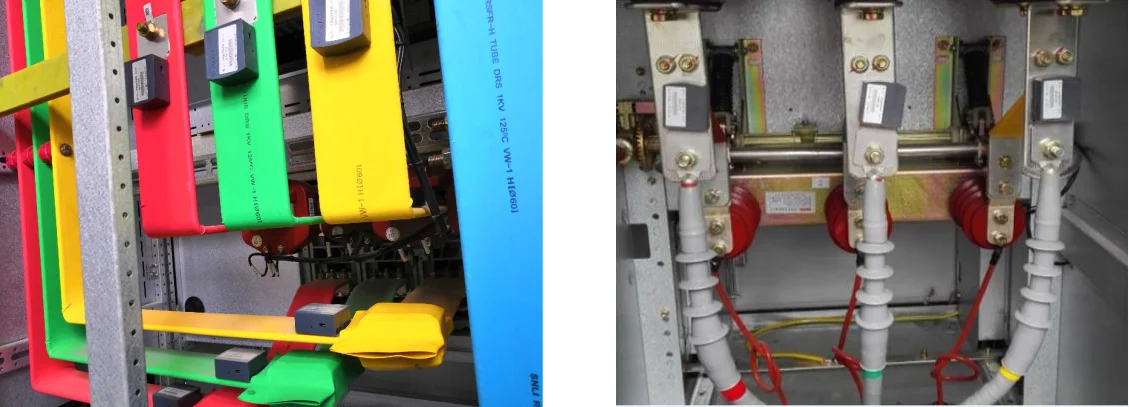

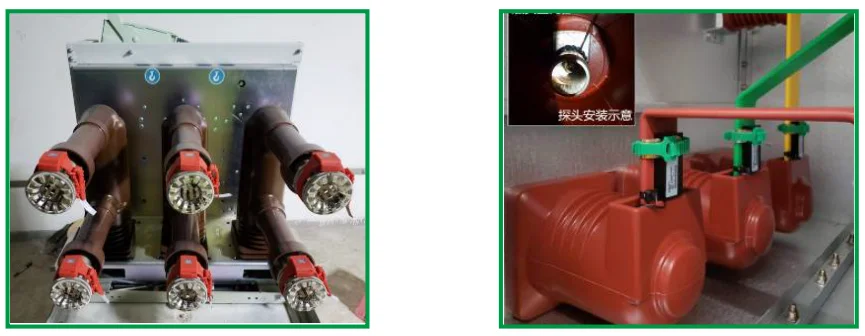

Installation
