ATE100 Bolted Wireless Temperature Sensor Suitable for Outlets of Busbar and Over temperature of Cable

Name: ATE100 Bolted Wireless Temperature Sensor Suitable for Outlets of Busbar and Over temperature of Cable
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 99999 Piece / Pieces per Month

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

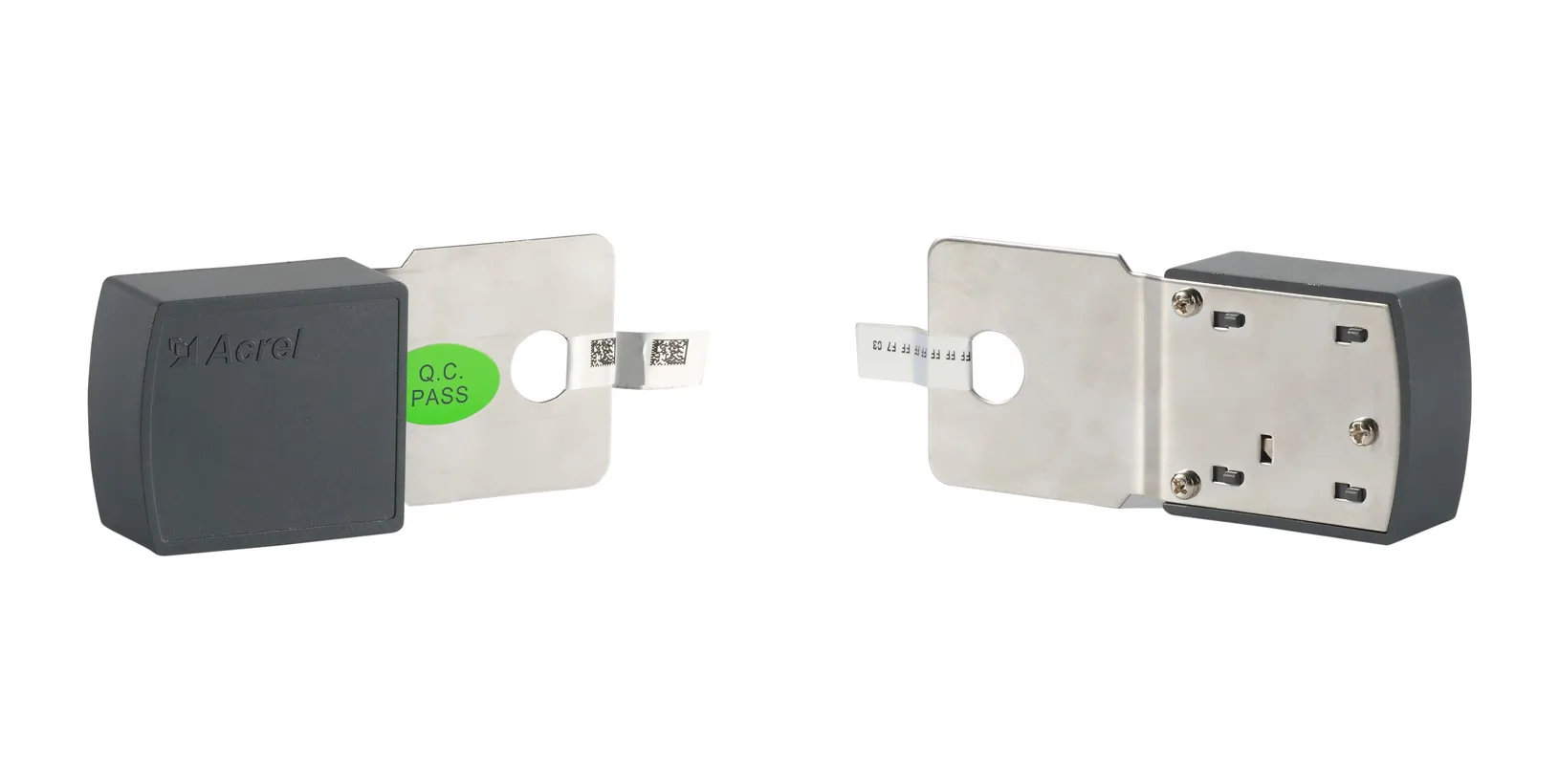

ATE100 Wireless Temperature Sensor

Product Description

Characteristic

ATE100 wireless temperature sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears,fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.

● Wireless transmit,2.4GHz;
● Wireless transmission distance, 10 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.

Installation: Bloted
Dimension(L*W*H): 102.37*47.93*23mm
Aperature: 13.5mm
Accuracy: ±2℃

Specification

Dimensions

Type	Function	FOB Shanghai(USD)
ATE100	Bolted wireless temperature sensor,suitable for the outlet of bus bar and the overlap of cable	42
ATE200	Belt wireless temperature sensor,installed in circuit breaker contacts and bus bar	42
ATE300	Passive wireless temperature sensor	42
ATE400	Tied type passive wireless temperature sensor	42
ATE300B	Bolted type wireless temperature	42

Installation
