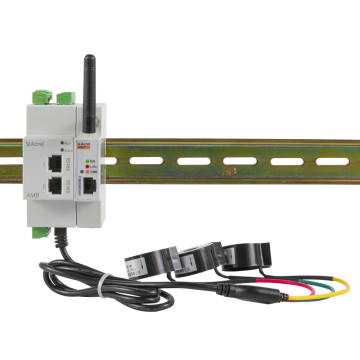

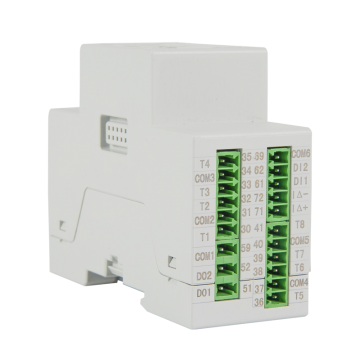

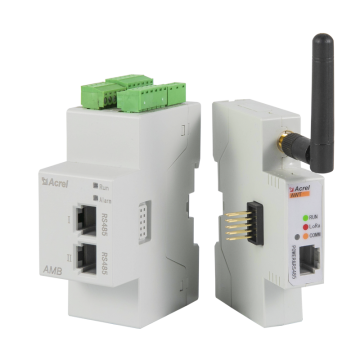

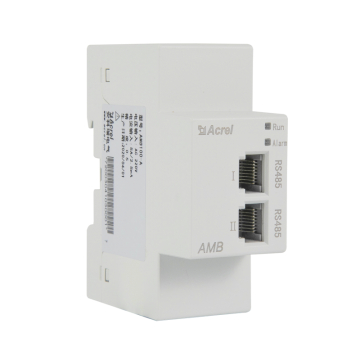

ACREL 3 phase Closed busway system bus bar monitoring power meter with relay output

Name: ACREL 3 phase Closed busway system bus bar monitoring power meter with relay output
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 99999 Piece / Pieces per Month

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

ACREL 3 phase small bus bar monitoring power meter with relay output for data center

AMB smart bus detection unit of connection box is for power intelligent bus demand new design products, the test unit installation fixed inside the plug box, plug box adopts the unique way to the bus it integrated all electric power parameter measurement, such as single phase or three phase current, voltage, active power, reactive power, apparent power, frequency, power factor) and the electric power monitoring and assessment of the comprehensive management. At the same time, it can monitor the temperature of bus interface in real time, and cooperate with the 2-way RJ45 communication interface (1 in 1 out) or LORA wireless communication.
Using modbus-rtu protocol, the monitoring data can be easily and reliably uploaded to the main control box and
background system to ensure the safe and reliable operation of the system. Intelligent bus bar plug box has the advantages of flexible wiring, which can replace the traditional centralized column head cabinet.

Functions and parameters

Functions of AMC16Z-FDK48 multi circuit DC energy power meter

*Measurement:3 phase voltage,current,frequency,active power,reactive power,power factor,active energy,reactive energy
*Rated voltage:AC 220V or 380V

*2-63st harmonics,1 circuit leakage current,8 channel temperature,1 channel humidity,max demand,zero line  current,neutral current, zero ground voltage

*2 channels DI , 2 channels DO
*Communication:1 channel RS485

Model		AMB100A	AMB110A
Measurement parameters		voltage, current, frequency, active power, reactive power, power factor, active power, reactive power
		max demand,zero line current,neutral current, zero ground voltage
		2-63st harmonics
		1 channel leakage current,1 channel humudity
		2 DI 2 DO
		8 channel temperature	4 channel temperature
Voltage	Rated voltage	3x220VAC or 3x380VAC
	Measurement range	±20%
	Overload	Instantaneous voltage 2 times/second
Current	CT	5A/2.5mA	100A/20mA
	Range	1%~120%
	overload	Duration 1.2 times, instantaneous 10 times/second
Input frequency		45～60Hz
Accuracy		Class 0.5:Voltage/current/active power/active energy
		Class 1:reactive power/reactive energy
Auxiliary power supply		Power on by system voltage
Communication		RS485/Modbus-RTU
Optional communication		LoRa communication
Installation		DIN 35mm din rail

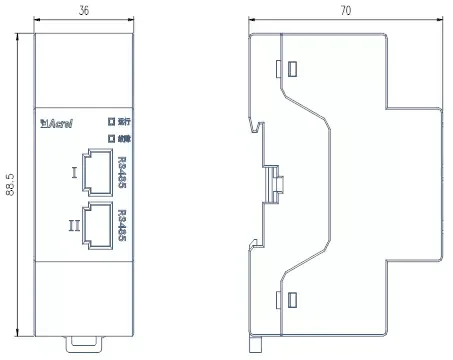

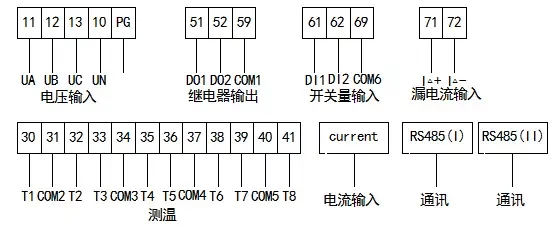

Dimensions and wirings

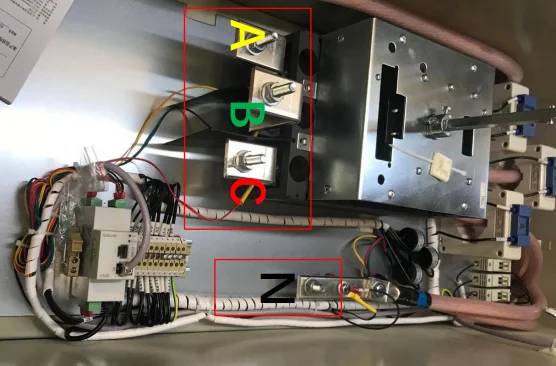

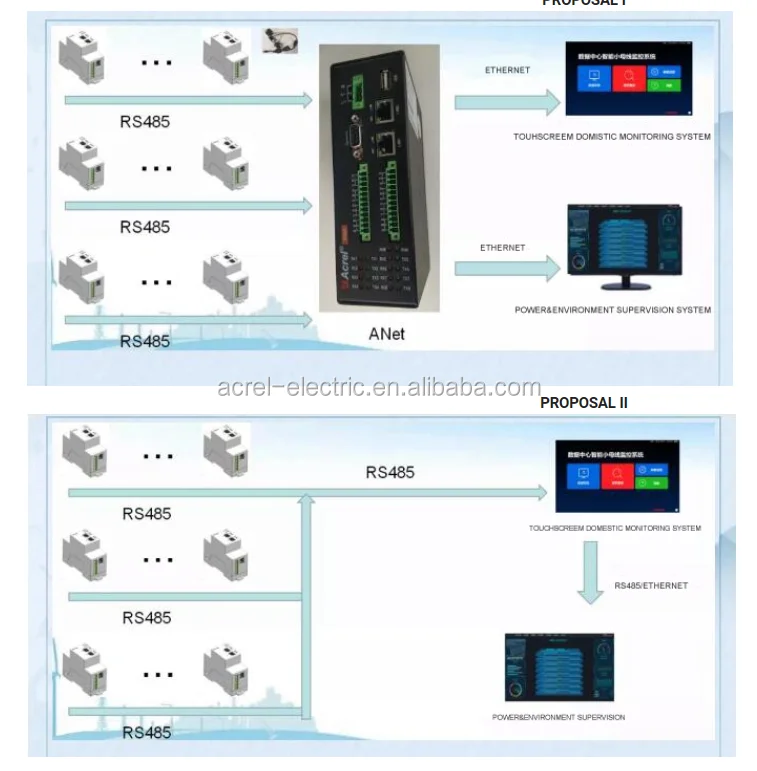

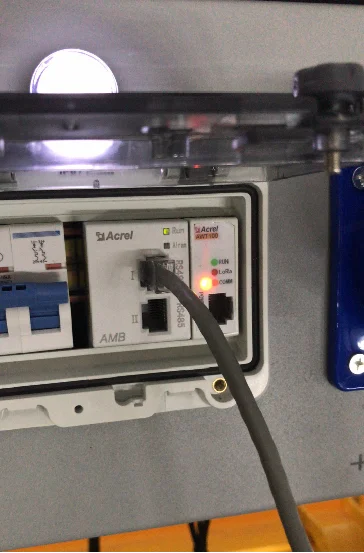

Application
