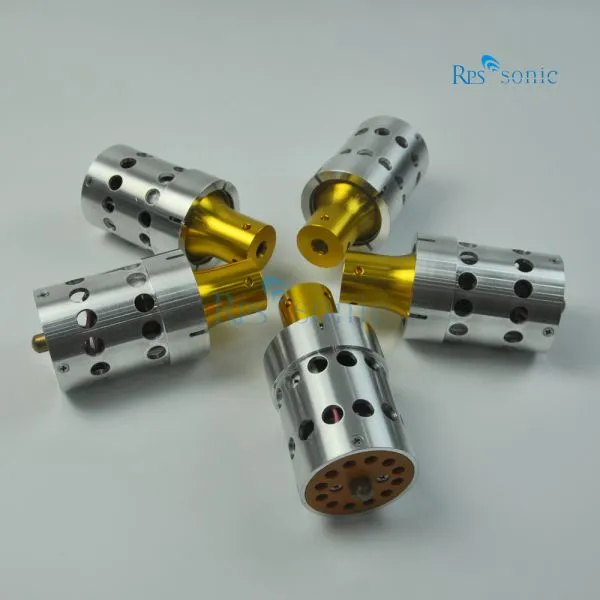

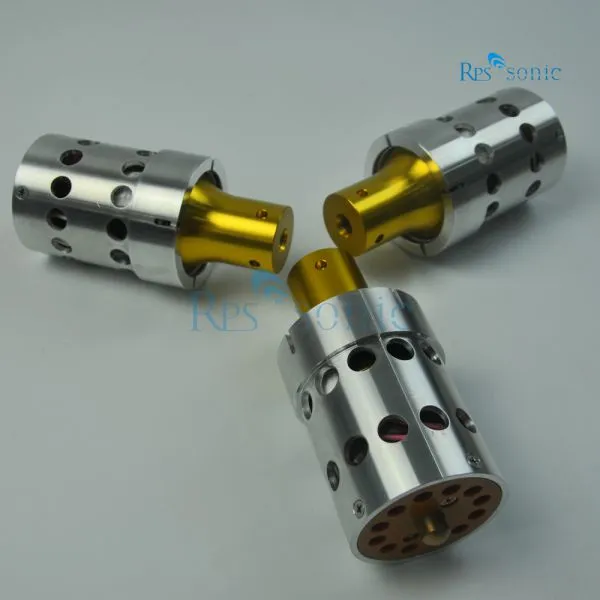

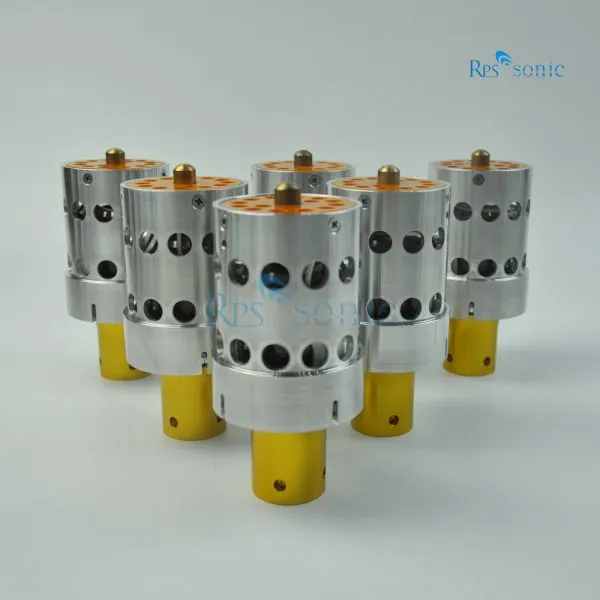

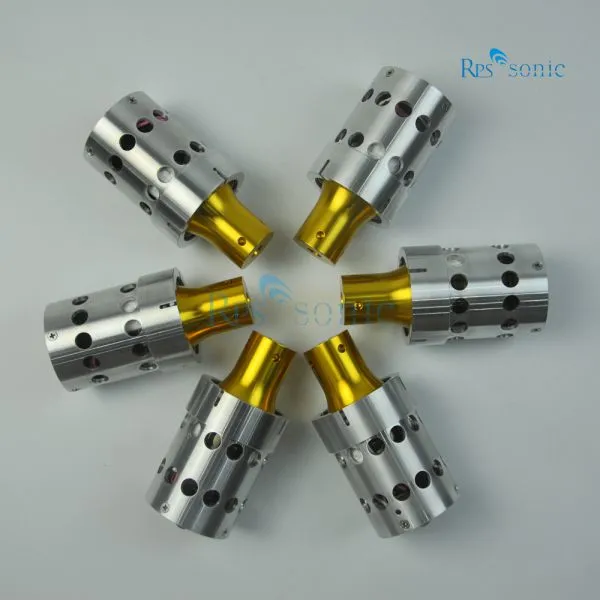

High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing Replacement Dukane 110-3122
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
RPS-SONIC
Place of Origin:
China
Model Number:
TD20-110-3122
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
28k Piezoelectric Ceramic Chip Ultrasonic Welding Transducer In Plastic WeldingUS$ 100 - 1000MOQ: 0 Piece -
28khz Ultrosonic Transducer 800W High Power For WeldingUS$ 100 - 1000MOQ: 0 Piece
-
28k Piezoelectric Ceramic Chip Ultrasonic Welding Transducer In Plastic WeldingUS$ 100 - 1000MOQ: 0 Piece
-
Ultrasonic Transducer 35Khz For Fabric Cutter Or Packing Spot WelderUS$ 100 - 1000MOQ: 5 Pieces
-
Branson Ultrasonic Transducers CJ20 For 2000 2000X Actuator and IW SystemsUS$ 450 - 1000MOQ: 1 Piece
Brand Name
RPS-SONIC
Place of Origin
China
Model Number
TD20-110-3122
Usage
Other, Ultraosnic welding
Theory
Capacitance Sensor
Output
Digital Sensor
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
| Item No | Connect Screw (Size) |
Ceramic diameter (mm) |
Qty of ceramic (PC) |
Frequency(khz) | Resistance(Ω) | Color of ceramic | Capacitance |
Input Power (W) |
| Branson CJ20 | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 3300 |
| Branson 502 | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 3300 |
| Branson 402 | M8*1.25 | 25 | 4 | 39.60 | 10 | Yellow | 4200 | 800 |
| Branson 4TH | M8*1.25 | 25 | 4 | 39.90 | 10 | Yellow | 4200 | 800 |
| Branson 902 | 1/2-20UNF | 40 | 4 | 19.85 | 10 | Yellow | 8000 | 1100 |
| Branson 922J | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 2200 |
| Dukane 40K | M8*1.25 | 35 | 2 | 39.80 | 5 | Gray | 3000 | 800 |
| Dukane 20K | 1/2-20UNF | 50 | 2 | 19.50 | 10 | Yellow | 11000 | 2000 |
| Dukane 110-3122 | 1/2-20UNF | 50 | 4 | 19.50 | 10 | Yellow | 11000 | 2000 |
| Dukane 110-3168 | 1/2-20UNF | 45 | 2 | 19.50 | 10 | Yellow | 4000 | 800 |
| Rinco 35K | M8*1.25 | 25 | 2 | 34.80 | 50 | Yellow | 2000 | 900 |
| Rinco 20K | M16*2 | 50 | 2 | 19.90 | 50 | Yellow | 5000 | 3000 |
| Telsonic 35K | M8*1.25 | 25 | 4 | 35.00 | 5 | Yellow | 4000 | 1200 |
| Telsonic 20K | 1/2-20UNF | 50 | 4 | 20.00 | 3 | Yellow | 10000 | 2500 |
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
