Product Description:
1.Specifications:

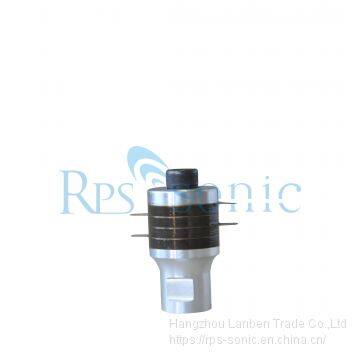

Model | RPS-3535-4D |
Frequency | 35khz |
Output power | 1000w |
Joint bolt | M8*1 |
Ceramic disc Diameter | 35mm |
Quantity of Ceramic discs | 4pcs |
Capacitance | 6.6~10nF |
Voltage | 100V/220V |
Amplitude | 6um |
Application | ultrasonic welding and cutting |
2. Description:
Piezoelectric transducer is the electric charge that accumulates in certain solid materials in response to applied mechanical stress.It is key point of the ultrasonic welding/cutting/sealing/jionting/bonding equipment.
The transducer decide the property of the machine.We can supply transducer,also transducer with house and booster.
We can supply Ultrasonic welding transducer/converter to replace some famous brand,such as Branson/Telsonic/Rinco/Dukane and obtained well reputation.
Now we are developing customize transducer for whole machine company,welcome to inquire OEM transducers
3. Applications:

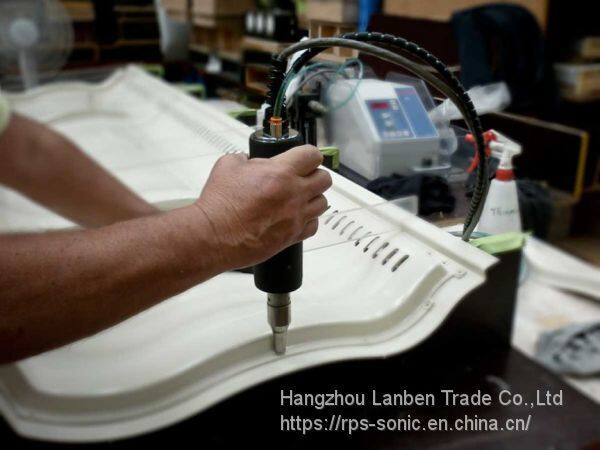

Welding

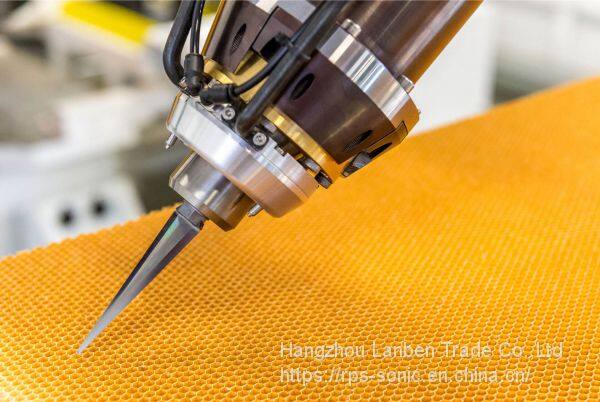

cutting
Nebulizer
4. Competitive Advantage
1. Imported ceramic chip
2. Frequency form 15Khz~70Khz
3. Power from 100W to 800W
4. Titanium,aluminum,steel optional
5. OEM service welcomed
6. One years warranty
