Surge Generator 1.2/50us ,combination Waveform, 6kV, 3kA
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
auto
Place of Origin:
China
Usage:
Auto Testing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Surge Generator 8/20us, 20ka, IEC Standard ComplianceNegotiableMOQ: 1 Set -
Surge Generator 8/20us, 30ka, IEC Standard ComplianceNegotiableMOQ: 1 Set
-
1kV/us Impulse Voltage GeneratorNegotiableMOQ: 1 Set
-
10/350us Lightning Surge Laboratory, From 25kA to 100kANegotiableMOQ: 1 Set
-
8/20us Combine 10/350us Lightning Surge LaboratoryNegotiableMOQ: 1 Set
Brand Name
auto
Place of Origin
China
Usage
Auto Testing Machine
PRODUCT FEATURES:
1.PLC+ touch screen control.
2.Maximum Open-circuit Voltage 10kV.
3.Contactless electronic switch, waveform without clutter.
4.Smooth waveform without burrs.
5.Small size and easy to operate.
CONFIGURATION DESCRIPTION:
1.Power cable
2.Test pen
3.User manual, certificate,
4.Foot switch
5.warranty card

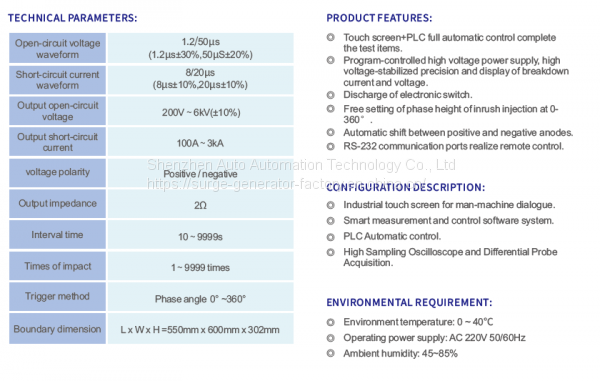

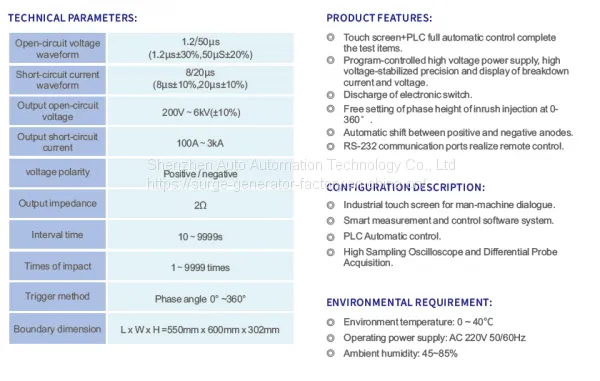

TECHNICAL PARAMETERS:
| AT1183-06 | AT1183-10 | |
| Open-circuit output wavefront | 1.2μs ± 30% | 1.2μs ± 30% |
| Open-circuit output wave tail | 50μs ± 20% | 50μs ± 20% |
| Output voltage | 0.5 ~ 6kV ± 5% | 0.5 ~ 10kV ± 5% |
| voltage polarity | Positive / negative Positive and negative alternation | Positive / negative Positive and negative alternation |
| Operating mode | Manually | Manually |
| Output waveform | Pure voltage wave | Pure voltage wave |
INDUSTRY OBJECT:
Manufacturer of EMC, SPD lightning protection components.
All products can be customized ,pls feel free to contact us !
