Surge Generator 8/20us, 20ka, IEC Standard Compliance
- shenzhen
- T/T
You May Like
Product Details
| Brand Name | Auto | Place of Origin | China | |
| Power | Electronic | Usage | Auto Testing Machine |
Product Description
Our customers :Emerson ,Compton,Nokia,Littelfuse,Bencent ,Ceramate...
PRODUCT FEATURES:
1. Computer +PLC control and automatic control via software operation to complete test.
2. The computer software reads out waveforms of oscilloscope and calculate waveform parameters.
3. The software will save waveform parameters of the tested products, and directly output and print the report forms.
4. Import high-power non-inductive resistance is adopted to ensure the consistent surge waveform .
5. Free setting of phase height of inrush injection at 0- 360 °
6. Built-in current/voltage probe, oscilloscope and software can observe waveform at the same time
7 Rj45 network interface and optional RS-232 communication serial port could realize the remote control.
CONFIGURATION DESCRIPTION:

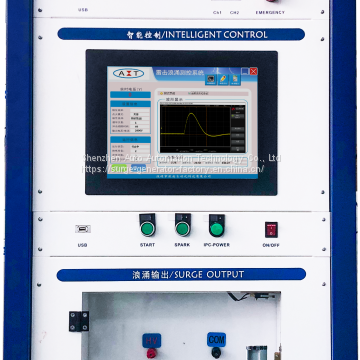

1. Industrial touch screen for man-machine dialogue.
2. Smart measurement and control software system.
3. Safety Entrance Guard Protection in Test Area.
4. High Sampling Oscilloscope and Differential Probe Acquisition.
TECHNICAL PARAMETERS:
TECHNICAL PARAMETERS:
| AT2183-020-G 8/20μs | |
| Short-circuit current waveform | (8μs±20%,20μs±20%) |
| Output short-circuit current | 500A ~ 200kA |
| voltage polarity | Positive / negative Positive and negative alternation |
| Output impedance | 2Ω |
| Interval time | 10 ~ 9999s |
| Times of impact | 1 ~ 9999 times |
| Trigger method | Phase angle 0° ~360° L x 0W x H x= |
| Boundary dimension | 600mm x 80 mm 1800mm |
