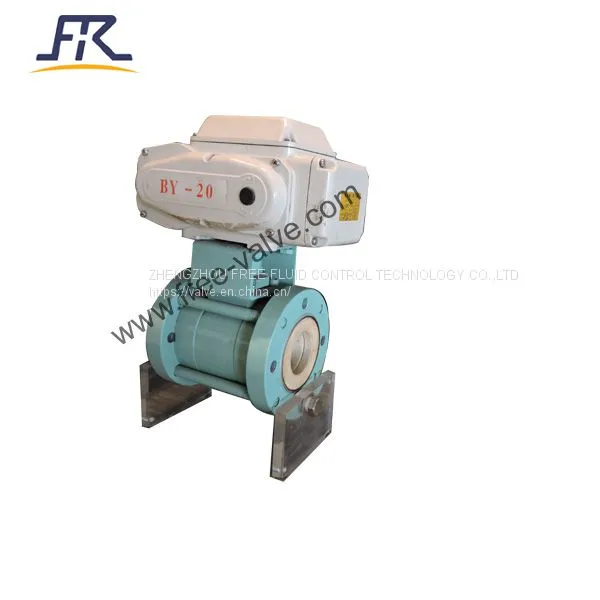

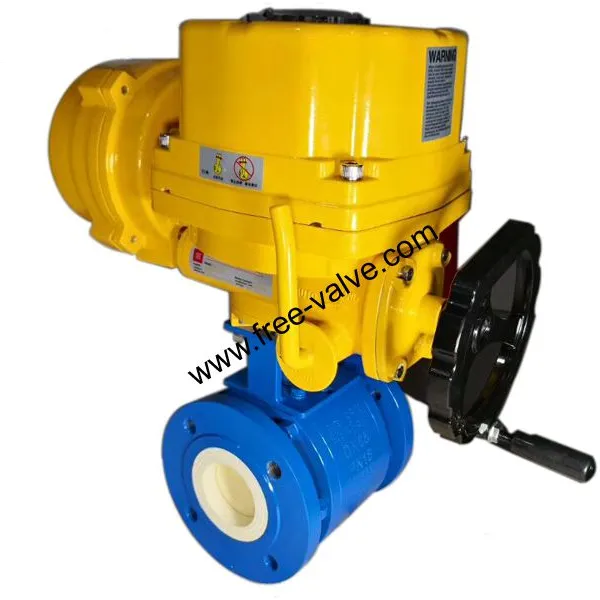

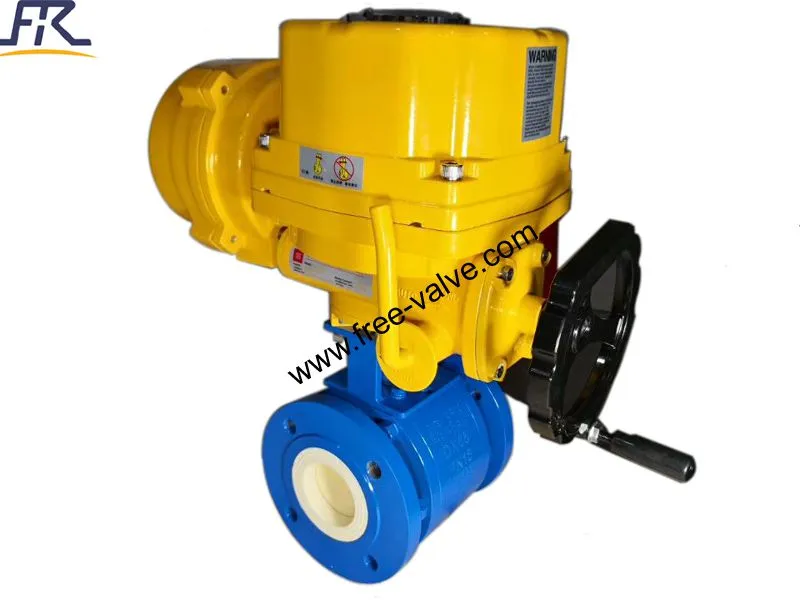

FREE-VALVE brand electric ceramic ball valves are designed with engineering ceramics. The engineering ceramics internal parts provide excellent wear resistance and corrosive resistance , the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids content.
Features:
1.The hardness of the ceramic material can be higher than HRC80.
2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.Electric operated save the cost of man power .
4.Customized V type ceramic control valve is also available.
5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
Technical Specification
Flange Standards ASME B16.5,GB/T9113
Nominal Pressure 1.0MPa,Class150
Size Range :DN50~DN 200, NPS2 ~NPS8
Connection type :Flange
Working Temperature ≤200℃
Operating Type: Electric operated
Sealing surface material:Engineering ceramic
Ball material:Zirconia ceramic
Pressure test GB/T13927, API598
Face to Face GB/T12221, ASME B16.10
Application
FREE-VALVE brand Ceramic Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment.
Model：FRQ941TC
Price terms:FOB,CIF,FCA,CFR
Price:800-20000USD/set
Origin:China
Brand:FREE-VALVE
