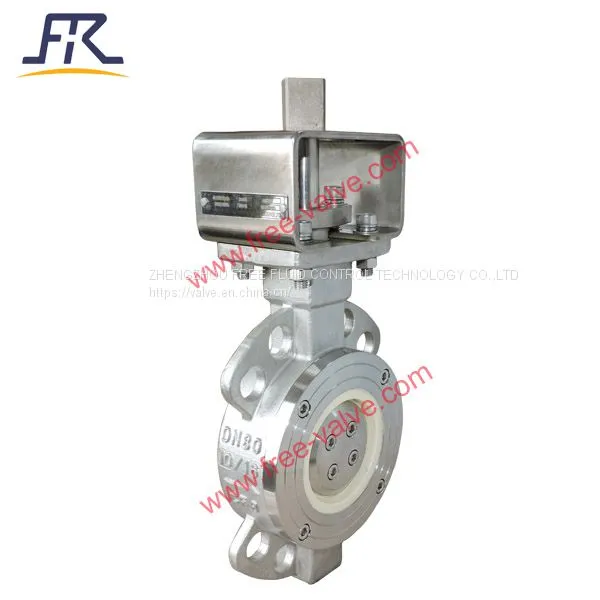

Pneumatic Regulating Control ceramic Sealing SS304 body Butterfly Valve DN80/DN100 for abrasive and corrosive applications

Name: Pneumatic Regulating Control ceramic Sealing SS304 body Butterfly Valve DN80/DN100 for abrasive and corrosive applications
Brand: FREE-VALVE
Price: USD $300 - 1000 / Set

FOB Price

USD $300 - $1000 / Set

2 Sets(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shanghai Port
Payment Terms:T/T L/C D/P D/A
Delivery Detail:25 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	FREE-VALVE	Place of Origin:	China	Model Number:	FRD72TC
Material:	Casting	Structure:	Butterfly	Standard or Nonstandard:	Standard
Pressure:	Medium Pressure	Power:	Manual	Port Size:	DN50-DN350
Media:	Other, Abrasive medium	Temperature of Media:	Medium Temperature

Packaging Details

Ply-Wooden Box

Product Description

FREE-VALVE’s Pneumatic Regulating Control ceramic Sealing SS304 body Butterfly Valves were operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control valves. The ceramic materials are applied to the most common problem areas within disc of butterfly valve.These ceramic materials are 6-8 times harder than stainless steels and the result is a control valve that functions properly in a harsh, abrasive service environment.

Features

1.Wafer type ceramic butterfly valves are light and easy to install.

2.The disc sealing ring and seat are both high performance ceramics. High pure 99% Alumina, Zirconia and solid Tungsten carbide are used for wafer type ceramic butterfly valves. Different ceramics materials are suitable for different applications.

3.Body materials are selected on different applications.

4.Ceramics are nearly universally chemical resistant.

5.Much longer service life than any other common butterfly valves, and save maintenance cost for customers,due to high hardness and excellent corrosion resistance of high performance ceramics.

6.It has the inherent characteristic of the adjustable performance of butterfly valve.

7.The ceramic lined butterfly valve could work as control valve ,its ceramic sealing surface could stand medium washing .

Technical Specification:

1) Size Range: NPS2~NPS12,DN50~DN300

2) Pressure Range:PN6-PN25

3) Applicable Temperature: 0~200℃

4) Connection Type: Flange,wafer

5) Sealing material: Engineering ceramics

6) Body material:WCB,CF8,CF8M,CF3,CF3M

7) Pressure test:GB/T13927, API598

8) Face to Face: GB/T12221, API609,ASME B16.10

9) Valve body : GB/T12224,ASME B16.34

Operating Type: Pneumatic/manual

Application:

FREE-VALVE’s Pneumatic Regulating Control ceramic Sealing SS304 body Butterfly Valves are suitable for all types of abrasive slurry including bauxite, Mining slag,Coal washing ,Ash Slurry, Ash,Grain,Quartz Sand,Metallurgical dust,paper plant ,etc

Price terms:FOB,CIF,FCA,CFR

Price:500-5000USD/set

Payment terms:TT,LC

Origin:China

Delivery time:30 days

Model:FRD342TC

Email&skype :sales@free-valve.com

Wechat:FreeValve

Company Profile

ZHENGZHOU FREE FLUID CONTROL TECHNOLOGY CO.,LTD

ZHENGZHOU FREE FLUID CONTROL TECHNOLOTY CO.,LTD specialized in manufacturing all kinds of high, medium and low pressure fluid control complete sets of flow control equipment, have over than 30 years industrial valve working experience .

The company has a young and energetic, the courage to open up the sales team, to take the advanced mode of operation, all-round attack, built a domestic and two international sales network, to establish and implement a marketing strategy "for customers to create value-added". FREE VALVE sales team to use the call center and e-commerce system to build a brand new marketing system, after-sales service also goes beyond the simple maintenance, warranty concept, to provide technical support to meet the user saving energy has become the core of the idea of selling.

The Board of Directors introduced a team of professional managers, and standardized management in accordance with the requirements of modern enterprise system. The company invested over 300 million, the establishment of a comprehensive area of municipal technology centers and science and technology personnel, and create a good research and living conditions for the introduction of high-level personnel, to increase the talent introduction and employee skills training efforts.

Today, in the Central Plains economic rise on the journey, FREE VALVE yesterday's success as into the starting line of the listed companies; fight dare to win FREE VALVE people is the full cast century corporate brand, in order to demonstrate the charm of oriental culture, and write FREE history a new chapter in triumph!
