MPS-3605LP Matrix Programmable Single Channel DC Power Supply

MPS-3605LP Matrix Programmable Single Channel DC Power Supply thumbnail-1
MPS-3605LP Matrix Programmable Single Channel DC Power Supply thumbnail-2
MPS-3605LP Matrix Programmable Single Channel DC Power Supply photo-1

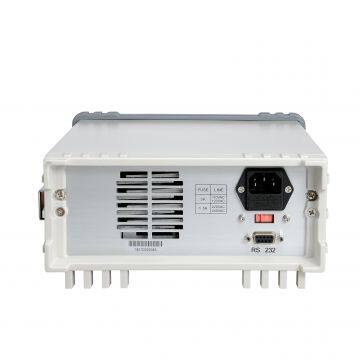

MPS-3605LP Matrix Programmable Single Channel DC Power Supply photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MATRIX
Place of Origin:
China
Model Number:
MPS-3605LP
Contact Supplier Request Quote Chat Now
Matrix Technology Inc.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MATRIX
Place of Origin China
Model Number MPS-3605LP
Output Current 0-5A
Output Voltage 0-36V
Input Voltage 110V/220V
Programmable Single-Channel DC Power Supply

  • Features

  •

  • The digital keyboard and knob adjust the voltage and current in two ways

  • Voltage 10mV, Current 1mA resolution

  • 9 groups voltage current storage call function

  • The upper and lower limits of current setting function bring alarm

  • Stylish and small, affordable and cost-effective

  • Linear power supply, low ripple and noise

  • Standard computer interface RS-232

model MPS-3603LP MPS-3605LP MPS-3610LP MPS-6003LP MPS-6005LP
Rated output voltage 0-36V 0-36V 0-36V 0-60V 0-60V
Rated output current 0-3A 0-5A 0-10A 0-3A 0-5A
Rated output power 108W 180W 360W 180W 300W
Load regulation Voltage 0.05% + 5mV 0.05% + 8mV 0.05% + 10mV 0.05% + 5mV 0.05% + 8mV
Electric current 0.1% + 5mA 0.1% + 5mA 0.1% + 8mA 0.1% + 5mA 0.1% + 5mA
Power regulation Voltage 0.05% + 5mV 0.05% + 8mV 0.05% + 10mV 0.05% + 5mV 0.05% + 8mV
Electric current 0.1% + 5mA 0.1% + 5mA 0.1% + 8mA 0.1% + 5mA 0.1% + 5mA
Set resolution Voltage 10mV 10mV 10mV 10mV 10mV
Electric current 1mA 1mA 1mA 1mA 1mA
Readback resolution Voltage 10mV 10mV 10mV 10mV 10mV
Electric current 1mA 1mA 1mA 1mA 1mA
Setting accuracy
(25 ° C ± 5 ° C)		 Voltage ≤0.1% + 2 bytes ≤0.1% + 2 bytes ≤0.1% + 2 bytes ≤0.1% + 2 bytes ≤0.1% + 2 bytes
Electric current ≤0.2% + 3 bytes ≤0.2% + 3 bytes ≤0.2% + 3 bytes ≤0.2% + 3 bytes ≤0.2% + 3 bytes
Readback accuracy
(25 ° C ± 5 ° C)		 Voltage ≤0.1% + 2 bytes ≤0.1% + 2 bytes ≤0.1% + 2 bytes ≤0.1% + 2 bytes ≤0.1% + 2 bytes
Electric current ≤0.2% + 3 bytes ≤0.2% + 3 bytes ≤0.2% + 3 bytes ≤0.2% + 3 bytes ≤0.2% + 3 bytes
Ripple and noise
(25 ° C ± 5 ° C)		 Voltage 1mVrms 1.5mVrms 2mVrms 2mVrms 2mVrms
Electric current 3mArms 3mArms 6mArms 3mArms 3mArms
Temperature Coefficient Voltage 300ppm 300ppm 300ppm 300ppm 300ppm
Electric current 300ppm 300ppm 300ppm 300ppm 300ppm
Bare metal size mm 215 * 95 * 300 215 * 95 * 300 215 * 95 * 355 215 * 95 * 355 215 * 95 * 355
Packing size mm 310 * 200 * 420 310 * 200 * 420 310 * 200 * 485 310 * 200 * 485 310 * 200 * 485
net weight kg 4.5 6.7 7.5 5.6 7
Gross weight kg 5.6 7.8 8.6 6.7 8


Product Tags: programmable , programmable power supply , DC , power supply , bench power supply , vairable power supply , test and measurement , test equipment , laboratory power supply
