Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > MPS-3206 32V 6A MATRIX DC Switching Power Supply

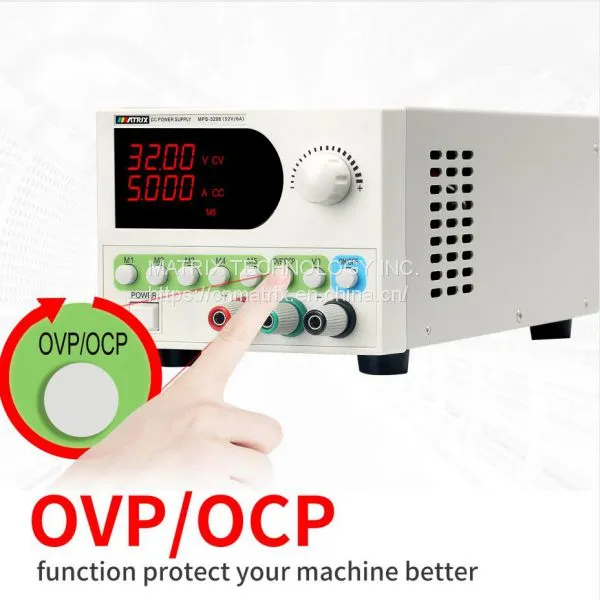

MPS-3206 32V 6A MATRIX DC Switching Power Supply
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MATRIX
Place of Origin:
China
Model Number:
MPS-3206
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MPS-3005D+ 30V 5A Matrix Single Channel Linear DC Power SupplyNegotiableMOQ: 1 Piece -
MPS-3605LP Matrix Programmable Single Channel DC Power SupplyNegotiableMOQ: 1 Piece
-
MPS-3003L-3/ 3005-3L-3 30V 3A, 30V 5A Matrix Tri-Channel Linear DC Power SupplyNegotiableMOQ: 1 Piece
-
MPS-3005H-3 Triple Channle Linear DC Power Supply 4 Digits DisplayNegotiableMOQ: 1 Piece
-
MPS-3003H-3 Triple Channle Linear DC Power Supply 4 Digits DisplayNegotiableMOQ: 1 Piece
Brand Name
MATRIX
Place of Origin
China
Model Number
MPS-3206
Output Power
101 - 200W
Output Type
Single
Output Current
0-6A
Output Voltage
0-32V
Input Voltage
Other, 110V, 220V
Features:
1.OVP and OCP to ensure the safety, smart fan, unique air duct design keeps normal temperature for long time full load working with low noise.
2. Pure copper terminal makes good conduction, have better performance.110V/220V Input voltage switching.
3. 4 Digits Readings LED Display and 10mV and 1mA resolution,5 groups of parameter storage, coding switch to avoid casual touch.
4. Easy to adjust voltage and curent through the knob, and we added an output button to prevent accidental touch.
5. 24 hours continuous operation, with high stability, suitable for a variety of working environments.
model MPS-3206 Rated output voltage 0-32V Rated output current 0-6A Load regulation Voltage 0.1% + 5mV Electric current 0.2% + 3mA Power regulation Voltage 0.01% + 5mV Electric current 0.2% + 3mA Set accuracy Voltage ≤0.1% + 1 byte Electric current ≤0.2% + 3mA Readback accuracy Voltage ≤0.1% + 1 byte Electric current ≤0.2% + 3 bytes Readback resolution Voltage 10mV Electric current 1mA Ripple Voltage 10mVrms Electric current 5mArms OVP 0-32V ± 0.2% FS Maximum voltage 32V ± 0.2% OCP 0-6.1A ± 0.2% FS Maximum current 6.1A ± 0.2% temperature Operating environment 0 ~ 40 ° C≤80RH Storage environment -15 ~ 70 ° C≤80RH Bare metal size mm 219 * 95 * 300 Packing size mm 310 * 200 * 420 net weight kg 4.5 Gross weight kg
