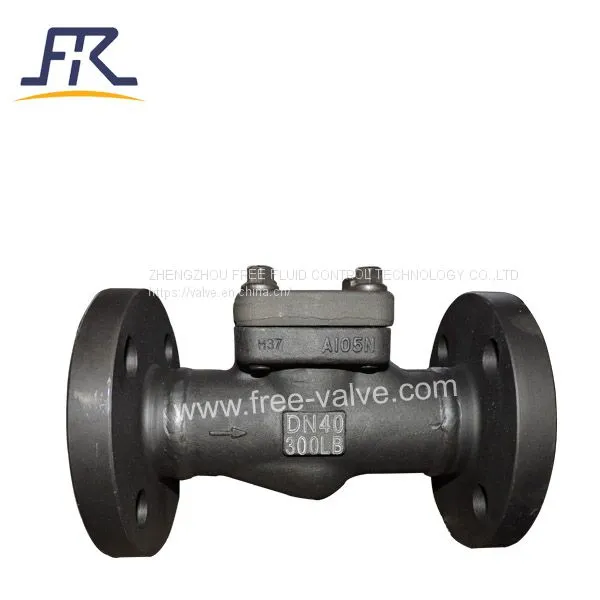

FREE-VALVE’s Forged Steel Non Return Check Valve refers to the valve disc automatically open and close the valve disc relying on the flow of the medium , used to prevent media from flowing backwards, also known as the reverse check valve, one-way valve, silent check countercurrent valve.It is compact, sturdy and ideal for high pressure and high temperature applications.
Features
1. Forged steel check valve have the advantages of more uniform structure, greater density, higher strength integrity,so that the Forged steel check valves are applicable for high pressure and high temperature working conditions.
2. Bolted bonnet or welded bonnet design.
3. Piston type body guide disc.
4. Forged check valves can be full port or reduced port .
Technical Specification
1. Design standard:API 602, ASME B16.34
2. Pressure Range:150LB to 1500LB
3. Size Range:1/4" to 2"
4. Material:A105,F22,F11,F304,F316
5. Connection type:Flanged ends, Socket Weld End,Screwed End, Butt-weld end
6. Working Temperature:≤425°C
7. Sealing surface material:Alloy
8. Pressure test:GB/T13927, API598
9. Face to Face:GB/T12221,ASME B16.10
Application
FREE-VALVE’s Forged Steel Non Return Check Valve are ideal for downstream applications and critical power-industry applications,its offer high performance, reliability and safety. The check valves are especially suitable for high pressure and high temperature application in steam, oil and gas processing, power industries, in chemical and petrochemical industries.
Model:FRH41Y
Price:100-1000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
