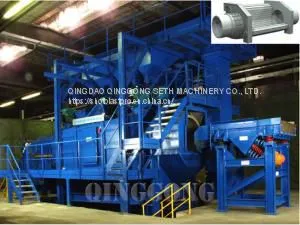

CONTINUOUS TUMBLE PASS-THRU SHOT BLAST MACHINE

The through-feed blast cleaning process offers a number of distinct advantages and ensures efficient and cost-effective blast cleaning. Continuous tumble shot blasting machines automate production sequences and improve the work environment. Workpiece dwell-time and abrasive throughput rates are controlled by the volume of castings. This results in the best possible cleaning effect and minimal wear on machine components and abrasive. Automatic adaptation to production rate is a standard feature.

Continuous Tumble Pass-Thru Shot Blasting Machine Basic Specifications

In order to greatly convenient the tumble of the workpieces, the equipment adopts the new patented technology of four-axis structure.

The thumb last belt adjustment uses the automatic cylinder tension device.

The tumble belt rotates speed is adjustable by a frequency inverter, which is adjusted according to the different workpieces actual conditions.

The belt is composed by the thickness of 20mm high manganese plate, the holes on the belt are cut by water jet cutter in order to prevent the deformation, the chainring adopted a unique structure so as to let the spattered blasting media drop into the abrasive reclaim system.

Loading and unloading of workpieces

The loading/unloading oscillating screen is to load

and unload workpieces into the blasting unit.

The loading capacity of the equipment is no more

than 200kg which is also a continuous type.

It is aimed for the conveying of the workpieces and

separating the big contaminants from the workpieces

Tumble belt rolling drum liner

The tumble belt rolling drum liner adopt high manganese steel plate, the rotation of the drum use the heavy-duty bearings to ensure the stability and durability of usage. The holes in the drum are cut by water jet cutter in order to convenient the abrasive reclaim.

Application
