Acrel ANAPF 50A Harmonic Active Power Filter

Jiangsu Acrel Electrical Manufacturing Co.,LTD.
Acrel ANAPF 50A Harmonic Active Power Filter thumbnail-1
Acrel ANAPF 50A Harmonic Active Power Filter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
Southeast Asia
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

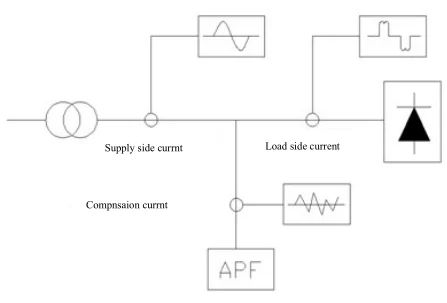

1 Working principle
The Acrel® Active Power Filter ( APF ) is connected in parallel with the loads.A current generator (power unit) that converts the control signals generated by the filter controller into the filter compensation current. A filter controller that determines the anti-harmonic current to be injected based on the line current measurements and the user’s requirements. The line current measurements are obtained from current transformers (CTs) . The user enters his requirements by means of the user interface.

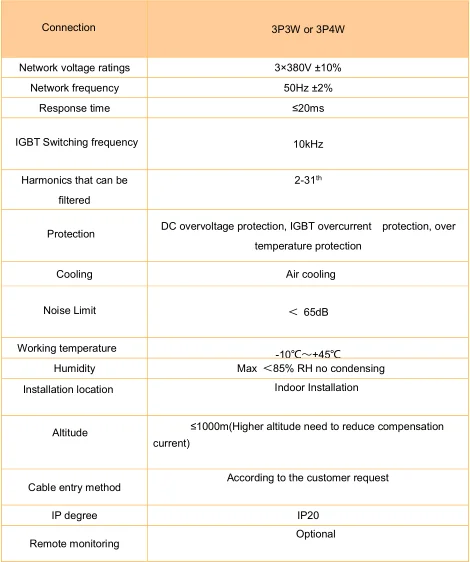

2 Technical Specifications

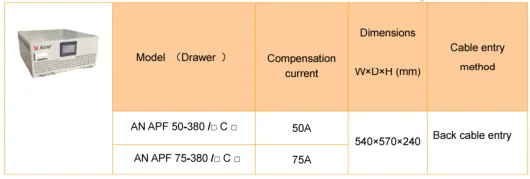

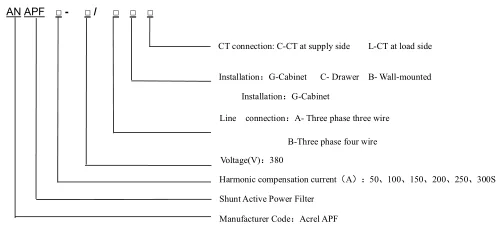

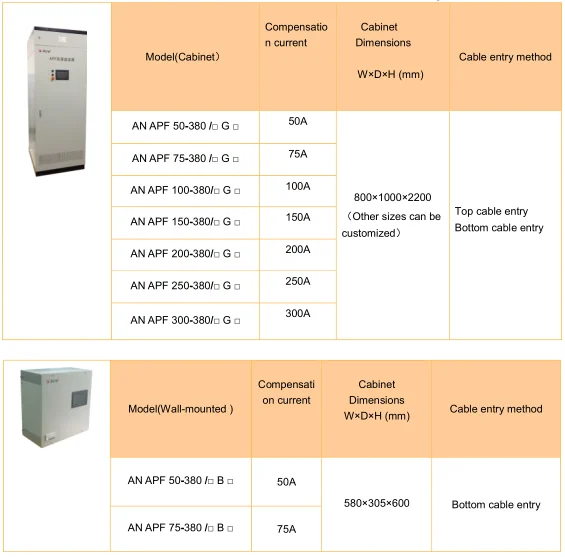

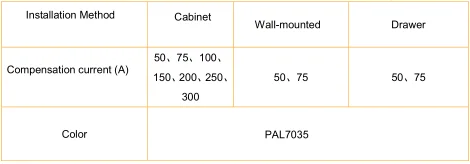

3 Model description

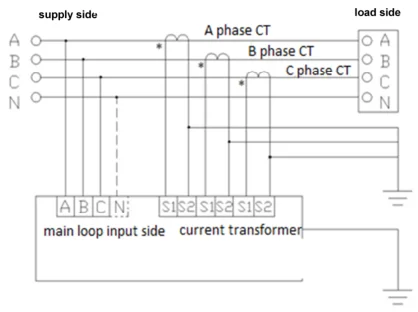

4 ANAPF connection diagram


Product Tags: active harmonic filter , active power filter , AHF
