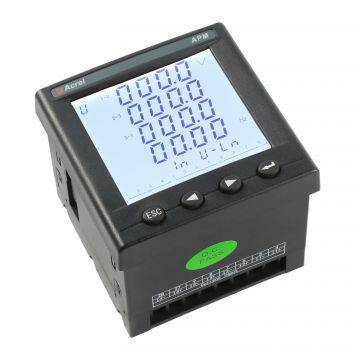

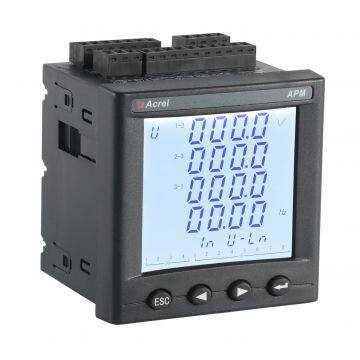

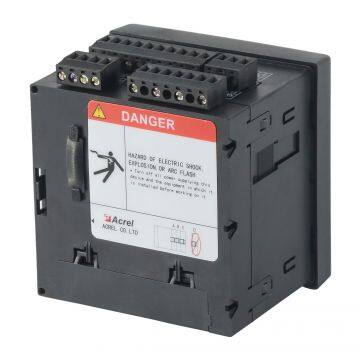

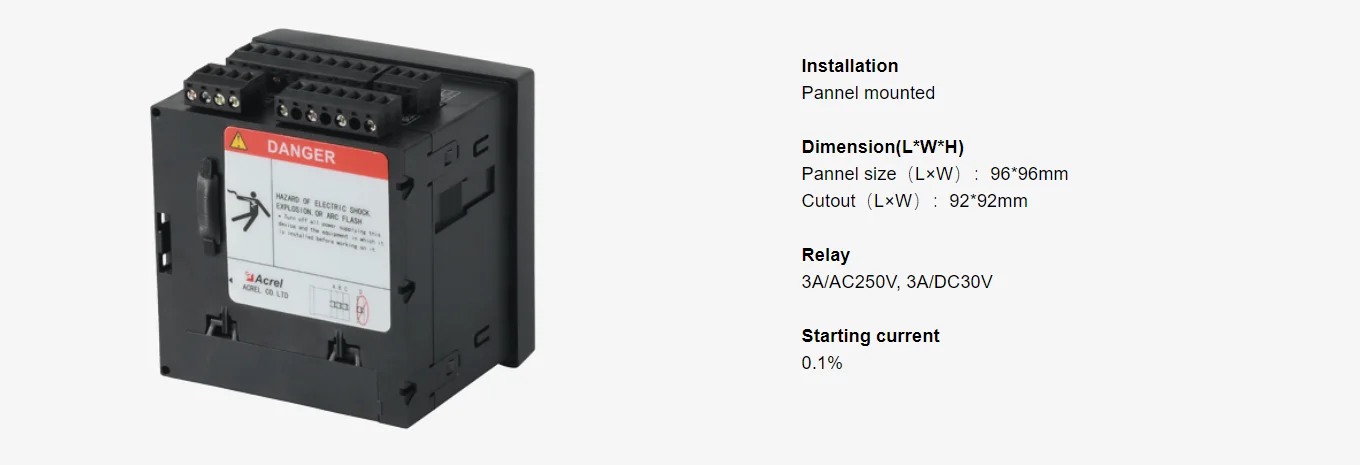

Acrel Hot Sale Network Communications Multifunction Meter APM800
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
Southeast Asia
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel Cheap Factory Price Energy Statistics Multifunction Meter APM800NegotiableMOQ: 1 Piece -
Acrel Factory Hot Sale Analysis of Power Quality Multifunction Meter APM800NegotiableMOQ: 1 Piece
-
Acrel Full Power Electrical Parameters Measurement Multifunction Meter APM800NegotiableMOQ: 1 Piece
-
Acrel Ethernet(Modbus-TCP,HTTP,DHCP) Multifunction Meter APM800/MCENegotiableMOQ: 1 Piece
-
Acrel Factory Direct Alarms and SOE Logs Multifunction Meter APM800/MCM 2 Channel RS485NegotiableMOQ: 1 Piece
APM810 Multifunction Meter

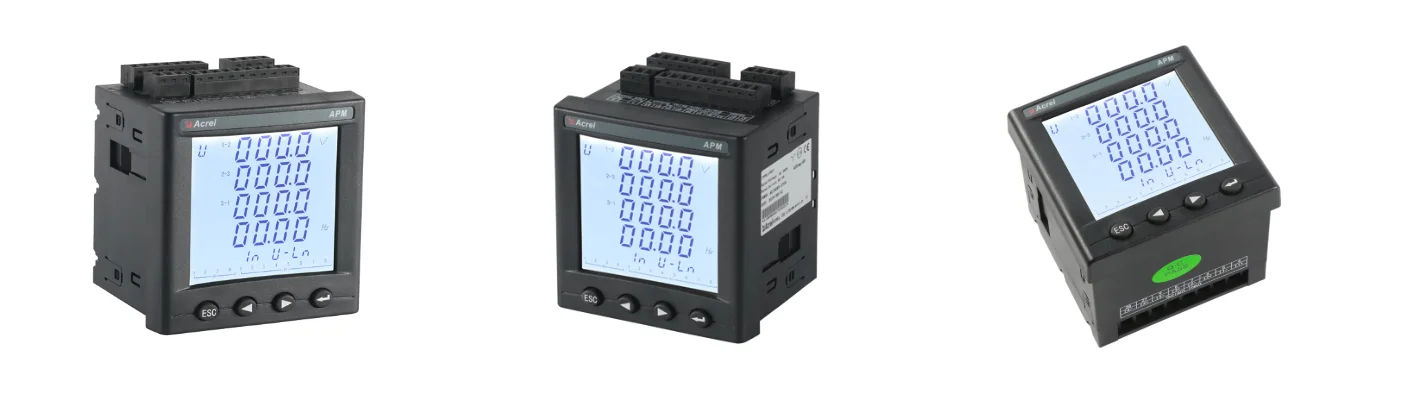

General
The APM series meters are suited for measuring and displaying electrical quantities of electricity networks. The accuracy ofactive energy measurements corresponds to class 0.5S in accordance with the requirements of IEC62053-22. The APM series meters offers many high-performance capabilities needed to meter and monitor an electrical installation in a compact 96 x 96 mm unit. All models include an RS-485 Modbus communication port, two digital input, two digital output, and alarming on critical conditions.The model of APM810 is able to perform current/voltage harmonics for assessment of the power quality. In addition the model ofAPM801 can offer the active energy accuracy up to class 0.2S. Expand any model with field-installable option modules that offer achoice of additional digital inputs and outputs, analogue inputs and outputs, and Ethernet port.
Features
● True RMS Measurements
● THD with 63rd Harmonics
● K-Factor and Crest Factor
● Unbalance & Phase Angles
● Demands and Multi-Tariff energy
● Max/Min Log with Timestamp
● THD with 63rd Harmonics
● K-Factor and Crest Factor
● Unbalance & Phase Angles
● Demands and Multi-Tariff energy
● Max/Min Log with Timestamp

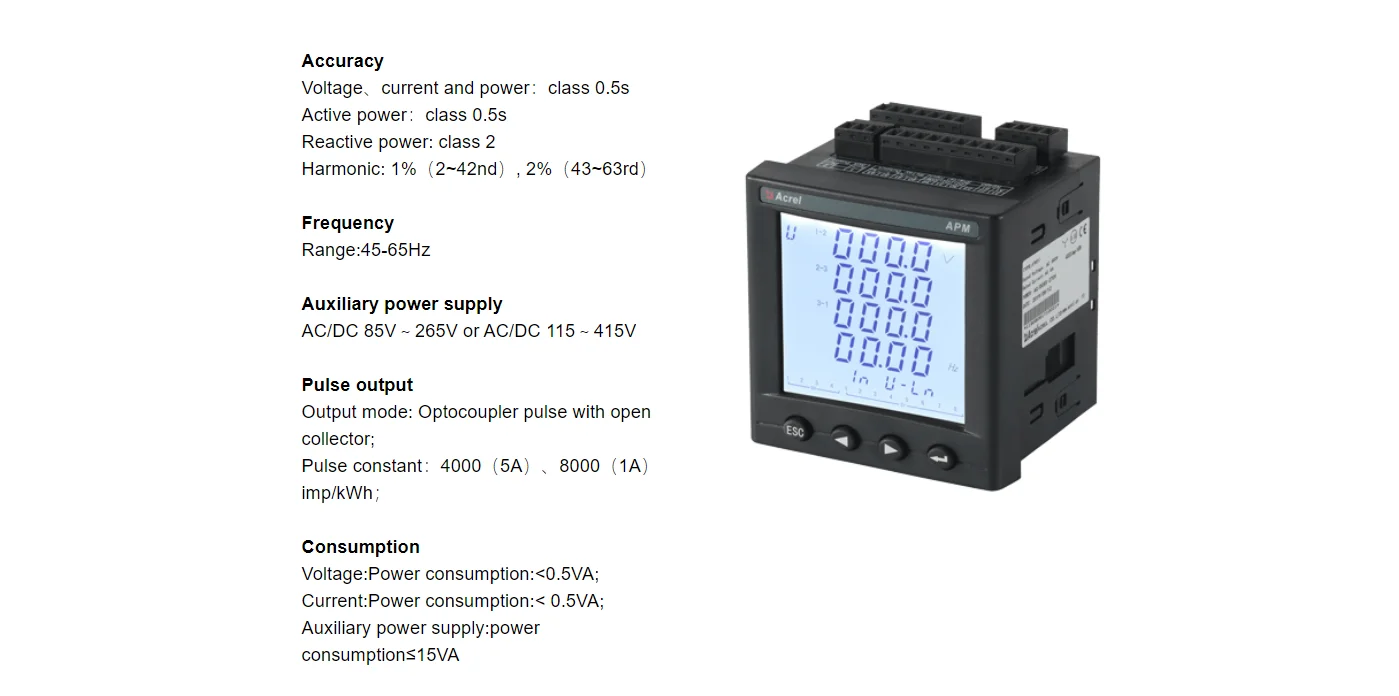

Technical Parameters

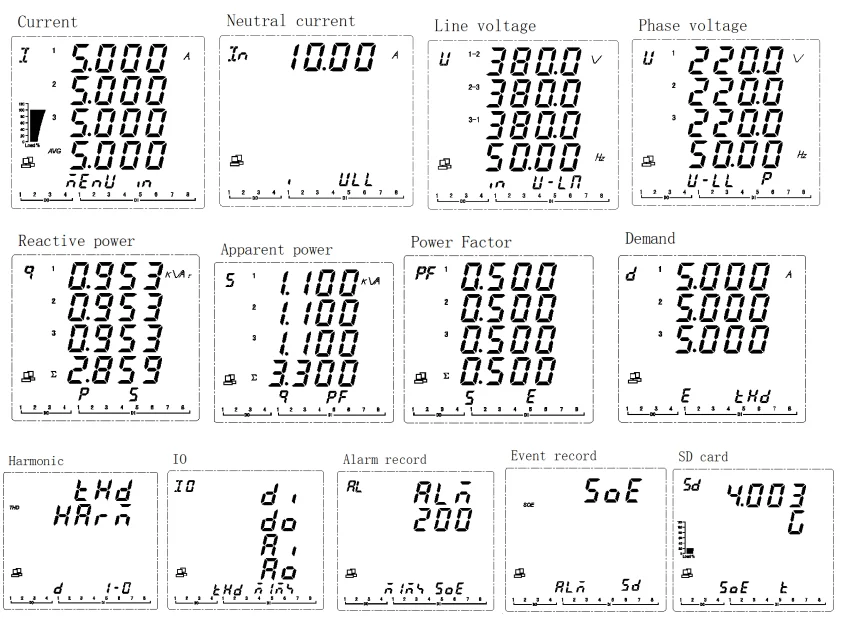

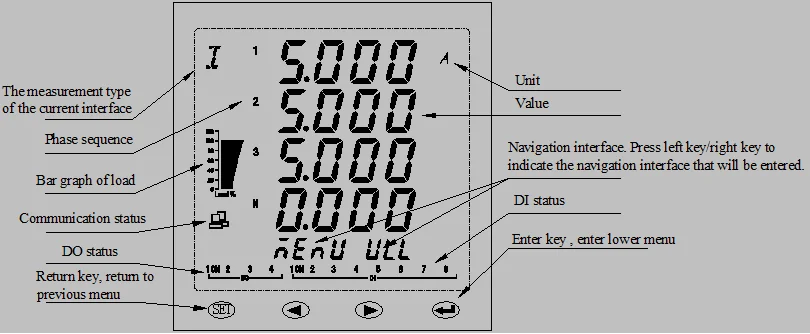

LCD Display

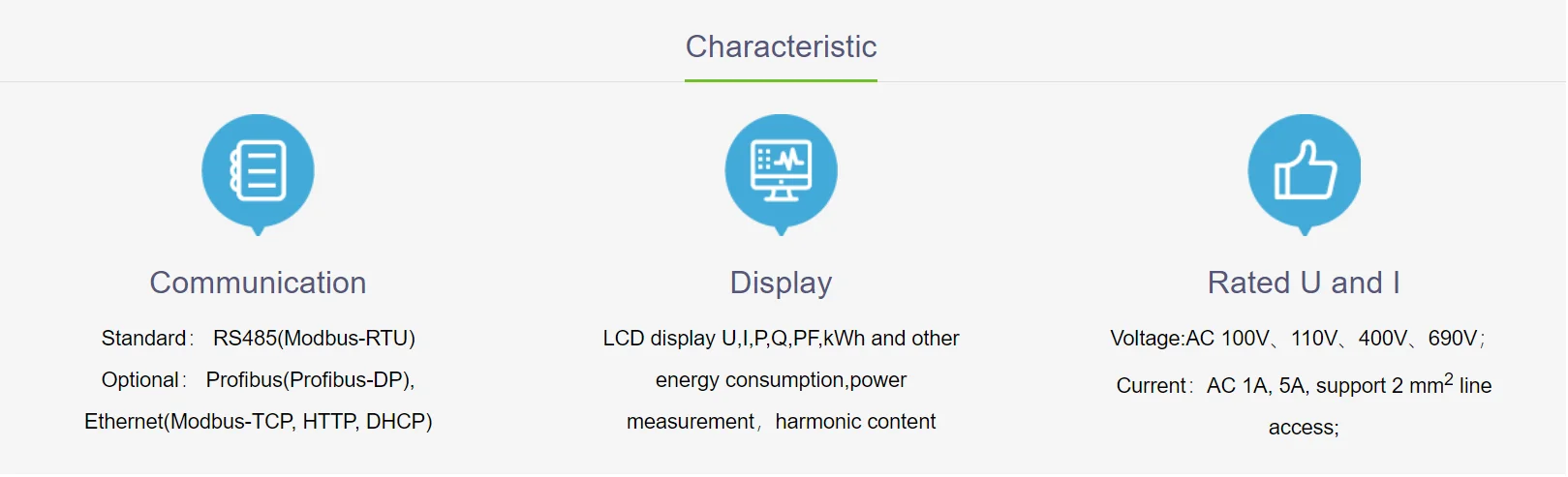

Function
Wiring

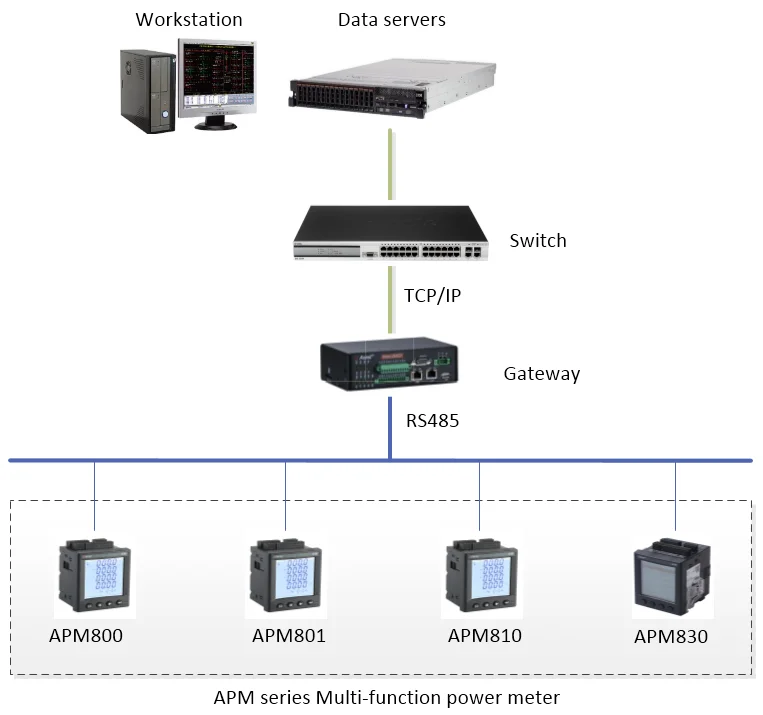

Typical connection
