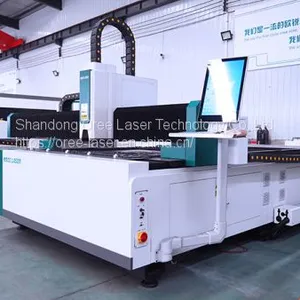

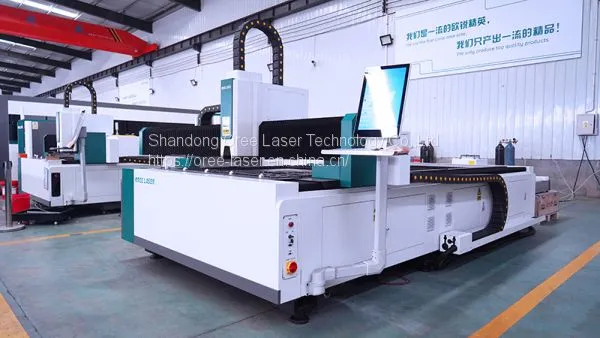

CNC Fiber Laser Cutting Machine for Metal Cutting and Tube Pipe Cutting
US$ 50000 - 110000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FT
Place of Origin:
China
Model Number:
OR-EH3015
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
25 days
Related Products
-
2020 Hot Sale Plate Mental Cutting Fiber Laser Cutting MachineUS$ 45000 - 110000MOQ: 1 Set -
EXCHANGE TABLE SHEET & TUBE FIBER LASER CUTTING MACHINE WITH HIGH QUALITYUS$ 55000 - 120000MOQ: 1 Set
-
The Newest Metal Cnc Fiber Laser Cutting Machine With Long LifeUS$ 48000 - 108000MOQ: 1 Set
-
2020 Factory Direct High Quality Fiber Laser Cutting Machine 4kw for MetalUS$ 48000 - 118000MOQ: 1 Set
-
2020 New Type Metal Laser Cutting Machine Price With Long LifeUS$ 200000 - 300000MOQ: 1 Set
Brand Name
FT
Place of Origin
China
Model Number
OR-EH3015
Certification
CE, ISO
After-sales Service Provided
Overseas service center available
Condition
New
Graphic Format Supported
AI, DXF
Control Software
Cypcut
Cooling Mode
Water Cooling
CNC or Not
Yes
Cutting Speed
140m/min
Cutting Area
3000*1500mm
Cutting Thickness
1~15mm
Applicable Material
Metal
Laser Type
Fiber Laser
The plate and tube dual-purpose fiber laser cutting machine can not only cut plate, but also cut the profile(including square tube, round tube, channel steel, angle steel, etc.), and the carbon steel and stainless steel can be cut. A multi-purpose machine, high-cost performance. The bed adopts a cast iron bed, gear rack drive system and professional pipe cutting CNC system with high precision, full function, convenient use and simple operation. The plate and tube dual-purpose fiber laser cutting machine is suitable for comprehensive processing and manufacturing enterprises.
Product parameter
| Model | OR-F3015T | OR-F4020T | OR-F6020T |
| Working range | 3000*1500mm | 4000*2000mm | 6000*2000mm |
| X-Axis Travel | 1500mm | 2000mm | 2000mm |
| Y-Axis Travel | 3000mm | 4000mm | 6000mm |
| X/Y axis Positioning accuracy | 0.02mm | ||
| X/Y axis repeat positioning accuracy | 0.03mm | ||
| X/Y axis Maximum moving speed | 120m/min | ||
| X/Y Maximum acceleration | 1.2G | ||
| Voltage | 380V/50Hz or customized | ||
| Weight | 5250KG+T | 6050KG+T | 10050KG+T |
Product details
|
Cast iron bed *more stable: using flake graphite cast iron with the lowest tensile strength of 200MPa as the raw material *high precision use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years *long service life can effectively reduce the machining error caused by the vibration of the bed, which saves the user direct cost |
|
|
|
Aviation aluminum beam *high toughness and ductility the aerospace industry extrudes aluminum profiles and undergoes fine processing after extrusion molding and quenching heat aging to make the overall rigidity and surface quality of the beam very good *high speed and precise cutting guarantees the high-speed movement during laser processing, and high-speed cutting of various patterns can be achieved under the condition of satisfying accuracy *more efficient have efficient dynamic performance, greatly imporving processing efficiency while ensuring processing quality |
|
Automatic adjustment laser head *large focal length adjustment range the focus range is +10~-10 with an accuracy of 0.01mm *long service life the internal structure of the laser head is completely sealed to avoid dust contamination of the optical part *easy replacement of the protective lens The protective lens is drawer-mounted for easy replacement *QBH connector is unlimited It can be equipped with a variety of lasers with QBH connectors |
|
|
YASKAWA Servo motor *Accuracy realize closed-loop control of the position, speed and torque; overcome the problem of stepping motor out of step *Rotating speed high speed performance is good, the general rated speed can reach 2000-3000RPM *Adaptability has strong anti-overload capacbility, and the load is three times the rated torque, It is suitable for occasions with transient load fluctuations and quick start *Stability low speed running smoothly, no stepping action when running at low speed, similar to the stepper motor *Timeliness the dynamic acceleration/deceleration time of the motor is short, generally within a few tens of milliseconds *Comfort significantly reduce heat and noise |
|
Company&Factory
Our Oree Laser, a subsidiary of the Shandong OYADE Group, covering an area of 42,000 square meters, containing nearly 1,000 employees, which minimize product cycle time and guarantees and delivery of products.
More than 30 professional researchers are based on technology and focus on the research and development of laser technology; more than 20 top industrial design teams focus on discovering the beauty of technology; more than 120 technicians focus on technology production, adopting German technology to achieve European quality.
