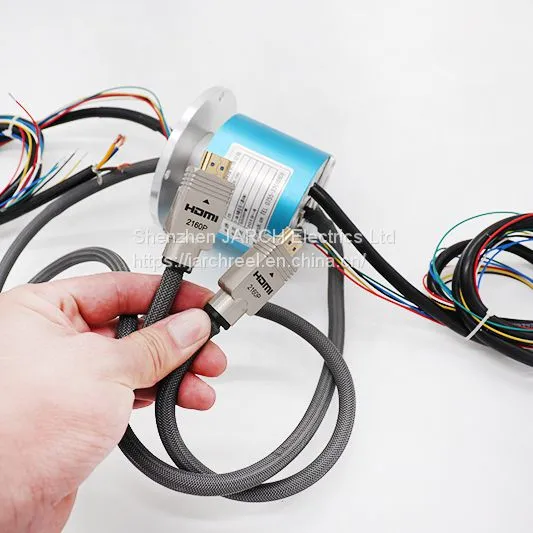

Industrial Slipring Ethernet Bus Slip Rings for HDMI Coaxial Signal

Industrial Slipring Ethernet Bus Slip Rings for HDMI Coaxial Signal

Ethernet Slip RIng Feature:

1.standard and on stock

2.Color-coded lead wires

3.Very low electric noise

4.Anti-jamming ,very low cost

5.Broadband:ethernet ( 1000 BaseT)

Industrial Slipring Ethernet Bus Slip Rings for HDMI Coaxial Signal

Ethernet Slip Ring Description:


Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

The HE025 support 4 channel 1000M baseT ethernet slip rings, with through bore size 25.4mm(1.0"), overall diameter 78mm, are standard, off-the-shelf, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

Ethernet Slip Ring Benefits:

• Unique signal handling performance with minimal electrical circuit noise

• Very low electric noise

• Anti-jamming ,very low cost

• Very low contact resistance (Less than 1mΩ)

• No maintenance and better reliability than traditional sling rings

• Suitable for signal and power transfer of rotating devices or instruments

Dimensions:

Ethernet Slip Ring Applications:

Industrial Ethernet Bus Slip Rings for HDMI Coaxial Signal

• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels

Industrial Slipring Ethernet Bus Slip Rings for HDMI Coaxial Signal

 Installation Instructions

Flange Mounted:

 Industrial Slipring Ethernet Bus Slip Rings for HDMI Coaxial Signal

JARCH is a professional manufacturer of slip rings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.

We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,,Beihang University,etc), and own a skilled management team.To creat the brand and do famous brand,we carry out strict performance ISO9001 standard of CQC.

Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc.

Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.

OEM and ODM are highly welcome!
