Stainless steel explosion proof slip ring
- 1000 Piece / Pieces per Month
- yantian
- T/T PayPal
- ID 50mm IP66 SS304 Explosion Proof Slip Ring
- IP68 S316L Water Proof Slip Ring Rotary Joint Connector by Flange mounted slip ring
- IP68 Water Proof Slip Ring
- IP67 IP68 4 channel 120A underwater water proof stainless steel slip ring
- IP68 flange mounted Waterproof operation underwater working Slip Rings
- High curren waterproof underwater working Slip Rings
Product Description
Stainless steel explosion proof slip ring
Feature:
****ID/OD:50mm/170mm
****360.degree rotation axisJARCH
****Anti-rotation tab
****Working condition: -30℃~60℃
****Explosion proof up to GB
****Custom modifications to our stock products significantly reducing lead times and costs
Model Explanation----JSR-EP050
Specifications:
Rings | 2~24 | Current | 2A/5A/50A |
Voltage | mV~400 VDC/VAC | Max speed | 100RPM |
Through bore size | 50mm | Overall diameter | 170mm |
Housing Material | Stainless Steel | Torque | 0.05N.m;+0.03N.m/6rings |
Working life | 50million | Contact material | Gold-Gold |
Electrical noise | <5 mΩ | Contact Resistance | <2mΩ |
Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Tef. Awg26,Awg22 |
Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
Operating Temp. | -40°C to 80°C | Protection | IP66 |
Materials | Lead Free, ROHS | Certified Mark | EX d IIC T6 Gb,DIP A21 Ta,T6. |
Stainless steel explosion proof slip ring
Explosion-proof slip ring has more safety and higher reliability, designed for use in the condition which is easy to explode, such as in oil platform, explosive material packing machine, , agro-product processing equipment, coal mine and spray finishing, etc.
Slip rings pass the electricity by rub between the brushes and rings, so it is not possible to prevent the spark in theory.Normal slip rings only pay attention to its electric property, but less to protection. So it is very dangerous to use normal slip rings in the condition which is easy to explode. Victory-way knows this, and we know the philosophy of the explosion and its protective measures.We design the explosion-proof conductive slip ring, which can be used in explosive gas atmospheres and explosive dust environment, with protection class IP66.
The slip rings passed EX test and got the certificate of conformity from CNEX (Nanyang), the Cer. No. : CJEx14.0807X Marking: EX d IIC T6 Gb,DIP A21 Ta,T6.
Stainless steel explosion proof slip ring
Dimensions:
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department
Benefits:
* Protection class IP66, IP68 for option;

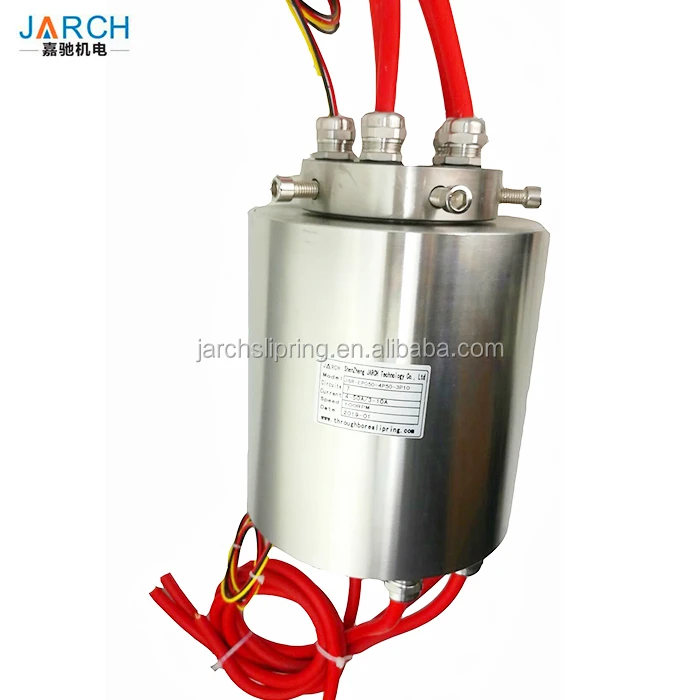

EX D IIC STAINLESS STEEL EXPLOSION PROOF SLIP RING ROTARY JOINT ID 50MM ELECTRICAL SLIP RING
Installation Instructions--Flange mounted:
Shaft Mounted: EX D IIC STAINLESS STEEL EXPLOSION PROOF SLIP RING ROTARY JOINT ID 50MM ELECTRICAL SLIP RING
Applications:
- * Oil platform;
- * Explosion-proof packing machine;
- * Spraying equipments;
- * Chemical equipments;
- * Farming industry;
- * Fit to use in explosive Gas and or Explosive Dust atmospheres
Installation Instructions
Flange Mounted:
Industrial Slipring Ethernet Bus Slip Rings for HDMI Coaxial Signal
Q1: Are you a factory or a trading company? | ||||||||||
A: We are a professional manufactory with High-level R & D team. | ||||||||||
Q2: How many types of the slip rings do you have? | ||||||||||
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. | ||||||||||
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
Q4: what's the working life of your slip rings. | ||||||||||
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. | ||||||||||
Q5: Do you supply OEM and ODM ? | ||||||||||
A: Yes, we supply OEM and ODM. |
JARCH is a professional manufacturer of slip rings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.
We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,,Beihang University,etc), and own a skilled management team.To creat the brand and do famous brand,we carry out strict performance ISO9001 standard of CQC.
Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc.
Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.
OEM and ODM are highly welcome!
