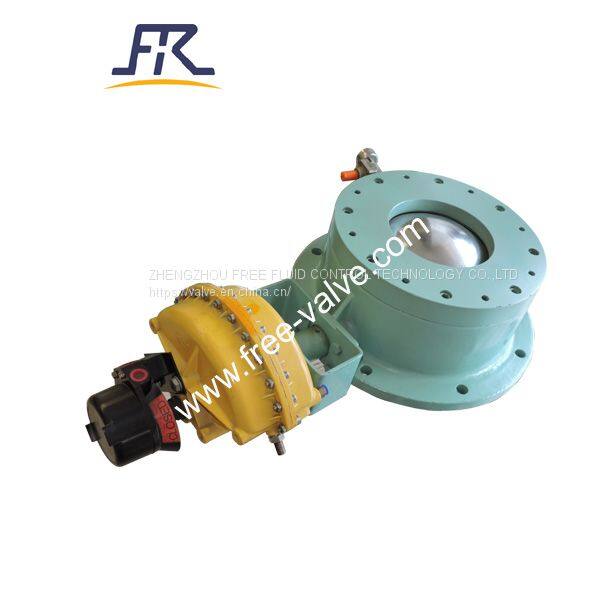

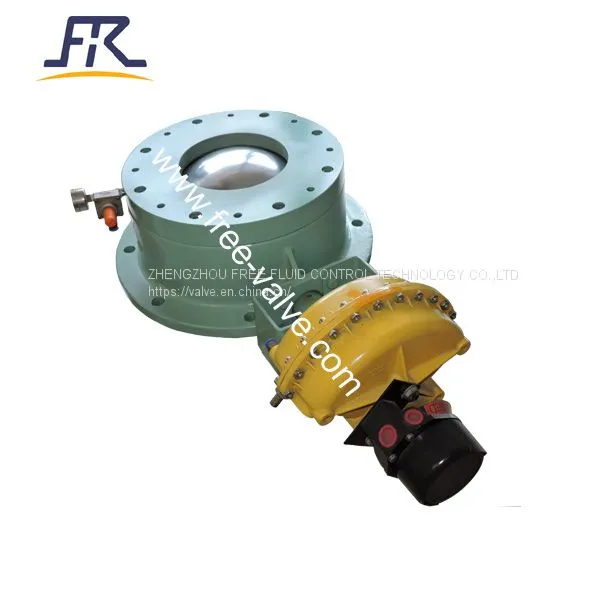

DN200 Ball Type Pneumatic Dome Valve for coal power plant fly ash system

FREE-VALVE’s pneumatic operated Ball Type Pneumatic Dome Valves is an shut-off valve with pressure tight compressed air operating in environment where abrasive material are passing. it is designed for ash handling system, and it can achieve working reliability in severe pneumatic conveying applications ,these are 100% leak proof valves even under two different pressure.

Features

1. Simple in design and low in maintenance ,makes the dome valve suitable for pneumatic conveying system .

2. 90 degrees turn is sufficient to move from fully closed to fully open position,so the dome completely clear of the medium flow path.

3. The seat is a inflatable rubber seal which inflates when pressurized air is passed to it,thus holding and sealing the dome surface tightly.Tight sealing performance as Inflatable seal self-compensates for wear as the valve is used.The inflatable seal provides continuous wear compensation.

4.Easy to maintenance and replacement,The main components of the valve, dome casting, top plate, do not require replacement for several years. The inflatable seal is often only replaced for many months, and is a low cost item.

5.Different valve body materials are optional depending on customer need.

Technical Specification:

1) Size Range: NPS4~NPS16,DN50~DN400

2) Pressure Range: Class 150 /PN6 /PN10

3) Applicable Temperature: 0~350℃

4) Connection Type: Flange

5) Sealing material: inflatable seats /Hard seats

6) Pressure test:GB/T13927, API598

7) Face to Face: GB/T12221, ASME B16.10

8) Valve body : GB/T12224,ASME B16.34

Operating Type: Pneumatic

Application:

FREE-VALVE’s pneumatic operated dome valves are used in the dense phase pneumatic conveying applications and suitable for abrasive material with abrasive particles,such as power plants ,ash ,mineral processing ,food industry ,biomass ,steel industry,material handling ,pharmacy etc .

Model:FRYDF-10C

Price:1000-5000USD/set

Origin:China

Payment terms:TT,LC

Price terms:FOB,CIF.FCA,CFR

Delivery time:30 days

Brand:FREE-VALVE
