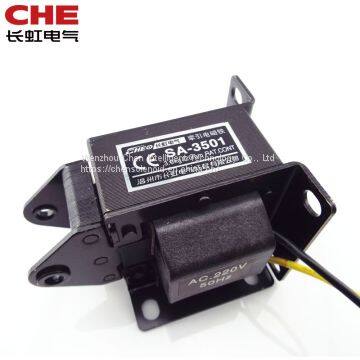

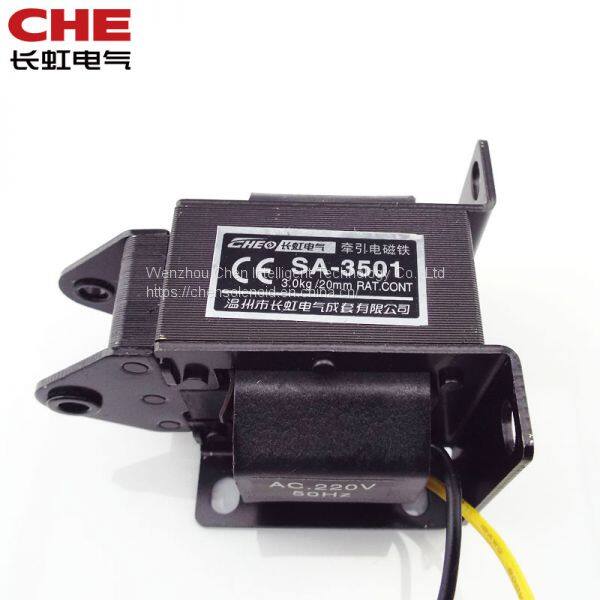

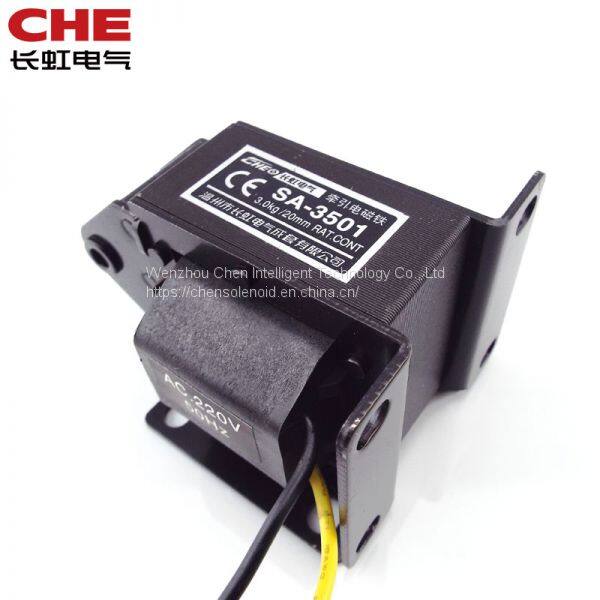

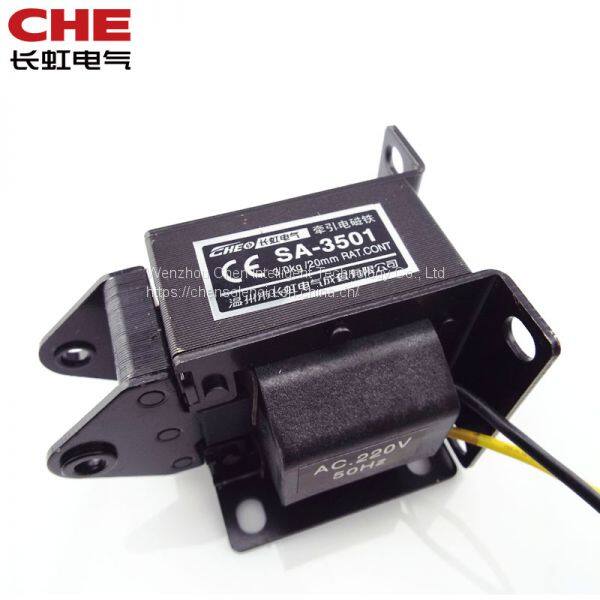

SA-3501 3.0kgf 29.4N 20mm push pull type tractive solenoid electromagnet for vending machine
USD $12.3 - $14.5
/ Piece
1 Piece(Min.Order)
- 50000 Piece / Pieces per Month
- Ningbo, Shanghai, Wenzhou
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 3 days
You May Like
-
SA-3601 4.0kgf 39.2N 20mm push pull type tractive solenoid electromagnet for vending machine
-
SA-3701 5.0kgf 49N 20mm push pull type tractive solenoid electromagnet for vending machine
-
SA-4601 8.0kgf 78.4N 30mm push pull type tractive solenoid electromagnet for vending machine
-
SA-2402 1.0kgf 9.8N 15mm push pull type Attractive Linear AC Solenoid electromagnet for vending machine
-
SA-3702 5.0kgf 49N 20mm push pull type Electrical solenoid solenoid electromagnet for vending machine
-
SA-2602 2.0kgf 19.6N 15mm push pull type AC traction magnet electromagnetic solenoid electromagnet for vending machine
Product Details
| Brand Name | CHE | Place of Origin | China | |
| Model Number | SA-3501 |
Product Description
SA series AC electromagnetic, patent No. ZL00251761.1, which is the latest results of high quality AC electromagnetic. As we use superior silicon steel sheet, and cast sealed coil, we improved the insulation capability, safety and reliable, beautiful shape, small size, light weight, with high speed of adsorb and release, save for electric. It is mainly used for circuit of AC 50Hz or 60Hz, rated voltage up to 415V, for the purpose of long and short distance controlling of mechanical equipment automatic system and all kinds of operation mechanism. This product is in line with GB14048.5 standard.
| Model | Action forms | Rated stroke | Rated force | Rated voltage | Rated cycle | Insulation class |
| mm | N(kgf) | V | HZ | |||
| SA-3501 | PUSH-PULL | 20 | 29.4(3.0) | AC220orAC110 AC380 AC24 AC36
Non-standard voltages can be customized | 50/60HZ Common (2 leads wire) | B |
| Model | Insulation resistance | Frequency voltage | Temperature rise | Rated operating frequency | Movable iron core weight | Total weight |
| 60% | g | g | ||||
| SA-3501 | DC500V 50MΩ
above | AC2000V 1 Minute | Below 85 | 720 time / hour | 285 | 1000 |
