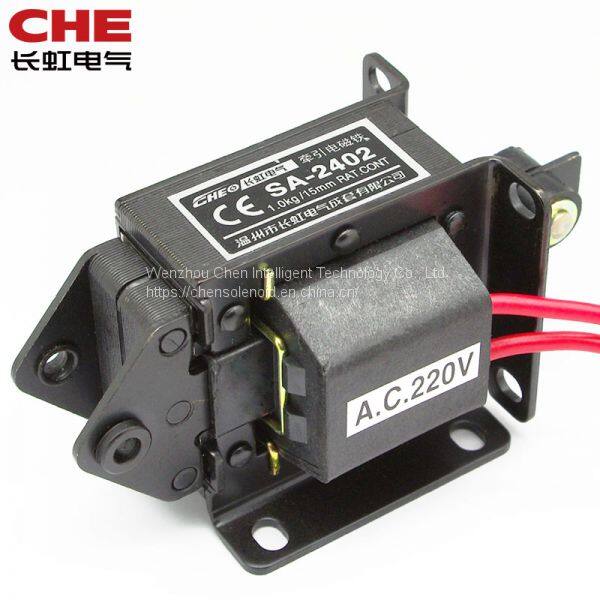

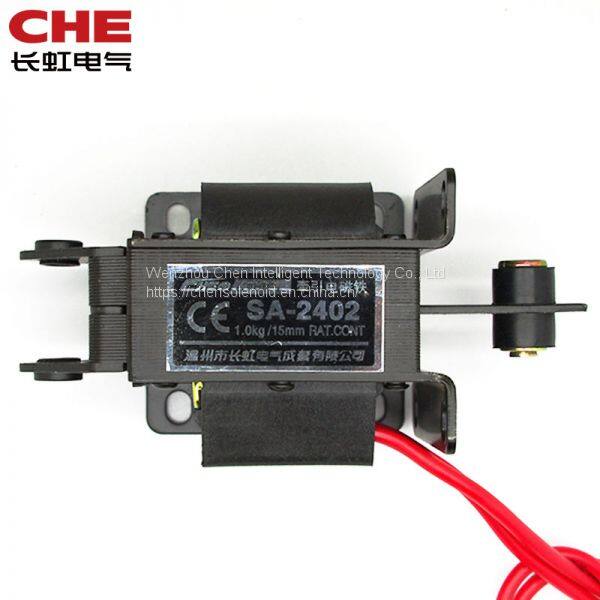

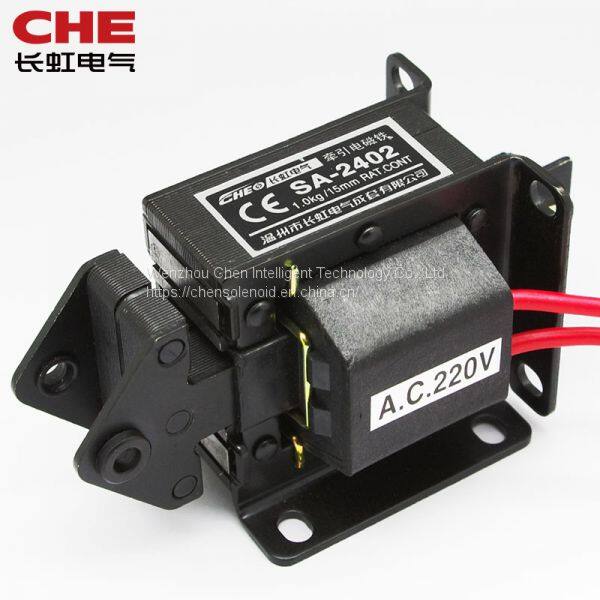

SA-2402 1.0kgf 9.8N 15mm Push Pull Type Attractive Linear AC Solenoid Electromagnet for Vending Machine
US$ 8.0 - 12.5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
CHE
Place of Origin:
China
Model Number:
SA-2402
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo, Shanghai, Wenzhou
Delivery Detail:
3 days
Related Products
-
SA-3702 5.0kgf 49N 20mm Push Pull Type Electrical Solenoid Solenoid Electromagnet for Vending MachineUS$ 14.53 - 18MOQ: 10 Pieces -
SA-2602 2.0kgf 19.6N 15mm Push Pull Type AC Traction Magnet Electromagnetic Solenoid Electromagnet for Vending MachineUS$ 8.0 - 12.5MOQ: 10 Pieces
-
SA-52 10kgf 98N 40mm Push Pull Type Long Stroke Solenoid Electromagnet for Vending MachineUS$ 82.14 - 95.09MOQ: 1 Piece
-
SA-3502 3.0kgf 29.4N 20mm Pull Push Electromagnet Linear Solenoid Electromagnet for Vending MachineUS$ 12.3 - 14.5MOQ: 1 Piece
-
SA-3602 4.0kgf 39.2N 20mm Push AC Solenoid Pull Type Electromagnet for Vending MachineUS$ 7.12 - 9.64MOQ: 10 Pieces
Brand Name
CHE
Place of Origin
China
Model Number
SA-2402
SA series AC electromagnetic, patent No. ZL00251761.1, which is the latest results of high quality AC electromagnetic. As we use superior silicon steel sheet, and cast sealed coil, we improved the insulation capability, safety and reliable, beautiful shape, small size, light weight, with high speed of adsorb and release, save for electric. It is mainly used for circuit of AC 50Hz or 60Hz, rated voltage up to 415V, for the purpose of long and short distance controlling of mechanical equipment automatic system and all kinds of operation mechanism. This product is in line with GB14048.5 standard.
| Model | Action forms | Rated stroke | Rated force | Rated voltage | Rated cycle | Insulation class |
| mm | N(kgf) | V | HZ | |||
| SA-2402 | PUSH-PULL | 15 | 9.8(1.0) |
AC220orAC110 AC380 AC24 AC36
Non-standard voltages can be customized |
50/60HZ Common (2 leads wire) |
B |
| Model | Insulation resistance | Frequency voltage | Temperature rise | Rated operating frequency | Movable iron core weight | Total weight |
| 60% | g | g | ||||
| SA-2502 |
DC500V 50MΩ
above |
AC2000V 1 Minute |
Below 85 | 1200 time / hour |
100 | 360 |
