YRTS200 Axial Radial Bearings for Higher Speed
US$ 50 - 500
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
BRSZC
Place of Origin:
China
Model Number:
YRTS200
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RKS.060.20.0544 Four Point Contact Ball Slewing BearingsUS$ 100 - 1000MOQ: 3 Pieces -
MTO-065 Small Slewing Bearing 65x135x22mmUS$ 10 - 100MOQ: 5 Pieces
-
RKS.921150303001 Crossed Roller BearingUS$ 100 - 1000MOQ: 2 Pieces
-
VU140179 Slewing Bearing 124.5X234X35mmUS$ 10 - 500MOQ: 2 Pieces
-
VU200260 Turntable Bearing 191x329x46mmUS$ 10 - 500MOQ: 2 Pieces
Brand Name
BRSZC
Place of Origin
China
Model Number
YRTS200
Feature
Other, combined axial radial bearings
Seals Type
without
Outside Diameter
300,
Bore Size
200,
Gear Options
Nongeared

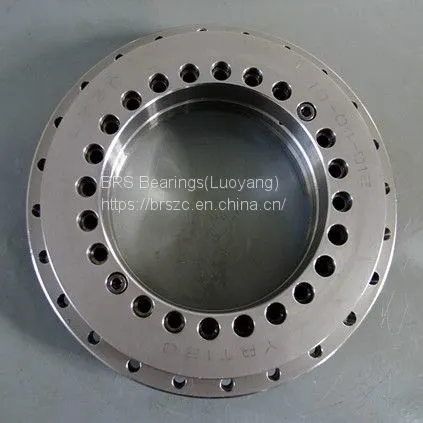

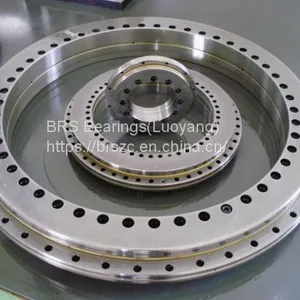

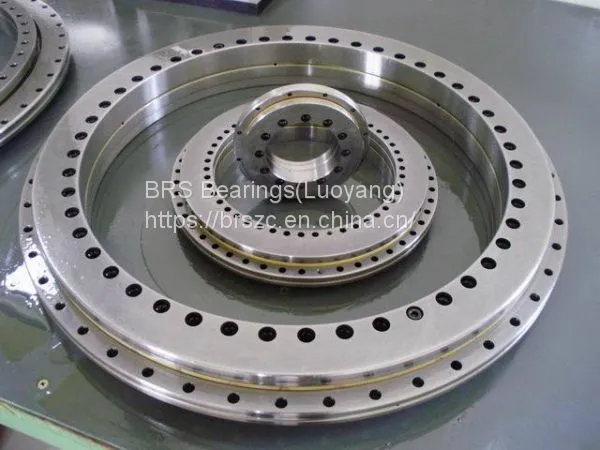

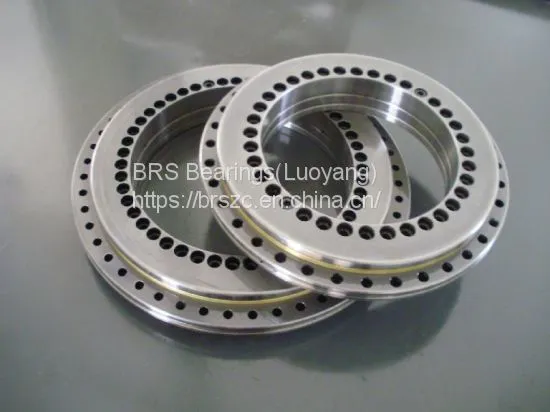

YRTS200 axial radial bearings for higher speed
size: 200*300*45mm
mass: 9.7kg
YRTS axial radial bearings have same structure and size as YRT axial radial bearings, but it has different internal structure design, which make YRTS series bearing has higher limit rotation speed, meanwhile provide lower and even friction.
YRTS combined radial thrust bearings are suited for applications where low friction and higher running speed required, such as direct drive shaft, NC rotary tables(numerical control rotary table), etc.
| Model | Dimensions(mm) | Fixing holes | Mass (kg) | |||||||||||
| d | D | H | C | d1 | J | J1 | inner ring | outer ring | ||||||
| d1 (mm) | d2 (mm) | a (mm) | Qty | d3 (mm) | Qty | |||||||||
| YRTS200 | 200 | 300 | 45 | 15 | 274 | 215 | 285 | 7 | 11 | 6.2 | 46 | 7 | 45 | 9.7 |
| YRTS260 | 260 | 385 | 55 | 18 | 345 | 280 | 365 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 | 18.3 |
| YRTS325 | 325 | 450 | 60 | 20 | 415 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 | 25 |
| YRTS395 | 395 | 525 | 65 | 20 | 486 | 415 | 505 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 | 33 |
| YRTS460 | 460 | 600 | 70 | 22 | 560 | 482 | 580 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 | 45 |
