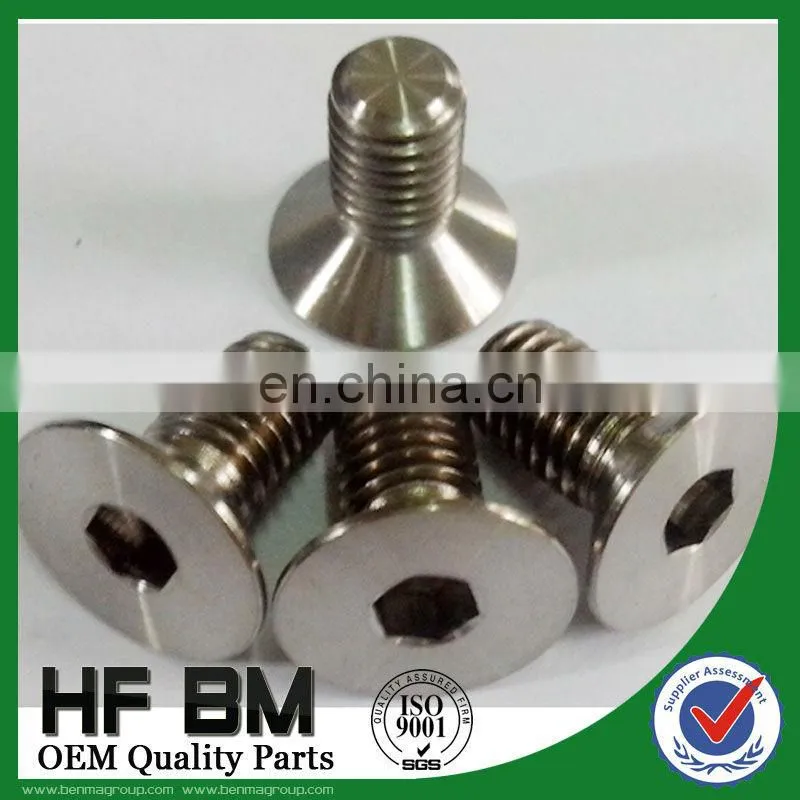

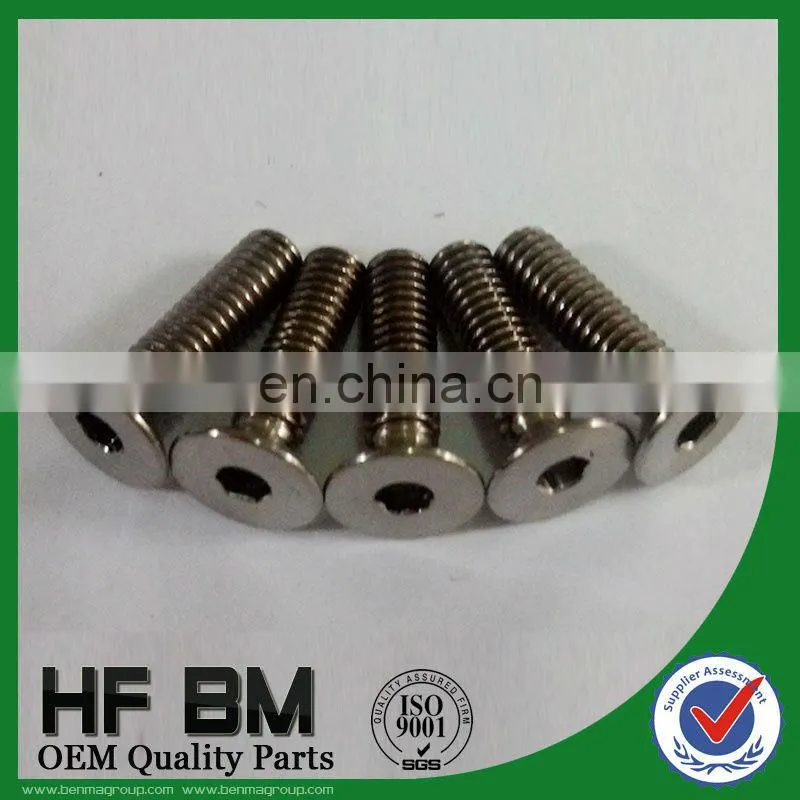

Motorcycle pan head bolt,stainless steel round head bolts,m6 countersunk bolts
Item Name |
Taper socket bolt,mushroom hex socket head bolt,fastener manufacture,hex socket bolt,tapered head socket bolt,with OEM quality |
Brand |
OEM |
Quality |
A Grade OEM Quality only |
Model |
HF-011 |
Material |
titanium,titanium alloy |
OEM |
Available |
Quick details
Place of Origin: China (Mainland)
Dimensions: M3-M22XLmm
Grade:Gr2,Gr5 etc
Powder Or Not: Not Powder
Application: motorcycle ,bicycle,car
Specifications :
Bolt sizes:M2-M22*Length
Nut sizes:M2-M22
Washer sizes:M2-M22
Standard:DIN,ASTM,GB,BSW,UNC,JIS
DIN912/933/7991/7984/6921,ISO 7380,JIS,BS Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12,
Certificate:ISO 9001:2008
Material:titanium,titanium alloy
Technique:rolled threads,CNC machining .
Term |
Titanium screw/nut and titanium bolt |
Grade |
Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr11,Gr12, |
Size |
Bolt sizes:M2-M22*Length Nut sizes:M2-M22 Washer sizes:M2-M22 |
SurfaceTreatment |
Polishing, Anodizing, Black oxide or Plating color |
Features |
light weight, acid and alkali resistance, corrosion resistance, excellent mechanical strength etc. |
Standard |
DIN912/933/7991/7984/6921,ISO 7380,JIS,BS |
MOQ. |
100pieces |
|
Test and Quality |
1.ISO 9001:2008 2.Mechanical properties test. 3.inspection ensure the materials meet destructive and non-destructive test according to industry and customer specification. |
Applications |
1.Equipment accessories: airplane, ship, bicycle, motorcycle, auto, medical, chemical, wheelchair, sports, anchor, weapon, etc. 2.Aerospace,Indusrty,Navigation,Smelting,Chemical plants, and so on. |
Load port |
Shanghai or Guangzhou |
Packing box |
Non-wooden case, single board burlap or as order. |
Payment |
1. T/T, L/C, Western union, 2.Prepaid 30% T/T against PI, pay for balance before delivery. |
Delivery time |
7 to 20days after confirmed |
The specification would be changed by the customers' requirements. | |
Grade |
ELEMENT COMPOSITION , % |
|||||||||
Ti |
AL |
V |
Fe |
C |
N |
H |
O |
Others,max |
||
Grade 1 |
Balance |
- |
- |
0.20 |
0.08 |
0.03 |
0.015 |
0.18 |
0.40
|
|
Grade 2 |
Balance |
- |
- |
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
0.40
|
|
Grade 3 |
Balance |
- |
- |
0.30 |
0.08 |
0.05 |
0.015 |
0.35 |
0.40
|
|
Grade 4 |
Balance |
- |
- |
0.50 |
0.08 |
0.05 |
0.015 |
0.40 |
0.40
|
|
Grade 5 |
Balance |
5.5-6.75 |
3.5-4.5 |
0.40 |
0.08 |
0.05 |
0.015 |
0.20 |
0.40
|
|
Grade 7 |
Balance |
Pd 0.12-0.25 |
|
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
0.40
|
|
Grade 9 |
Balance |
2.5-3.5 |
2.0-3.0 |
0.25 |
0.08 |
0.03 |
0.015 |
0.15 |
0.40
|
|
Grade 12 |
Balance |
Mo 0.2-0.4 |
Ni 0.6-0.9 |
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
0.40 |
|
Titanium fasteners merits:
Titanium ,as the forth abundant element on the earth crust,is famous for its low density,high strength,light weight and excellent corrosion resistance.
Products:
Titanium screws, titanium bolt,titanium fasteners,titanium parts, Racing titanium screws and titanium bolt
DIN912,DIN913,DUB914,DIN915,DIN985,DIN6923
Titanium Fastener,Titanium Bolt and racing Titanium Screws,Titanium Nut,
Titanium Taper Head Bolt ,Titanium Head Bolt,Titanium Taper Head Bolt,Titanium Botton Head Bolts,
Titanium Flange Head Bolt,Titanium Countersunk Flat Head Screws,

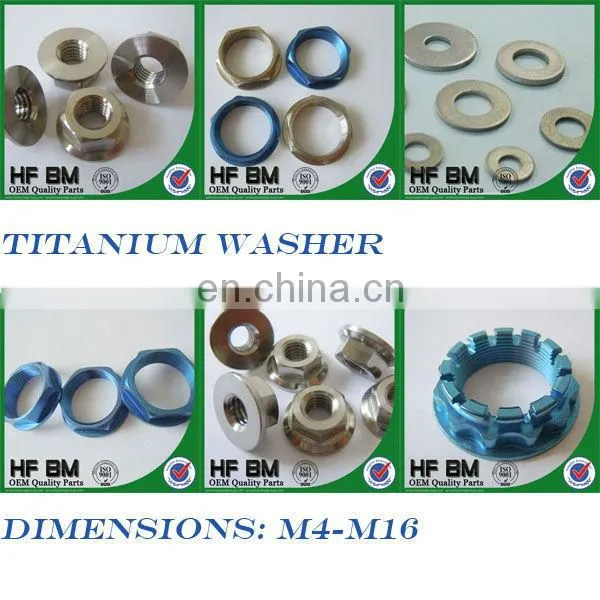

Titanium Hexagon Socket Head Knurled Screws,Titanium Nylon Lock Nut,Titanium Hex Nuts,Titanium Flange Nuts,Titanium Wing Nut
Huangshan Benma Group Co., Ltd. located in Huizhou District Industrial Park, Huangshan, Anhui, is one of the largest professional spare parts of automobile and motorcycle in China. Our products occupy 2/3 of the domestic supporting shares for main engine plants. Our products sell well not only in more than 20 cities of China, but also in Europe, America, Southeast Asia, etc.
Product series:
PACKAGE PICTURE:
Production Flows
