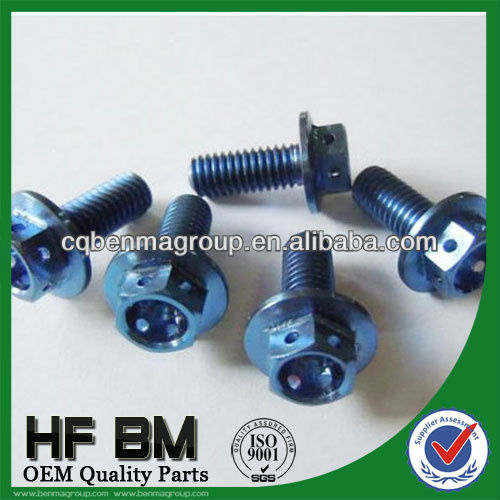

Good Motorcycle Titanium Flanged Hex Bolt

Term

Titanium screw/nut and titanium bolt

Grade

Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr11,Gr12,

Size

Bolt sizes:M2-M22*Length

Nut sizes:M2-M22

Washer sizes:M2-M22

SurfaceTreatment

Polishing, Anodizing, Black oxide or Plating color

Features

light weight, acid and alkali resistance, corrosion resistance, excellent mechanical strength etc.

Standard

DIN912/933/7991/7984/6921,ISO 7380,JIS,BS

MOQ.

100pieces

Test and Quality

1.ISO 9001:2008

2.Mechanical properties test.

3.inspection ensure the materials meet destructive and non-destructive test  according to industry and customer specification.

Applications

1.Equipment accessories: airplane, ship, bicycle, motorcycle, auto, medical, chemical, wheelchair, sports, anchor, weapon, etc.

2.Aerospace,Indusrty,Navigation,Smelting,Chemical plants, and so on.

Load port

Shanghai or Guangzhou

Packing box

Non-wooden case, single board burlap or as order.

Payment

1. T/T, L/C, Western union,

2.Prepaid 30% T/T against PI, pay for balance before delivery.

Delivery time

7 to 20days after confirmed

The specification would be changed by the customers' requirements.

Grade

ELEMENT  COMPOSITION , %

Ti

AL

V

Fe

C

N

H

O

Others,max

Grade 1

Balance

-

-

0.20

0.08

0.03

0.015

0.18

0.40

Grade 2

Balance

-

-

0.30

0.08

0.03

0.015

0.25

0.40

Grade 3

Balance

-

-

0.30

0.08

0.05

0.015

0.35

0.40

Grade 4

Balance

-

-

0.50

0.08

0.05

0.015

0.40

0.40

Grade 5

Balance

5.5-6.75

3.5-4.5

0.40

0.08

0.05

0.015

0.20

0.40

Grade 7

Balance

Pd 0.12-0.25

0.30

0.08

0.03

0.015

0.25

0.40

Grade 9

Balance

2.5-3.5

2.0-3.0

0.25

0.08

0.03

0.015

0.15

0.40

Grade 12

Balance

Mo 0.2-0.4

Ni 0.6-0.9

0.30

0.08

0.03

0.015

0.25

0.40
