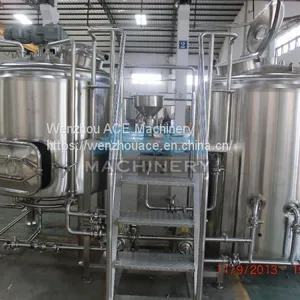

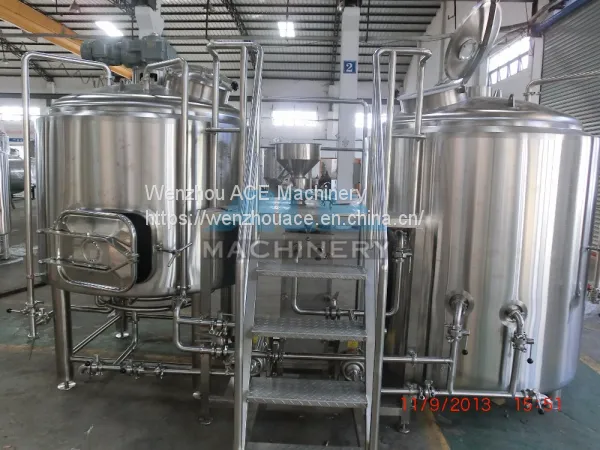

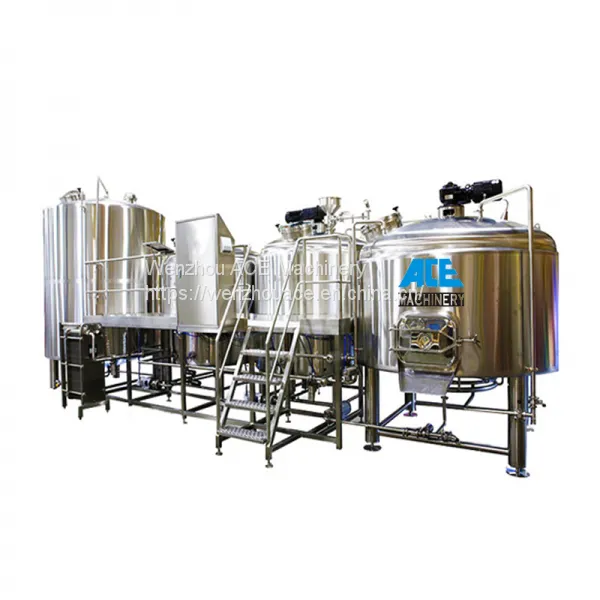

Customized Stainless Steel Beer Craft Brew House Mash Tun Kit Equipment
Choose ACE, Choose the finest beer
1. Introduction
ACE brewery system is for beer making factory. We can take full responsibilities for designing, manufacturing, installing, commissioning, and produce according to your requests. The machine can be used for producing
different beer and cavas.
2. Top Quality Components
1) All product are leading parts in stainless steel.
2) Complete per-fabricated unit, well welded, fine surface, prolong the service life of the equipment;
3) Perfect design, top quality accessories, to minimize the equipment’s bug rate.

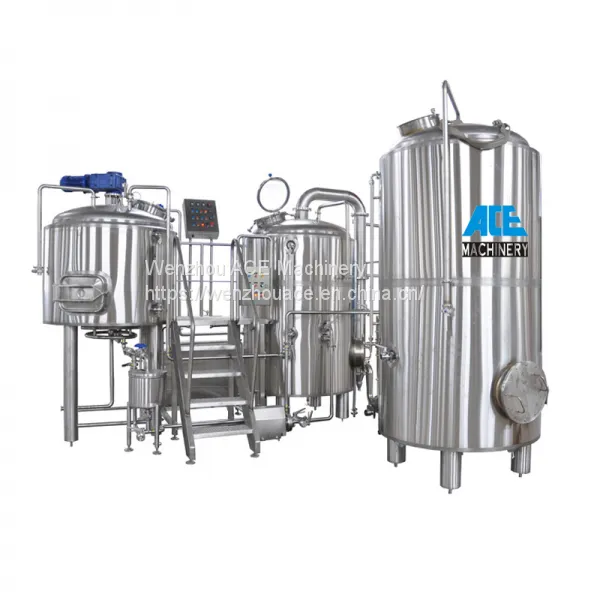

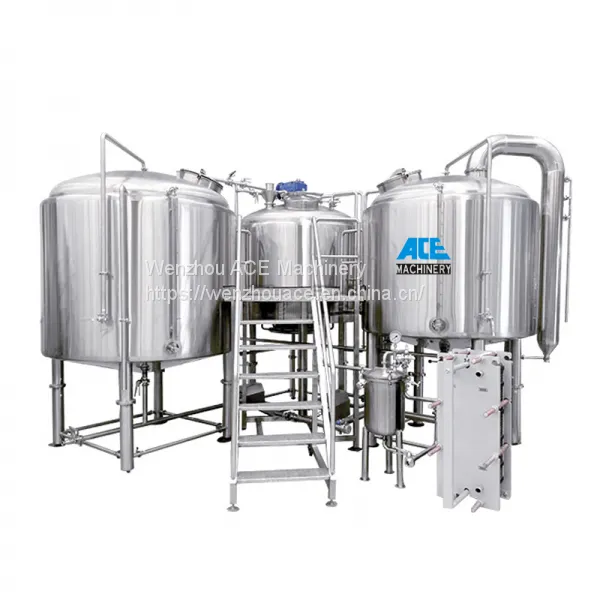

Detailed Image
| 1. Mash& Lauter Tank | 1 Piece; SUS304 |
| 2. kettle& Whirlpool Tank | 1 Piece; SUS304 |
| 3. Inner Tank Body Thickness | 3mm |
| 4. Cladding Thickness | 2.5mm |
| 5. Insulation Layer | Rockwool |
| 6. Insulation Thickness | 100mm |
| 7. Manhole | Top Flange |
| 8. Miller Machine | 1 Piece; 500kg/h |
| 9. Wort Pump | 1 Piece; Stainless Steel Food Delivery Pump |
| 10. Plate Heat Exchanger | 1 Piece; Two Stage Cooling; 6 Flows |
| 11. Pipe line& valve | 1 Set; Stainless Steel ; Food Grade SUS304 |
| 12. Wort Measuring Meter | 1 Set; Stainless Steel ; WNG/WNY(0~100℃) |
| 13. Venturitibes | 1 Set; Stainless Steel |
| 14. Saccharometer | 1 Set; Glass |
| 15. Rake | 1 Set; Stainless Steel, Lees out rake; L=2000mm |
| 16. Operation Platform | 1 Piece; Stainless Steel |
| 1. Fermentation Tank | 6 Pieces; SUS304; 200L |
| 2. Yeast Adding Tank | 1 Piece; SUS304 |
| 3. Food Tube | Include Tube Jonits and Hose Hoops |
| 4. Refrigerant Pipelines | 1 Piece; PPR/ Stainless Steel |
| 5. Warm Keeping Tube | 1 Piece; Polyethylene |
| 6. Electromagnetic put air out | 1 Piece |
| 7. Electronic gauges | 6 sets |
Available Capacity: 100L-20000L or 1bbl-150bbl
1- 100% TIG welded joints with Certified stainless steel 304
2- Interior shell 3mm-8mm, Exterior shell 2mm
3-test pressure 0.3Mpa, working pressure 0.2Mpa
4-60 degree cone bottom, with an average of 20%-25% head space
5- 100mm Polyurethane insulation
6- Dimple cooling jackets (two or three sections according to the size)
7- Perlick sample valve, SMC solenoid valve, water seal pressure valve.
8- Side manway, dry hops port, rotating racking port
9- CIP arm and rotary spray ball, sanitary tri-clamp connections,
10- Carbonation port and Level gauge for serving tank
2. All spare parts, accessories and fittings will be packaged with painted steel box.
3. All items wrapped with soft package for protection.
4. Standard shipping containers will be used for general purpose.
5. All equipments will be loaded into containers according to exact container layout drawings.
6. After loaded into containers, all equipments will be well fixed to the containers.
Our Service
2).We also have the process video for the brewing equipment, if the client do not know the process, the video will be sent.
3).We will give the layout according to the client’s floor plan or their requirements.3D layout also can be provided. This can help the client to get a better understanding about the project.
4).We will give the detailed diagram of the tanks, this can help the client to know whether this is what they need and also can modify them before placing the order.
3).The materials of the tanks can be SUS304 Stainless Steel with higher quality and affordable price
4).The capacity can be 50L---Customized per batch
5).Professional engineers going abroad to assist you setup the brewhouse
