Product Details
Brand Name: | ace | Place of Origin: | China | Model Number: | ACE-JL-XLD79 |
Certification: | CE ISO | After-sales Service Provided: | No overseas service provided | Warranty: | 1 year |
Weight: | depend on Capacity | Dimension(L*W*H): | depend on Capacity | Condition: | New |
Voltage: | Adjustable | Power(W): | 0-30KW | Processing Types: | Alcohol |
Product Description
Ace Industial Traditional Cognac pot still for Brandy Red Copper Charente Distiller

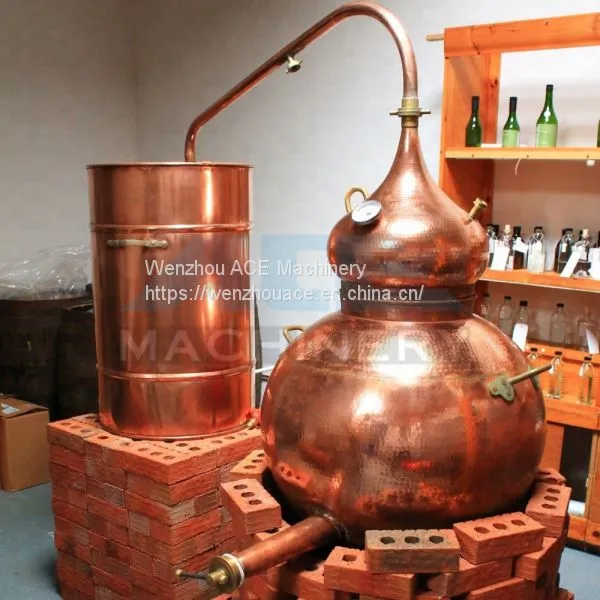

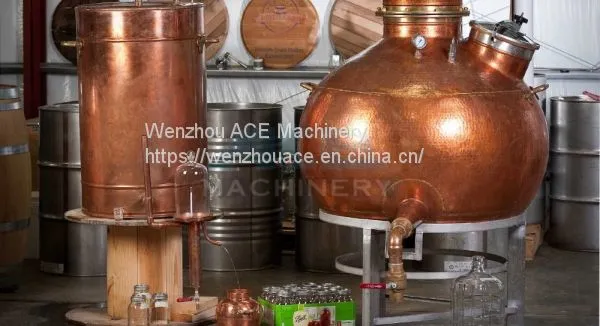

A pot still is a type of distillation apparatus or still used to distill flavored liquors such as whisky or cognac, but not rectified spirit because they are bad at separating congeners. Pot stills operate on a batch distillation basis (as opposed to a Coffey or column stills which operate on a continuous basis). Traditionally constructed from copper, pot stills are made in a range of shapes and sizes depending on the quantity and style of spirit desired.
Spirits distilled in pots top out between 60 and 80 percent ABV (after multiple distillations).
By law, cognac, Irish and Scotch malt whiskies, and single pot still whiskey must be distilled using a pot still.
The process of distillation is still the same since the cognac was born… in the 17th century !

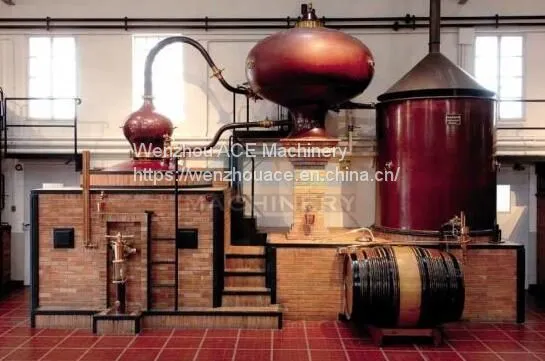

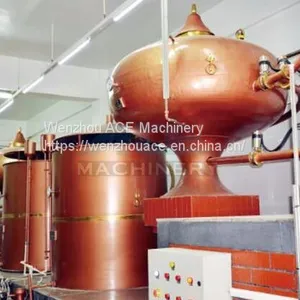

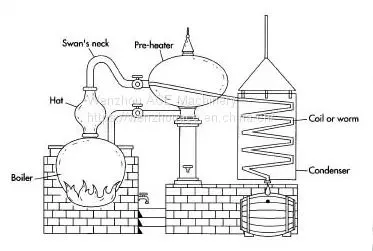

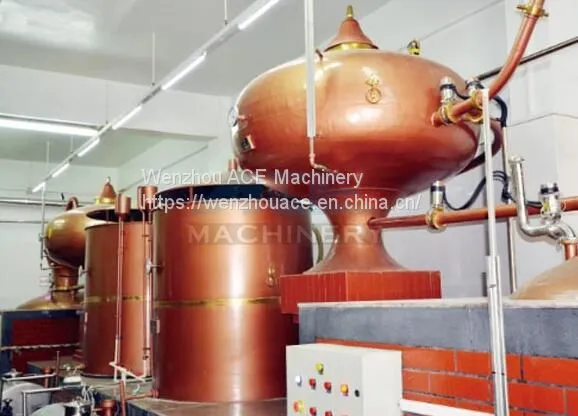

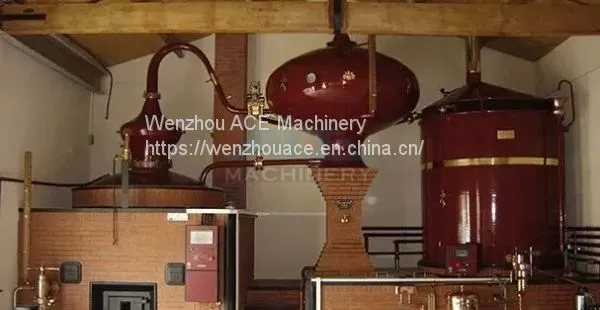

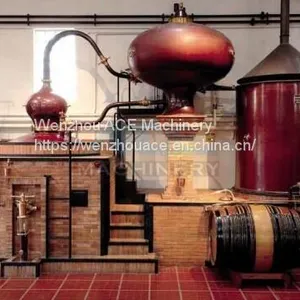

Cognac distillation is performed in a two-stage process, with a specific Charentais copper still, with its pot (or boiler), its swan’s necks ans its cooler and its condensing coil.
The white wine, harvested in the Controlled Appellation Area, is introduced in the pot and brought to the boiling point. Alcohol vapors condense to form a cloudy liquid called « brouillis »,with an alcohol volume of 28 % to 32 %.
The « brouillis » is then returned to the boiler for a second distillation, called « bonne chauffe ». The total capacity of the still must not exceed 30 hl (with a tolerance of 5%) and the load volume is limited to 25 hl.
Structure: Pot Still
Construction: Jacked construction

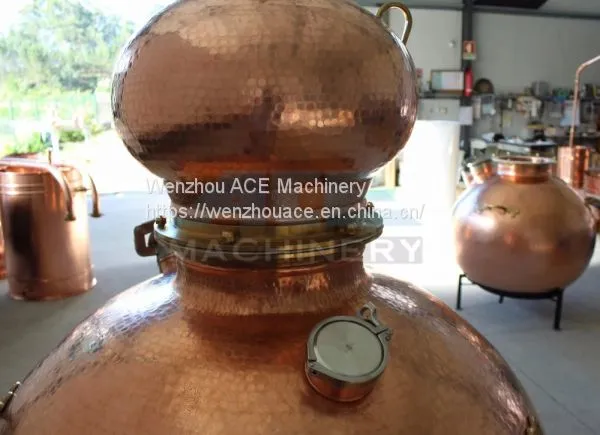

Material: Red copper
Heating method: by steam/electrical heating elements
Main components:

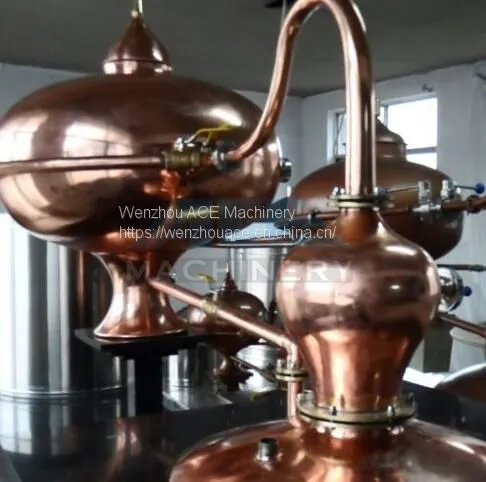

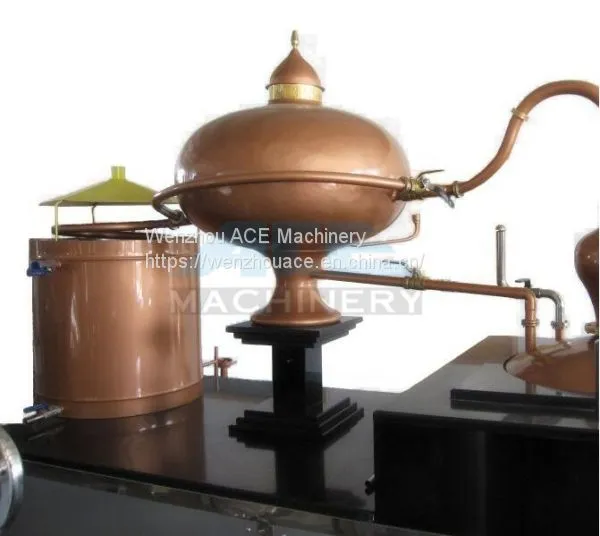

Still head and swan’s neck : Collect the vapours and rectify (filter) them, depending on the shape and volume of the piece (e.g. onion or olive shaped still heads) ;
Cooling tank and coil : Condense the vapours and regulate the temperature of the distillate.
Motor voltage:110/208/220/240/380/400/415/460V 3phase 50/60HZ for choose
Motor certificate: UL/CSA/CE option
We can produce all kinds of the stills for the different spirits according to customer's request
The turnkey project is available
FAQ
1.Which is better and more productive – a Reflux Still or a Pot Still?
Both types of Still will remove the alcohol from a wash or mash, therefore the productivity is basically the same.
Reflux Still refines the distillate to a high degree, producing a distillate of very high alcohol content with very little of the 'character' of the wash or mash coming through. A Reflux Still is a must for producing neutral spirit or Vodka.
A Pot Still produces a distillate with much lower alcohol content but with a correspondingly increased level of the 'character' coming through.
This is important for distilleries producing Spirits such as Whisky, Tequila and Rum etc. where the character of the base ingredients is required in the final product.
2.Why do I need copper?
Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.
Copper has the ability to react with many sulfide compounds, such as sulfides or mercaptans, which are normally present in fermented mash, making them insoluble and removing them from the high wine vapor. As this chemical reaction proceeds within the still, a bright copper surface becomes very dark in color. For continuation of effective scavenging, it is necessary periodically to clean the still to remove these black deposits.
3.How much copper is really needed?
a. Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.
b. Our systems are designed to give you the needed amount of copper for any distilled product. We can always add more copper to your system for a premium,if you require it.
4.Will someone from ACE train me on how to operate the equipment?
Because we specialize in equipment design and manufacturing, we recommend contacting a consultant regarding your particular product line. While we offer general guidelines, a consultant will be able to offer a more specific set of instructions, often tailored to the product(s) you plan on producing.
Wenzhou ACE Machinery Co., Ltd is founded in 2008 which is integrating scientific research, design, development, production, installation, after-sale service and consultation, is a high-tech industrial economic entity specializing in producing machinery, equipment and fittings. Its diversified and high quality products have met various demands in the fields of pharmacy, biology, chemical industry, food, dairy, beverage etc.
Wenzhou ACE Machinery Co., Ltd., is a high-tech industrial economic entity specializing in producing machinery, equipment and fittings. Its diversified and high quality products have met various demands in the fields of pharmacy, biology, chemical industry, food, dairy, beverage etc.
With the rapid progress of science and technology and the booming development in the information age, by adhering to the traditional operation concept and relying on rich experience in technology, we specialize in producing various tank products for traditional Chinese medicine extracting and concentrating, preparations and fine chemicals, packing machinery, small and medium-sized production lines and other series of products. All procedures including function design, energy data, material selection, welding technology, in-process quality control and appearance beautification are carefully planned and strictly controlled. The products are comparable to those in Europe, America, Japan and other countries and areas. The product quality conforms to the sanitation inspection standards for auxiliary equipment used in food, dairy, beverage and other industries.
