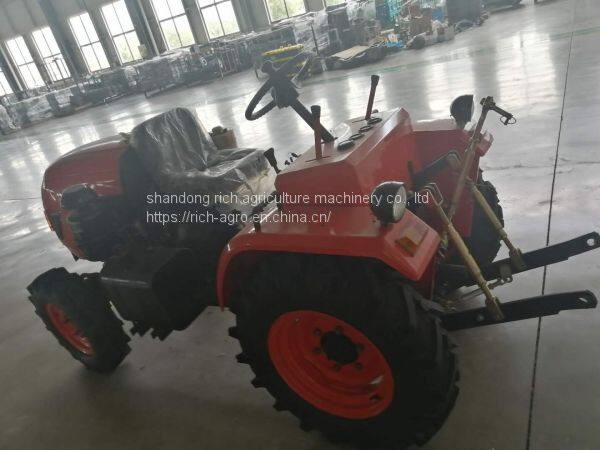

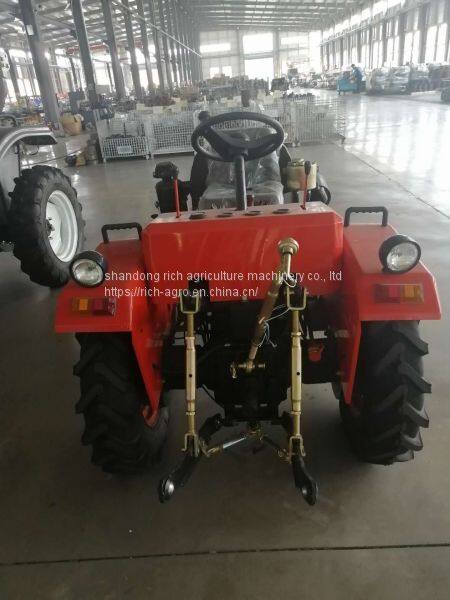

Four-drive Straight Tractor White 4 Wheel Drive Tractors For Lawn
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Rich
Place of Origin:
China
Type:
Walking Tractor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Related Products
-
Reversible Drive Four Wheel Tractor , Rear Drive Tractor With Garss MoverUS$ 3000 - 4000MOQ: 1 Set -
With 1730 Wheel Base 4wd / Hydraulic Steering Tractor Straight 4*4NegotiableMOQ: 1 Set
-
Straight Tractor Four-drive 4wd & Hydraulic Steering 3000x1500x1200 TractorNegotiableMOQ: 1 Set
-
Tractor Four-drive 4wd / Hydraulic Steering Dry / Single Sheet ClutchNegotiableMOQ: 1 Set
-
4*4 Tractor Straight 4wd & Hydraulic Steering Dry / Single Sheet ClutchNegotiableMOQ: 1 Set
Brand Name
Rich
Place of Origin
China
Type
Walking Tractor
After-sales Service Provided
Engineers available to service machinery overseas
Certificate
CE
Usage
Farm Tractor
Drive Type
Gear Drive
Condition
New
By wheel
2WD
Characteristic:
RH series compact tractor is an economic choice suitable for tight area opeartion such as lawn paddy field, orchard etc.
Equipped with 6+1 gearbox, 4WD and hydraulic steering. And air breake and multiway hydraulic output is optional.
Advantages:
1.By using side rotating structure, the working process of paddy field can be completed in one time.
2.Time saving, labor saving, greatly reducing the cost of farming.
3.Various types can be made according to the requirements of the customer
Parameter:
| model | TY254 | TY354 | TY404/504 | |
| drive type | 4*4 | 4*4 | 4*4 | |
| size(mm) | 3000*1500*1200 | 3000*1500*1800 | 3000*1500*2400 | |
| wheel thread(mm) | front | 1000/1100 | ||
| rear | 1200/1300 | |||
| wheel base(mm) | 1730 | 1730 | 1800 | |
| min ground clearance(mm) | 330 | 330 | 320 | |
| weight | 1200 | 1200 | 1360 | |
| tyre | front | 6.5-16 | ||
| rear | 11.2-24 | |||
| type of gearbox | (4+1)*2 | |||
| steering system | hydrualic steering | |||
| braking system | shoe brake | |||
| clutch | dry, single sheet, single action, constant conjunction | |||
| min turning radius(m) | single brake | 3.0±0.4 | 3.0±0.4 | 3.5±0.4 |
| without single brake | 3.7±0.4 | 3.7±0.4 | 4.2±0.4 | |
| theoretical speed(Forward/R/Creeper)(km/h) | 2.07-31.5/2.07-2.27/2.07-12.59 | |||
| PTO speed (r/min) | 540/720 | |||
| pump capacity(l/min) | 30 | |||
| hydraulic control system | pistion control | |||
| 3-point hitch | catagery I | |||
| engine model | KM385BT | 4L22BT | 4L100 | |
| engine type | 3/4 cylinder,in-ine,water cooling,4 stroke | cycle, direct injection | ||
| net power(hp) | 25 | 35 | 40/50 | |
| rated speed(r/min) | 2350 | 2350 | 2350 |
