Home > Transportation > Tractor & Parts > Tractor > Tractor Straight 4x4 Orchard & Awn Paddy Field Constant Conjunction Clutch

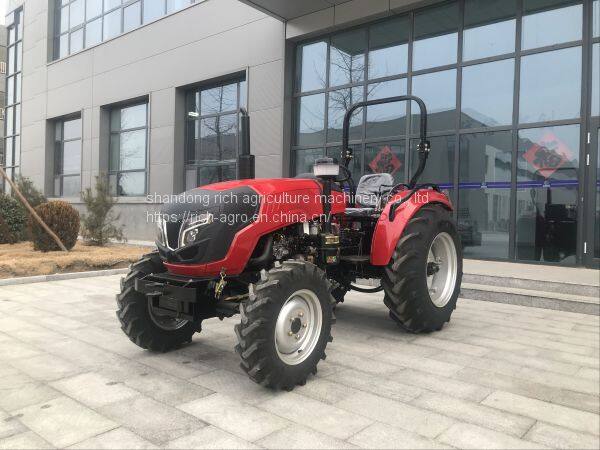

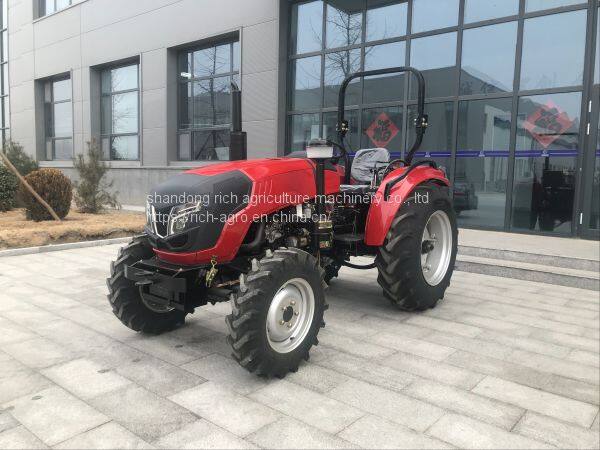

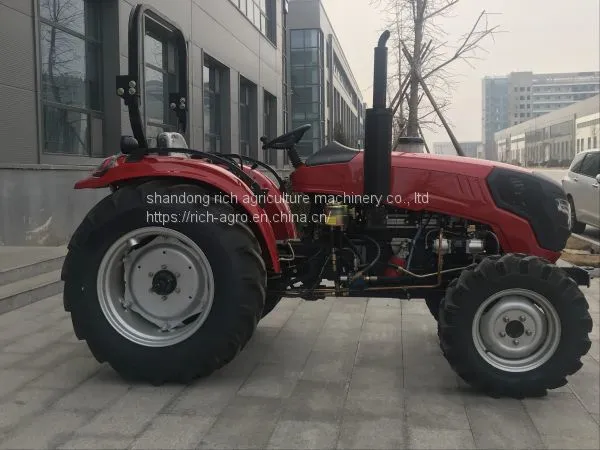

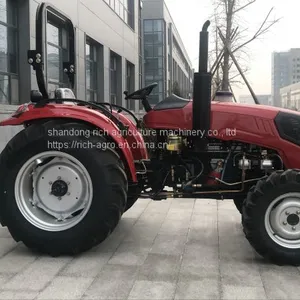

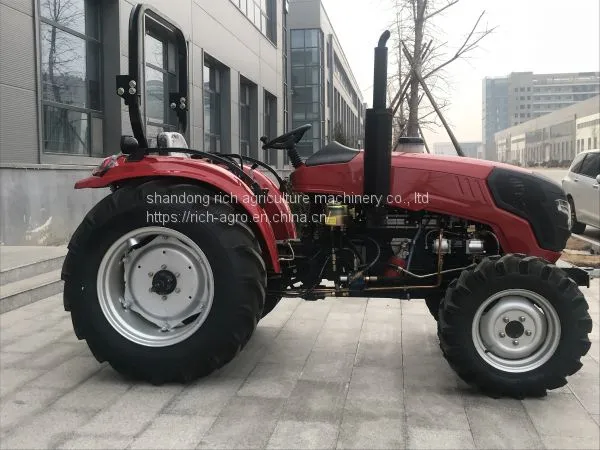

Tractor Straight 4x4 Orchard & Awn Paddy Field Constant Conjunction Clutch
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
After-sales Service Provided:
Engineers available to service machinery overseas
Place of Origin:
China
Model Number:
TY254
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
3000x1500x1200 Tractor Tractor Straight Four-drive Steering Hydraulic / 4wdNegotiableMOQ: 1 Set -
Orchard & Awn Paddy Field Straight Tractor Four-drive Tractor 3000x1500x1200NegotiableMOQ: 1 Set
-
Awn Paddy Field & Orchard Tractor Straight Tractor 3000*1500*1200NegotiableMOQ: 1 Set
-
With 1730 Wheel Base Tractor Four-drive 4wd & Hydraulic SteeringNegotiableMOQ: 1 Set
-
With Single Action Clutch Straight Tractor Four-drive 4wd / Hydraulic SteeringNegotiableMOQ: 1 Set
After-sales Service Provided
Engineers available to service machinery overseas
Place of Origin
China
Model Number
TY254
Brand Name
Rich
Certificate
CE
Drive Type
Gear Drive
Usage
Farm Tractor
By wheel
4WD
Condition
New
Advantages:
1.By using side rotating structure, the working process of paddy field can be completed in one time.
2.Time saving, labor saving, greatly reducing the cost of farming.
3.Various types can be made according to the requirements of the customer
Parameter:
| model | TY254 | TY354 | TY404/504 | |
| drive type | 4*4 | 4*4 | 4*4 | |
| size(mm) | 3000*1500*1200 | 3000*1500*1800 | 3000*1500*2400 | |
| wheel thread(mm) | front | 1000/1100 | ||
| rear | 1200/1300 | |||
| wheel base(mm) | 1730 | 1730 | 1800 | |
| min ground clearance(mm) | 330 | 330 | 320 | |
| weight | 1200 | 1200 | 1360 | |
| tyre | front | 6.5-16 | ||
| rear | 11.2-24 | |||
| type of gearbox | (4+1)*2 | |||
| steering system | hydrualic steering | |||
| braking system | shoe brake | |||
| clutch | dry, single sheet, single action, constant conjunction | |||
| min turning radius(m) | single brake | 3.0±0.4 | 3.0±0.4 | 3.5±0.4 |
| without single brake | 3.7±0.4 | 3.7±0.4 | 4.2±0.4 | |
| theoretical speed(Forward/R/Creeper)(km/h) | 2.07-31.5/2.07-2.27/2.07-12.59 | |||
| PTO speed (r/min) | 540/720 | |||
| pump capacity(l/min) | 30 | |||
| hydraulic control system | pistion control | |||
| 3-point hitch | catagery I | |||
| engine model | KM385BT | 4L22BT | 4L100 | |
| engine type | 3/4 cylinder,in-ine,water cooling,4 stroke | cycle, direct injection | ||
| net power(hp) | 25 | 35 | 40/50 | |
| rated speed(r/min) | 2350 | 2350 | 2350 |
RH series compact tractor is an economic choice suitable for tight area opeartion such as lawn paddy field, orchard etc.
Equipped with 6+1 gearbox, 4WD and hydraulic steering. And air breake and multiway hydraulic output is optional.
