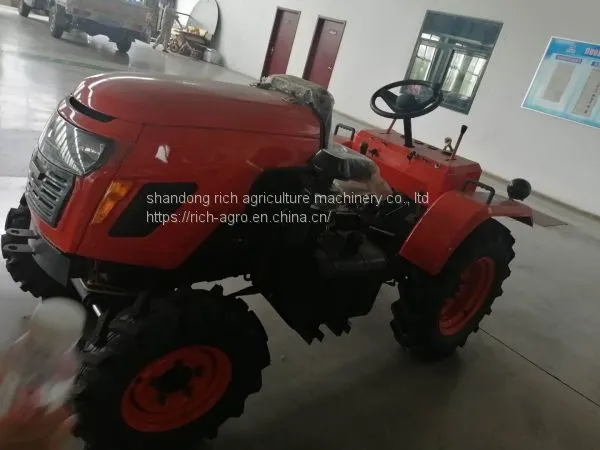

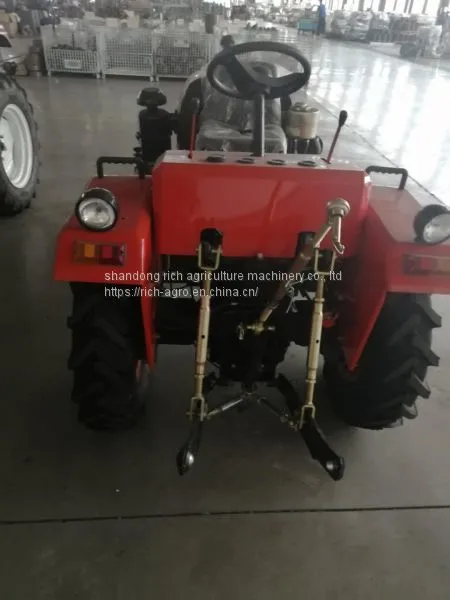

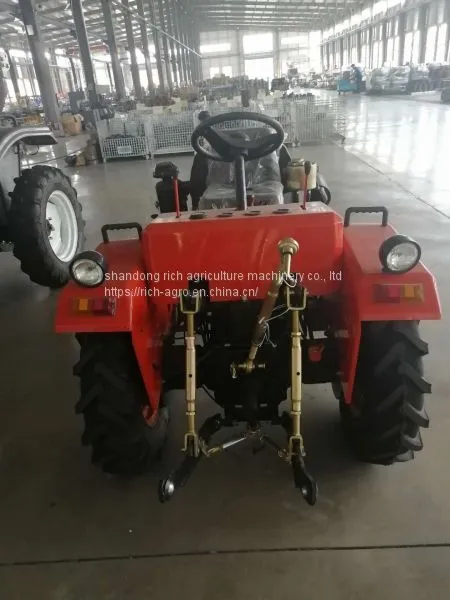

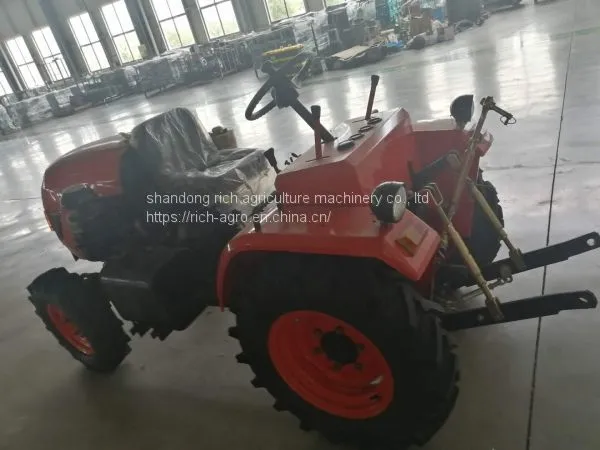

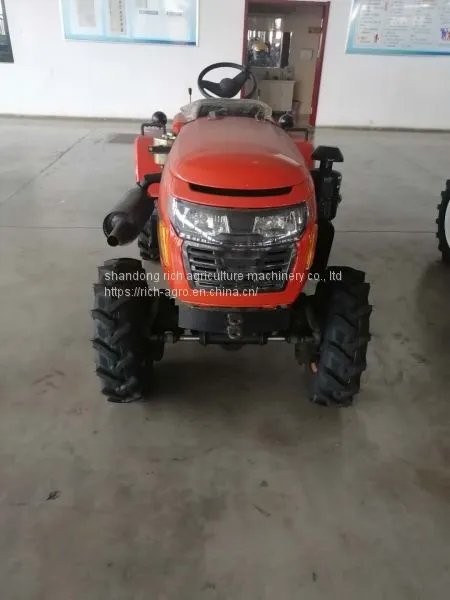

Tractor 4 Wheel Straight Four-drive Tractor For Lawn
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
After-sales Service Provided:
Engineers available to service machinery overseas
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Related Products
-
For Lawn White 4 Wheel Drive Tractors Tractor Straight Four-driveNegotiableMOQ: 1 Set -
Four-drive Straight Tractor 4 Wheel Drive Tractor For LawnNegotiableMOQ: 1 Set
-
Lawn Dedicated Tractor Straight Four-drive 4 Wheel TractorNegotiableMOQ: 1 Set
-
Straight Four-drive Tractor Four Wheel Tractor Price Lawn DedicatedNegotiableMOQ: 1 Set
-
Four-drive Straight Tractor Lawn Dedicated 4 Wheel Drive Garden TractorNegotiableMOQ: 1 Set
After-sales Service Provided
Engineers available to service machinery overseas
Place of Origin
China
Brand Name
Rich
Certificate
CE
Drive Type
Gear Drive
Usage
Farm Tractor
By wheel
2WD
Type
Walking Tractor
Condition
New
Advantages:
1.By using side rotating structure, the working process of paddy field can be completed in one time.
2.Time saving, labor saving, greatly reducing the cost of farming.
3.Various types can be made according to the requirements of the customer
Parameter:
| model | TY254 | TY354 | TY404/504 | |
| drive type | 4*4 | 4*4 | 4*4 | |
| size(mm) | 3000*1500*1200 | 3000*1500*1800 | 3000*1500*2400 | |
| wheel thread(mm) | front | 1000/1100 | ||
| rear | 1200/1300 | |||
| wheel base(mm) | 1730 | 1730 | 1800 | |
| min ground clearance(mm) | 330 | 330 | 320 | |
| weight | 1200 | 1200 | 1360 | |
| tyre | front | 6.5-16 | ||
| rear | 11.2-24 | |||
| type of gearbox | (4+1)*2 | |||
| steering system | hydrualic steering | |||
| braking system | shoe brake | |||
| clutch | dry, single sheet, single action, constant conjunction | |||
| min turning radius(m) | single brake | 3.0±0.4 | 3.0±0.4 | 3.5±0.4 |
| without single brake | 3.7±0.4 | 3.7±0.4 | 4.2±0.4 | |
| theoretical speed(Forward/R/Creeper)(km/h) | 2.07-31.5/2.07-2.27/2.07-12.59 | |||
| PTO speed (r/min) | 540/720 | |||
| pump capacity(l/min) | 30 | |||
| hydraulic control system | pistion control | |||
| 3-point hitch | catagery I | |||
| engine model | KM385BT | 4L22BT | 4L100 | |
| engine type | 3/4 cylinder,in-ine,water cooling,4 stroke | cycle, direct injection | ||
| net power(hp) | 25 | 35 | 40/50 | |
| rated speed(r/min) | 2350 | 2350 | 2350 |
Characteristic:
RH series compact tractor is an economic choice suitable for tight area opeartion such as lawn paddy field, orchard etc.
Equipped with 6+1 gearbox, 4WD and hydraulic steering. And air breake and multiway hydraulic output is optional.
