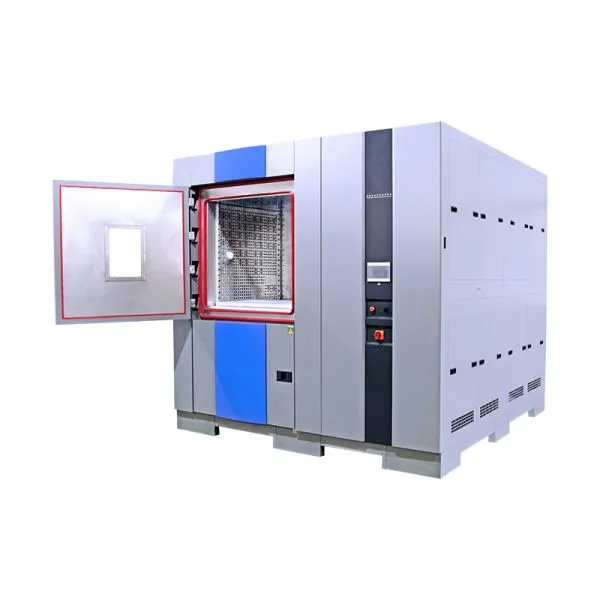

Cold and Heat Shock Test chambers for Military Samples
Chambers’ Explain
The cold and hot shock test box can also be called "cold and hot shock test machine" or "high and low temperature impact test box" or "high and low temperature impact test machine". According to market demand, impact test box can be divided into "two compartments" and "three compartments". Buyers must distinguish whether they need two compartments or three compartments. This is more important.
The purpose of DAMPER is to use low temperature and high temperature storage tanks to open the DAMPER according to the need of action and to introduce the hot and cold temperatures in storage tanks into the test tanks so as to achieve rapid temperature impact effect. The main purpose of DAMPER is to inspect the performance of products when the temperature changes rapidly so as to determine the reliability of products.
Chambers’ Usages
The cold and heat shock test chambers (cold and hot shock test boxes) are used to test the material structure or composite material, which can endure the continuous environment of high temperature and low temperature in an instant. It is suitable for scientific research, schools, factories, military and other units to use in electrical, electronic products, semiconductors, electronic circuit boards, metal materials, bearings and other materials with sharp temperature. Adaptability test under changing environment.
Chambers’ Parameters
Model |
TSD-36F-2P |
TSD-80F-2P |
TSD-100F-2P |
TSD-150F-2P |
TSD-252F-2P |
TSD-480F-2P |
|
Litre |
36L |
49L |
100L |
150L |
252L |
480L |
|
Test basket size(cm) |
35x30x35(W*D*H) |
40x35x35(W*D*H) |
40x50x50(W*D*H) |
60x50x50(W*D*H) |
70x60x60(W*D*H) |
85x80x60(W*D*H) |
|
External chamber size(cm) |
132x190x181(W*D*H) |
137x195x181(W*D*H) |
137x200x210(W*D*H) |
157x200x210(W*D*H) |
167x210x230(W*D*H) |
177x230x230(W*H*D) |
|
High temperature zone |
+60℃~+180℃ |
||||||
Heat up time |
+60℃~+180℃≦25min (Performance in high temperature zone individual working.) |
||||||
Low temperature zone |
-60℃~+10℃ |
||||||
Cooling time |
+20℃~-60℃≦60min (Performance in low temperature zone individual working.) |
||||||
Shocking temperature |
(+60℃~+150℃) to (-40℃~ -10℃) |
||||||
Performance |
Fluctuation |
±0.5℃ |
|||||
Deviation |
±2.0℃ |
||||||
Recover time |
≦5min |
||||||
Handover time |
≦10sec |
||||||
Noise |
≦65db |
||||||
Material |
External material |
Anti-rust treatment of cold rolled steel plate + 2688 powder coating/SUS#304 steel stainless. |
|||||
Internal material |
Steel stainless (SUS304, 2B polishing processing). |
||||||
Insulating material |
Enclosure by rigid polyurethane foam, door by glass wool. |
||||||
Refrigeration system |
Refrigerating method |
Mechanical bipolar compression refrigeration. (Air cooled condenser/Water cooled heat ex-changer.) |
|||||
Compressor |
Totally enclosed Tecumseh France compressor and semi-hermetic Bitzer Germany for optional. |
||||||
Compressor refrigerating capacity |
3.0HP*2 |
4.0HP*2 |
4.0HP*2 |
6.0HP*2 |
7.0HP*2 |
10.0HP*2 |
|
Expansion way |
Electronic automatic expansion mode or capillary mode. |
||||||
Cooled way |
Air cooled/water cooled for optional. |
||||||
Heater |
Nickel complex gold heater (Surface evaporation type) |
||||||
Humidifier |
SUS#316 jacket type humidifier. |
||||||
Air blower (Stir inside) |
Macro-axis motor750W*2 (Siemens) |
||||||
Power |
AC 3Φ 380V 50/60Hz |
||||||
Max. Current |
AC380V |
20A |
23.5A |
23.5A |
26.5A |
31.5A |
35.0A |
Weight(kg) |
500 |
525 |
545 |
560 |
700 |
730 |
|
Customization |
Customized according to customers’ details requirements are available. |
||||||
