Ceiling Installation Recuperator/ventilation/air Handing Unit With Quiet Operation HEPA H13 Filter

FOB Price

US$ 255 - 295 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T PayPal Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MIA	Place of Origin	China
Model Number	MIA-JD50SXL	Certification	CE, ROHS
Voltage (V)	220	Power (W)	128
Installation	Other, Ceiling Easy Installation

Product Description

Overview

Quick Details

Warranty:
More than 5 Years

After-sale Service:
Online Technical Support, Return and Replacement

Project Solution Capability:
N/A

Application:
HOTEL

Design Style:
traditional

Place of Origin:
Jiangsu, China

Brand Name:
MIA

Model Number:
MIA-JD50SXL

Voltage:
AC 220V

Power:
128W

Air Flow:
500m3/h

Pressure:
160Pa

Noise:
30dB(A)

Size:
800*714*260mm

Hole Diameter:
150mm

Weight:
22kg

Color:
Customize

Certification:
RoHS CE EMC ERP LVD ISO9001

Packaging & Delivery

Selling Units:
Single item

Single package size:
96.5X76X30.5 cm

Single gross weight:
44.000 kg

Package Type:
CE Certificate 150 m3/h Ceiling Type Home Ventilator System Fresh Air Purifier for Small Home
Standard export packing.

Picture Example:

Lead Time :
Quantity(Sets) 1 - 20 21 - 50 51 - 200 >200
Est. Time(days) 7 10 15 To be negotiated

Product Details

Ceiling installation Recuperator/ventilation/air Handing Unit With Quiet Operation HEPA H13 filter

We also can produce this machine with :

1.Early effect activated carbon filter +HEPA H13 Filter

2.Early effect activated carbon filter +HEPA H13 Filter+High-voltage Electrostatic Dust Filter

87648 hours long warranty period!

Model in "SXL" with G4 filter
Model is "GL.SXL" with G4 and H13 filters
Modle in "JD.SXL" with G4, H13 and High-voltage electrostatic dust filters.

How to calculate the air volume?
1. Number of people × 30 m3/h
Fresh Airflow Standard: 30 m3/h/person(Different environments with different standards.

2.Room size × Floor height × Fresh air change rate (times/m3/h)
According to the size of room and fresh air change rate per hour.

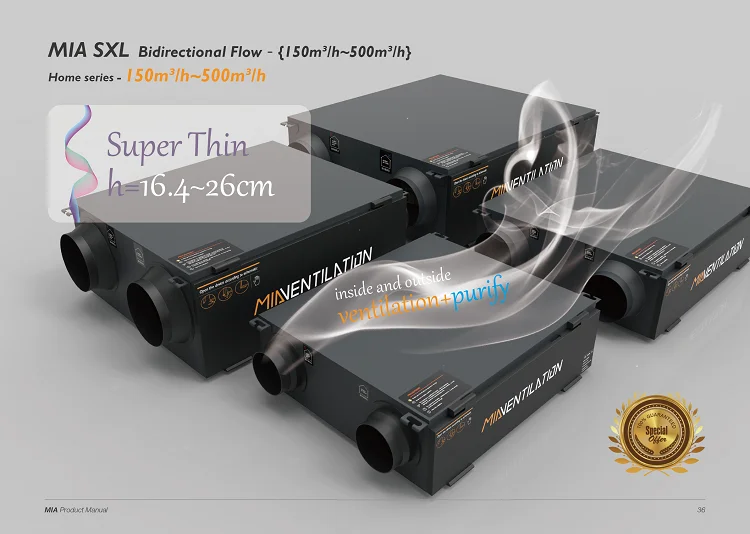

Model	Voltage (AC)	Power (W)	Volume(m3/h)	Pressure(Pa)	Noise dB(A)	Weight(kg)
MIA-JD15SXL	220	73	150	115	26	16.8
MIA-JD25SXL	220	82	250	132	28	19.8
MIA-JD35SXL	220	96	350	140	29	23.2
MIA-JD50SXL	220	128	500	160	30	24.6
MIA-JD80SXL	220	188	800	160	36	33.2
MIA-JD100SXL	220	266	1000	170	36	35
MIA-JD130SXL	220	266	1300	170	38	29
MIA-JD150SXL	220	298	1500	175	44	29
MIA-JD170SXL	220	315	1700	180	46	29.5
MIA-JD200SXL	220	335	2000	205	48	38.5
MIA-JD220SXL	220	352	2200	210	49	38.8
MIA-JD250SXL	220	420	2500	260	51	39
MIA-JD300SXL	220	510	3000	260	52	44
MIA-JD350SXL	220	580	3500	265	55	44
MIA-JD400SXL	220	710	4000	280	57	62
MIA-JD450SXL	220	820	4500	285	61	62
MIA-JD500SXL	220	920	5000	320	64	68
MIA-JD550SXL	220	1020	5500	320	64	68
MIA-JD600SXL	220	1280	6000	330	65	80
MIA-JD650SXL	220	1662	6500	330	66	82

Product Details Show

Early Effect Activated Carbon（G4)

The sealing property is far more than the paper border with using the plastic margin. The Filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon powder can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

ion Dust Collection sterilization

With pin type electric discharge way,the iron dust collection sterilization can replace the traditional tungsten filament high-pressure electrostatic dust collection.It`s thickness is only 4cm,can be suitable for all kinds of models.The removal rate of PM2.5 is highly to 98%,so that can effectively kill the bacteria and prevent the infection.It`s washable also can be cleaned with brush and will not increase the using cost!

HEPA(H13)

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard- H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

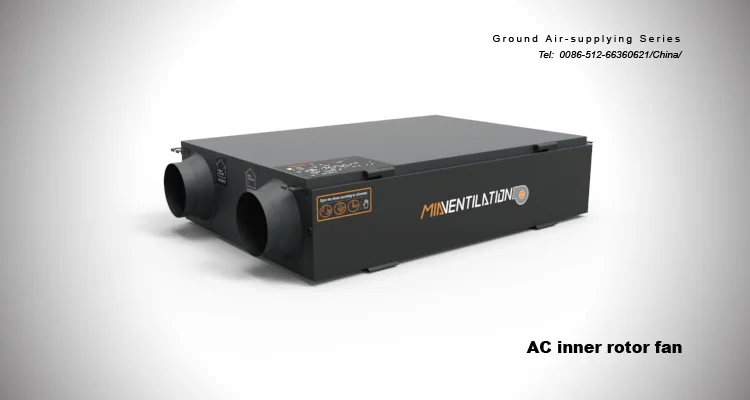

Name:Console Type ERV(AC outer rotor fan)

Model:	MIA-JD50SXL
Voltage:	220V	Noise:	30dB(A)
Power:	128W	Volume:	500m3/h

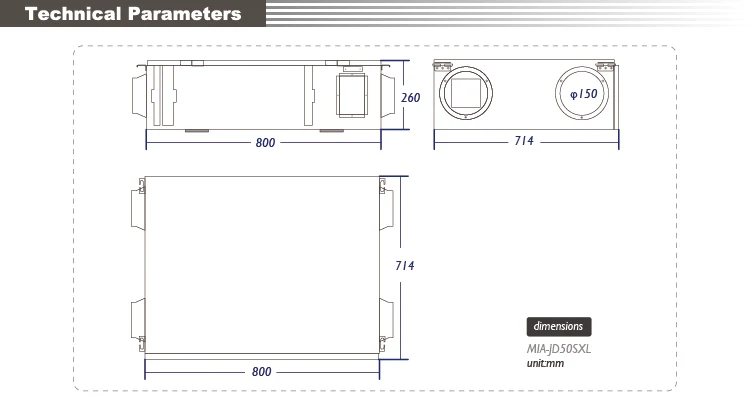

Motor:	AC inner motor	Size:	800714260mm
Pressure:	160Pa	Hole Size:	150mm
Weight:	22 kg	Warranty:	10 years

Product Display

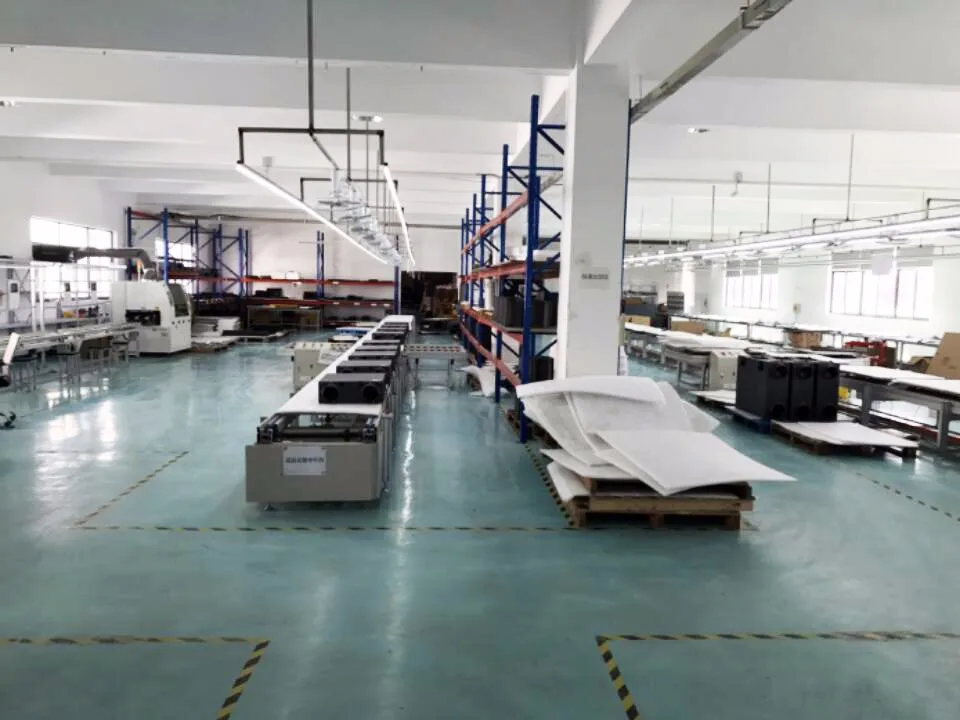

Why Choose Us

About us:
MIA founded in 1983,was a manufacturer with large-scale production capacity,focusing on the production research and development of environmental ventilation equipments,such like Heat Recovery Ventilation (HRV), Ventilation Fans and Air Purifier etc .The Japanese team exclusively develops and provides technical support. MIA products were exported to over 70 countries,our aim is to delivery the indoor air quality to the world!
Our Service:
1.Ten years long warranty period!
2.Pro-sales:Help the clients calculate the air flow and choose the most suitable products with one-stop service .
3.After-service:Detailed technical support for your installation until the machine works well!
4.Most of our products have in stock here, it can be sent out for you ASAP!
5.CE, ROHS, ERP, LVD, EMC, ISO9001,SGS certifications.
6.OEM is supported!

Product Packing
