AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel

AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel thumbnail-1
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel thumbnail-2
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel thumbnail-3
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel thumbnail-4
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel thumbnail-5
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel photo-1
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel photo-2
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel photo-3
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel photo-4
AC Units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel photo-5
US$ 960 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Place of Origin:
China
Model Number:
MIA-JD220SXL
Contact Supplier Request Quote Chat Now
Suzhou Mia Intelligent Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Place of Origin China
Model Number MIA-JD220SXL
Certification CE, ROHS
Voltage (V) 220
Power (W) 352
Installation Other, Ceiling Easy Installation
Overview
Quick Details

  • Warranty:

  • More than 5 Years

  • After-sale Service:

  • Online Technical Support, Return and Replacement

  • Project Solution Capability:

  • N/A

  • Application:

  • HOTEL

  • Design Style:

  • traditional

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Model Number:

  • MIA-JD220SXL

  • Voltage:

  • AC 220V

  • Power:

  • 352W

  • Air Flow:

  • 2200m3/h

  • Pressure:

  • 210Pa

  • Noise:

  • 49dB(A)

  • Size:

  • 850*746*332mm

  • Hole Diameter:

  • 250mm

  • Weight:

  • 38.8kg

  • Color:

  • Customize

  • Certification:

  • RoHS CE EMC ERP LVD ISO9001
Packaging & Delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 106X110.5X48 cm

  • Single gross weight:

  • 77.600 kg

  • Package Type:

  • Carton Box + Wooden Case Packing

  • Picture Example:

  • package-img



    package-img

  • Lead Time :

  • Quantity(Sets) 1 - 20 21 - 50 51 - 200 >200
    Est. Time(days) 7 10 15 To be negotiated
Product Details
AC units High Efficiency Silent Duct Ventilation Fan Fresh Air Ventilation Systems For Hotel
We also can produce this machine with :
1.Early effect activated carbon filter +HEPA H13 Filter
2.Early effect activated carbon filter +HEPA H13 Filter+High-voltage Electrostatic Dust Filter

 87648 hours long warranty period!

Model in "SXL" with G4 filter
Model is "GL.SXL" with G4 and H13 filters
Modle in "JD.SXL" with G4, H13 and High-voltage electrostatic dust filters.
How to calculate the air volume?
1. Number of people × 30 m3/h
    Fresh Airflow Standard: 30 m3/h/person(Different environments with different standards.

2.Room size × Floor height × Fresh air change rate (times/m3/h)
   According to the size of room and fresh air change rate per hour.
Model
Voltage (AC)
Power (W)
Volume(m3/h)
Pressure(Pa)
Noise dB(A)
Weight(kg)
MIA-JD15SXL
220
73
150
115
26
16.8
MIA-JD25SXL
220
82
250
132
28
19.8
MIA-JD35SXL
220
96
350
140
29
23.2
MIA-JD50SXL
220
128
500
160
30
24.6
MIA-JD80SXL
220
188
800
160
36
33.2
MIA-JD100SXL
220
266
1000
170
36
35
MIA-JD130SXL
220
266
1300
170
38
29
MIA-JD150SXL
220
298
1500
175
44
29
MIA-JD170SXL
220
315
1700
180
46
29.5
MIA-JD200SXL
220
335
2000
205
48
38.5
MIA-JD220SXL
220
352
2200
210
49
38.8
MIA-JD250SXL
220
420
2500
260
51
39
MIA-JD300SXL
220
510
3000
260
52
44
MIA-JD350SXL
220
580
3500
265
55
44
MIA-JD400SXL
220
710
4000
280
57
62
MIA-JD450SXL
220
820
4500
285
61
62
MIA-JD500SXL
220
920
5000
320
64
68
MIA-JD550SXL
220
1020
5500
320
64
68
MIA-JD600SXL
220
1280
6000
330
65
80
MIA-JD650SXL
220
1662
6500
330
66
82
Product Details Show
Early Effect Activated Carbon（G4)

The sealing property is far more than the paper border with using the plastic margin. The Filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon powder can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

ion Dust Collection sterilization

With pin type electric discharge way,the iron dust collection sterilization can replace the traditional tungsten filament high-pressure electrostatic dust collection.It`s thickness is only 4cm,can be suitable for all kinds of models.The removal rate of PM2.5 is highly to 98%,so that can effectively kill the bacteria and prevent the infection.It`s washable also can be cleaned with brush and will not increase the using cost!

HEPA(H13)

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard- H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

Name:Console Type ERV(AC outer rotor fan)
Model:
MIA-JD220SXL
Voltage:
220V
Noise:
49dB(A)
Power:
352W
Volume:
2200m3/h
Motor:
AC inner motor

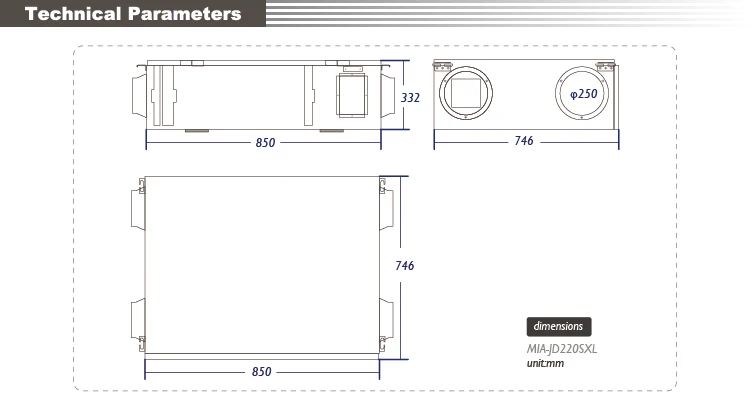

Size:
850*746*332mm
Pressure:
210Pa
Hole Size:
250mm
Weight:
38.8kg
Warranty:
10 years
Product Display
Why Choose Us

About us:
MIA founded in 1983,was a manufacturer with large-scale production capacity,focusing on the production research and development of environmental ventilation equipments,such like Heat Recovery Ventilation (HRV), Ventilation Fans and Air Purifier etc .The Japanese team exclusively develops and provides technical support. MIA products were exported to over 70 countries,our aim is to delivery the indoor air quality to the world!
Our Service:
1.Ten years long warranty period!
2.Pro-sales:Help the clients calculate the air flow and choose the most suitable products with one-stop service .
3.After-service:Detailed technical support for your installation until the machine works well!
4.Most of our products have in stock here, it can be sent out for you ASAP!
5.CE, ROHS, ERP, LVD, EMC, ISO9001,SGS certifications.
6.OEM is supported!

Product Packing
