Csbattery 12V100ah Long Life Gel Solar Battery for Wind-Power-Storage/Solar-Street-Lights/Power-Bank

------------------------------------------------------------------------------
CSBattery High-Temp Long Life GEL Deep Cycle Battery HTB12-100 sepcidication

HTB12-100
Nominal Voltage			12V (6 cells per unit)
Design Floating Life @ 25ºC			20 Years
Nominal Capacity @ 25ºC		20 hour rate@ 21.0A, 5.4V	100Ah
Capacity @ 25ºC		10 hour rate (37.8A, 5.4V)	90Ah
		5 hour rate (66.8A, 5.25V)	79.5Ah
		1 hour rate (233.3A, 4.8V)	55.6Ah
Internal Resistance		Full Charged Battery@ 25ºC	≤5.3mΩ
Ambient Temperature		Discharge	-25ºC~60ºC
		Charge	-25ºC~60ºC
		Storage	-25ºC~60ºC
Max.Discharge Current			@ 25ºC 540A(5s)
Capacity affected by Temperature (10 hour )		40ºC	108%
		25ºC	100%
		0ºC	90%
		-15ºC	70%
Self-Discharge@25ºCper Month			3%
Charge (Constant Voltage) @ 25ºC	Standby Use	Initial Charging Current Less than 22.5A Voltage 13.6 - 13.8V
	Cycle Use	Initial Charging Current Less than 22.5A Voltage 13.6 - 13.8V
Dimension (mm*mm*mm)	Length 307±1 * Width 169±1 * Height  211±1 (Total Height 216±1)
Weight (kg)	30.5±3%

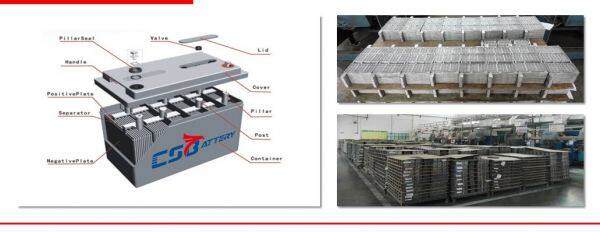

CSBattery Product Structure

Applicationg for HTB High Temperature Deep Cycle GELBattery:

CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

Product specifications and models
----------------------------------------------------------

High temperature Long Life Deep Cycle 12V  GEL BATTERY  Module list
Model	Nominal Voltage (V)	Capacity (Ah)	Dimension (mm)				Net Weight	Gross Weight	Terminal
			Length	Width	Height	Total Height	kgs	kgs
HTB12-14	12	14	152	99	96	102	3.8	3.9	F1/F2
HTB12-20	12	20	181	77	167	167	6	6.1	T1/L1
HTB12-24	12	24	166	175	126	126	8.3	8.4	M6
HTB12-26	12	26	165	126	174	179	8.4	8.5	M6
HTB12-35	12	35	196	130	155	167	10.5	10.7	M6
HTB12-40	12	40	198	166	174	174	14.2	14.4	M6
HTB12-55	12	55	229	138	208	212	16	16.5	M6
HTB12-70	12	70	350	167	178	178	23.3	23.8	M6
HTB12-75	12	75	260	169	208	227	25	25.5	M6
HTB12-85	12	85	260	169	208	227	26.1	26.6	M6
HTB12-90	12	90	307	169	211	216	28.2	28.7	M6
HTB12-100	12	100	307	169	211	216	30.2	30.7	M6
HTB12-110	12	110	328	172	218	222	33.5	34	M8
HTB12-120	12	120	407	173	210	233	39.2	39.7	M8
HTB12-135	12	135	344	172	280	285	40.8	41.3	M8
HTB12-150	12	150	484	171	241	241	45.5	46	M8
HTB12-180	12	180	532	206	216	222	56	56.5	M8
HTB12-200	12	200	532	206	216	222	58.6	59.1	M8
HTB12-230	12	230	522	240	219	225	65	65.5	M8
HTB12-250	12	250	520	269	203	207	71	71.5	M8
HTB12-300	12	300	520	269	220	226	77	77.5	M8
