Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities

Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities thumbnail-1
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities thumbnail-2
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities thumbnail-3
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities thumbnail-4
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities thumbnail-5
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities photo-1
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities photo-2
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities photo-3
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities photo-4
Csbattery 2V1000ah Solar Storage Tubular Opzv Gel Battery for Security System/Telecom/Electric Utilities photo-5
US$ 247.03 - 257.07 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
CSBattery
Place of Origin:
China
Model Number:
OPzv2-1000
Contact Supplier Request Quote Chat Now
CSBattery ENERGY CO., LIMITED
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shengzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CSBattery
Place of Origin China
Model Number OPzv2-1000
Type Other, Lead Acid
Size Other, 233*210*666*681
Nominal Capacity OPzV2-1000Ah
Nominal Voltage Other, 2V

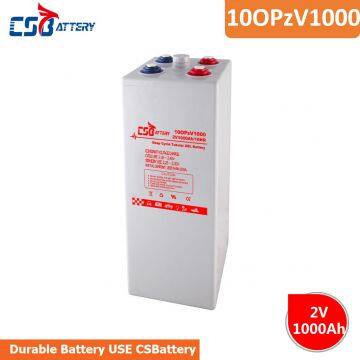

CSBattery OPzV Tubular GEL Battery 10OPzV1000


-------------------------------------------------------------------------------------

CSBattery OPzV Tubular GEL Battery 10OPzV1000 sepcidication

10OPzV2-1000
Nominal Voltage  2V(Single Cell)
Design Floating Life @ 25ºC  25 Years
Nominal Capacity @ 25ºC  10 hour rate@100.0A,1.8V  1000Ah
Capacity @ 25ºC 20hour rate (52.5A,1.8V ) 1050Ah
5 hour rate (170A,1.75V ) 850Ah
1 hour rate (632A,1.6V ) 632Ah
Internal Resistance  Full Charged Battery@ 25ºC ≤0.27mΩ
Ambient Temperature Discharge -40ºC~70ºC
Charge  -0ºC~50ºC
Storage  -20ºC~60ºC
Max.Discharge Current  @ 25ºC 3800A(5s)
Capacity affected by Temperature (10 hour ) 40ºC  105%
25ºC  100%
0ºC  89%
-15ºC 79%
Self-Discharge@25ºCper Month  2%
Charge (Constant Voltage) @ 25ºC Standby Use  Initial Charging Current Less than 200.0A Voltage 2.25-2.3V
Cycle Use Initial Charging Current Less than 200.0A Voltage 2.37-2.4V
Dimension (mm*mm*mm) Length 233±1 * Width 210±1 * Height  666±1 (Total Height 681±1)
Weight (kg)  78±3%



Applicationg for GB Durable AGM VRLA Battery:
ØElectric Powered Vehicles ØWheel Chairs ØBTS Stations ØMedical Equipment Ø Solar and Wind ØGolf Cars and Buggies  ØPower Tools ØControl System ØUPS systems ØEmergency systems



CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable
Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life
GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as
Solar inverter, Solar charger controller, Solar panel and so on.


Product specifications and models
----------------------------------------------------------
2V OPzV Tubular GEL SEALED FREE MAINTENANCE BATTERY
Model Nominal Voltage (V) Capacity (Ah)  Dimension (mm) Net Weight Gross Weight Terminal
Length Width Height Total Height kgs kgs
4OPzV200 2 200 103 206 375 390 18 19 M8
5OPzV250 2 250 124 206 375 390 22.5 23.5 M8
6OPzV300 2 300 145 206 375 390 25 26 M8
5OPzV350 2 350 124 206 473 505 28 29 M8
6OPzV420 2 420 145 206 473 505 32 33 M8
7OPzV490 2 490 166 206 491 506 38 39 M8

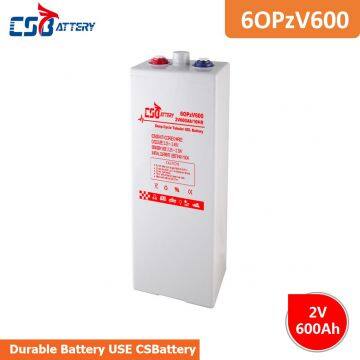

6OPzV600 2 600 145 206 666 681 46 47 M8

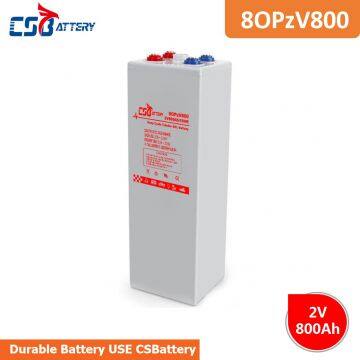

8OPzV800 2 800 191 210 666 681 65 66 M8
10OPzV1000 2 1000 233 210 666 681 74 75 M8

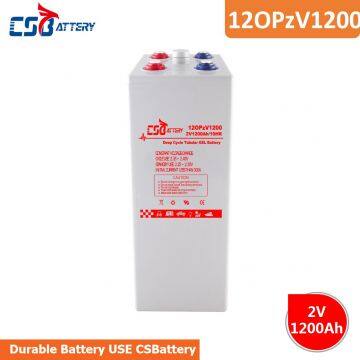

12OPzV1200 2 1200 275 210 666 681 93 94 M8
12OPzV1500 2 1500 275 210 795 831 112 113 M8
16OPzV2000 2 2000 399 214 792 807 152 153 M8
24OPzV2500 2 2500 487 212 792 807 187 188 M8
24OPzV3000 2 3000 576 212 792 807 225 226 M8
12VOPzV100 12 100 407 177 225 225 36 37 M8
12VOPzV140 12 140 532 207 214 219 53.5 54.5 M8
12VOPzV160 12 160 532 207 214 219 57 58 M8
12VOPzV200 12 200 521 262 220 225 73 74 M8
