Csbattery 8V200ah Energy Storage Gel Solar Battery for Wind-Power-Storage/Solar-Street-Lights/Lamp

Name: Csbattery 8V200ah Energy Storage Gel Solar Battery for Wind-Power-Storage/Solar-Street-Lights/Lamp
Brand: CSBattery
Availability: InStock

FOB Price

US$ 120.25 - 125.66 / Piece

24 Pieces(Min. Order)

Port Shengzhen
Payment TermsT/T Credit Card Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CSBattery	Place of Origin	China
Model Number	HTB8-200	Type	Other, lead Acid
Size	Other, 306168220*222	Nominal Capacity	8V200Ah
Nominal Voltage	Other, 8V

Product Description

CSBattery High-Temp Long Life GEL Deep Cycle Battery HTB 8-200

-------------------------------------------------------------------------------------
CSBattery High-Temp Long Life GEL Deep Cycle Battery HTB8-200 sepcidication

HTB8-200
Nominal Voltage			8V (4 cells per unit)
Design Floating Life @ 25ºC			20 Years
Nominal Capacity @ 25ºC		20 hour rate@ 10.0A, 5.4V	200Ah
Capacity @ 25ºC		10 hour rate (18.0A, 5.4V)	180Ah
		5 hour rate (31.8A, 5.25V)	159Ah
		1 hour rate (115.5A, 4.8V))	115.5Ah
Internal Resistance		Full Charged Battery@ 25ºC	≤3.0mΩ
Ambient Temperature		Discharge	-15ºC~45ºC
		Charge	-15ºC~45ºC
		Storage	-15ºC~45ºC
Max.Discharge Current			@ 25ºC 600A(5s)
Capacity affected by Temperature (10 hour )		40ºC	108%
		25ºC	100%
		0ºC	90%
		-15ºC	70%
Self-Discharge@25ºCper Month			3%
Charge (Constant Voltage) @ 25ºC	Standby Use	Initial Charging Current Less than 40A Voltage 9.07-9.2V
	Cycle Use	Initial Charging Current Less than 40A Voltage 9.6-9.94V
Dimension (mmmmmm)	Length 260±1 * Width 182±1 * Height 295±1 (Total Height 300±1)
Weight (kg)	39.5±3%

Applicationg for HTB High Temperature Deep Cycle GELBattery:
ØElectric Powered Vehicles ØWheel Chairs ØBTS Stations ØMedical Equipment Ø Solar and Wind ØGolf Cars and Buggies ØPower Tools ØControl System ØUPS systems ØEmergency systems

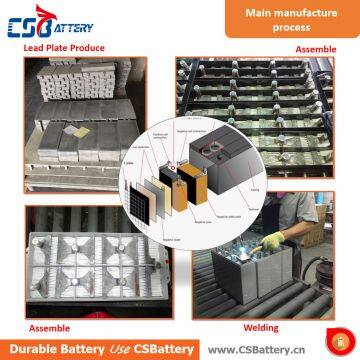

CSBattery Factory
CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable

Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life
GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as
Solar inverter, Solar charger controller, Solar panel and so on.

Product specifications and models
-----------------------------------------------------

High temperature Long Life Deep Cycle 6V 8V GEL BATTERY Model List
Model	Nominal Voltage (V)	Capacity (Ah)	Dimension (mm)				Net Weight	Gross Weight	Terminal
Model	Nominal Voltage (V)	Capacity (Ah)	Length	Width	Height	Total Height	kgs	kgs	Terminal
HTB6-200	6	200	306	168	220	222	30	30.1	M8
HTB6-210	6	210	260	180	247	249	29.5	29.6	M8
HTB6-220	6	220	306	168	220	222	31.5	31.6	M8
HTB6-225	6	225	243	187	275	275	30.5	30.6	M8
HTB6-250	6	250	260	180	265	272	34.5	34.6	M8
HTB6-310	6	310	295	178	346	366	46	46.2	M8
HTB6-330	6	330	295	178	354	360	46.6	46.8	M8
HTB6-380	6	380	295	178	404	410	55.3	55.8	M8
HTB6-420	6	420	295	178	404	410	56.8	57.3	M8
HTB8-170	8	170	260	182	266	271	34.3	34.8	M8
HTB8-200	8	170	260	182	295	300	38.3	38.8	M8
