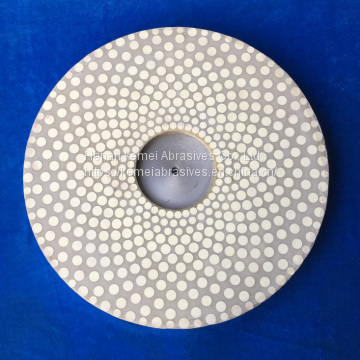

Help CenterCeramic Diamond Grinding Disc
Related Products
-
Ceramic Diamond、CBN Grinding Wheel Special for PCD PCBN Knife ToolsNegotiableMOQ: 30 Pieces -
Non-standard Grinding Wheel Electroplated Grinding WheelNegotiableMOQ: 30 Pieces
-
High-quality Diamond Internal Grinding Head, CBN Internal Grinding Wheel, Ceramic Grinding HeadNegotiableMOQ: 50 Pieces
-
Ultra-thin Diamond Cutting Slice Bronze Sintered Metal Slice Special for Cutting CrystalNegotiableMOQ: 100 Pieces
-
Non-standard Electroplated Roll Wheel Alloy Grinding Wheel Metal Grinding Wheel ManufactureNegotiableMOQ: 30 Pieces
Model:200*75*20(mm)
Material:Diamond
Bond:Ceramic
Abrasive grain size:32# 46#50# 60# 80# 120# 200# 300# 500# 1200#
Shape:Parallel
Craft:Sintered
Hardness:K/L/M
External diameter:75、100、125、150、175、200、300、500、800(mm)etc.
Thickness:5、10、15、20、25、30、35、40、50（mm）etc.
Hole diameter:25、32、50、75、100、110、125（mm）etc.
Ceramic diamond/CBN grinding disc are widely used in the precision grinding bearing end face, piston ring, gasket, interstitial sheet, compressor parts, blade pump stator, rotor, blade end face, semiconductor material, magnetic material, cutter, precision spring, stainless steel, aluminum alloy metal, sapphire substrate, sapphire window, etc.
Grinding wheel specifications Ф 100 ~ Ф 1200 mm. The number of machining parts of each grinding wheel is 500000 ~ 1500000, the roughness: Ra0.05 m to Ra0.2 m, the flatness ≤2 m, ∥≤2 m. The dimensional error between single plate parts is 1 ~ 2 m.
Applicable equipment: imported machine tools from Japan Guangyang, Japan Fuji, Germany Peter Walter, Italy, Britain Leimart, etc. It is suitable for qinchuan development, Shanghai Suotu, Hangzhou machine tool, Xinxiang machine Tool Factory and other domestic double end face grinding machines.
Welcome inquiry~
