PARKER RFP050-40NPXL Large Flow Rate Water Filter for Power Plant Water Treatment

PARKER High Flow Rate Water Filter profile:

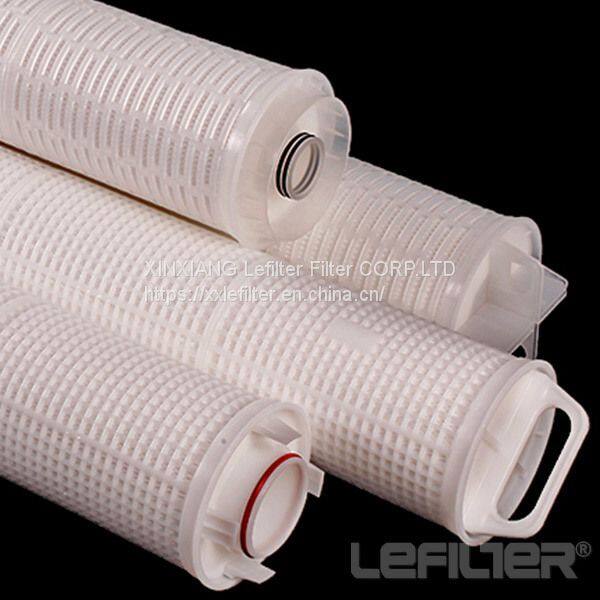

Parker's high-flow filter element provides a solution to effectively replace deep-layer and other 2-1/2" inner diameter filter elements in high-flow situations, such as reverse osmosis prefiltration and similar nominal efficiency requirements. Each Parker ( PAKER) large flow filter element can handle flow rate up to 1300LPM, which significantly reduces the number and size of filter elements. The processing capacity of a PAKER large flow filter element is equivalent to 10 filter elements with an inner diameter of 2-1/2” and a length of 40”. Quantity. The positively charged O-ring seal and the built-in handle make the installation of the filter element fast, safe and convenient.

PARKER High Flow Rate Water Filter product Features:

1.The filter element has large dirt holding capacity and long service life

2.Less replacement times to reduce labor costs

3.The design of the sealed interface reduces the risk of side flow and improves the filtration efficiency

4.Easy to install, low labor cost

5.A wide range of chemical applications can be used in a variety of fields

PARKER High Flow Rate Water Filter technical specifications:

PARKER High Flow Rate Water Filter Application areas:

1.RO security filtration, seawater desalination pretreatment

2. Power plant condensate filtration

3. Filtration of raw materials, solvents and water in the biopharmaceutical industry

4.Bottled water, sugar liquid, edible oil, fruit juice, soft drink, milk filtration

5. Paint, ink, CD, magnetic medium, petrochemical industry, refining

6. Microelectronics, film, fiber, resin

Company products comply with  test standards:

Filter element-rupture resistance verification according to ISO 2941
Filter element-structural integrity according to ISO 2942
Filter element-material and liquid communication compatibility verification according to ISO 2943
Filter element-end load test method according to ISO3723
Filter element-the determination of the fatigue characteristics of the filter element is in accordance with ISO3724
Filter element-Measurement of differential pressure and flow characteristics according to ISO3968
