Help CenterFish Feed Making Machine
Related Products

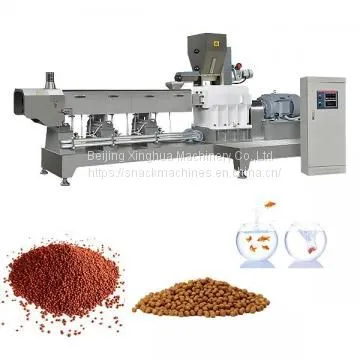

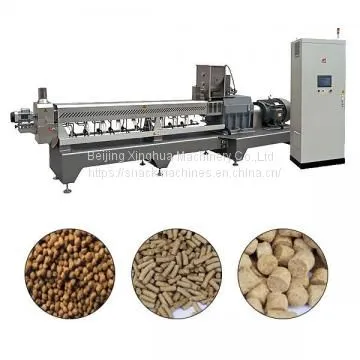

The fish feed making machine was designed to make fish feed,pet feed,and other animal feed,it was taking meat meal, fish meal, bone meal, corn meal, soybean meal, grain flour etc. as the mainly raw materials. by changing fish feed recipe, temperature, molds and others, can produces fish pellet food in different shape,color.taste.The feed pellets produced by our fish feed production line have high protein content,can make fish growth fast&healthy, with good nutrient absorption, lower waste of feed,less damage to water quality.By changing the formula and operation process, it can produce floating fish feed and sinking fish feed.
HOW TO MAKE GOOD QUALITY FISH FEED PELLETS?
1. APPLICATION OF FISH FEED PELLET
Material |
Fish meal, bone meal, corn meal, soybean meal, grain flour |
Usage |
Catfish, grass carp, crucian carp, tilapia, ornamental fish, turtle, bullfrog |
Fish pellet food |
1mm, 1.5mm, 2.0mm-10mm. |
2.PROCESS FLOW OF FISH FEED PRODUCTION LINE:
Materials Crushing → Materials → Conveyor → Extrusion By Twin Screw Feed Extruder → Shifting→ Conveying → Drying Equipment (Electric Oven, Gas Fuel Oil Oven Or Steam Oven) → Oil Injection → Double-Drums Flavoring System → Cooling Conveyor → Packaging Machine
3.FLOATING FISH FEED EXTRUDER MACHINE DESIGN:
4.FISH FEED MAKING MACHINE FOR SALE
Item no. |
FFM65 fish feed extruder machine |
FFM70 fish feed extruder machine |
FFM85 fish feed production line |
FFM95 fish feed production line |
Whole Line Consumption power |
70-90KW |
90-110KW |
190-2000KW |
110KW |
Output Of Fish Pellet |
100-150kg/h |
200-250kg/h |
400-550kg/h |
800-1200kg/h |
Place Required |
40-50 |
50-60 |
90-100 |
150-200 |
Required Worker |
2-3 |
2-3 |
2-3 |
3-4 |
FISH FEED MAKING MACHINE APPLICATION
TWIN-SCREWS EXTRUDER FISH FEED MAKING MACHINE VS SMALL SINGLE-SCREW FISH FEED MACHINE
We can find there were 2 type fish feed making machine at present market for sale,one was double screw extruder fish feed machine ,Another was simple single screw extruder fish feed machine, even the simple single extruder price was much lower than double -screw fish feed making machine extruder we still suggest to buy the double screw extruder if your budget was allowed.Why we give you that suggestion?pls check below difference between the 2 type extruder fish machine.
FISH FEED MAKING MACHINE |
SMALL SINGLE-SCREW FISH FOOD MACHINE |
|
Raw Material For The Pet Food Processing |
The twin screw can use meat mud and bone mud with fat content 10-15% ,grain flour ,bean meal etc,...many kinds of raw materials |
Only can take grain flour as material |
Finished Pet Food |
Can produce high-quality high- protein content fish feed.fish feed pellets can float on water for over 20 hours.The machine also can make feed for pet like dog,cat with different shapes |
The product has low maturity and shape not good enough ,can not produce High protein fish feed |
Feed ex truder Material |
Ss304 stainless steel.never be rust |
Carton steel,esay be rust |
Motor |
At least take 22kw main motor which siemens brand ,quality strong enough |
4kw main motor |
Screws Material |
Adopt the hard material ,Material of screw: 38Crmoal it can be used 2-3 years with no wear |
Easy to wear |
Clean Of The Machine |
The double screws can be Self -cleaning ,without putout the screws |
Need Get out the screw to cleaning,take more time |
Working Performance |
Twin -screws working together more Stable |
Not stable |
