Macaroni pasta was one type main food of people, Macaroni is a variety of moderately extended,it was made by drum wheat.it can be cooked with vegetables and meet, taste was really very very good.Normally cut in short, hollow shapes. According to change differents, the customers can get different shapes and color. such as screw, shell, pipe etc. Industrial Automatic Macaroni Pasta Machine is usually made commercially by large-scale extrusion.The purpose of automatic automatic pasta machine is the production, processing and packaging of food dough (which can be long and short) having a shelf life that generally ranges from a few weeks up to about three months.
ANTOMATIC MACARONI PASTA PRODUCTION LINE FLOW CHART:
Raw material→ Mixing→ Screw Conveying → Extruding → Cooling conveying → Drying → Cooling conveying

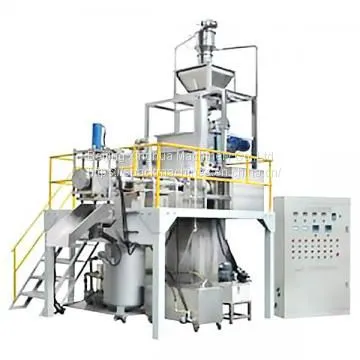

Mixer | Makes the raw material adding to water and liquid chemical additive fully mixed |
Screw hoister | Used for conveying the raw material to the feeder of the extruder from the mixer. |

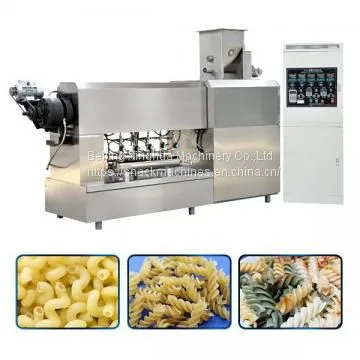

Single-screw extruder | Used the advanced frequency control skill，working stable and less power consume； screw made by alloy steel，have a longer life-span； auto heat-control system，easy work and parameter more accurate. |
Pulling and cutter machine | Pulling cutter is used to cutter long square pipe, circle pipe. |
Hoister | Deliver the macaroni to next device |

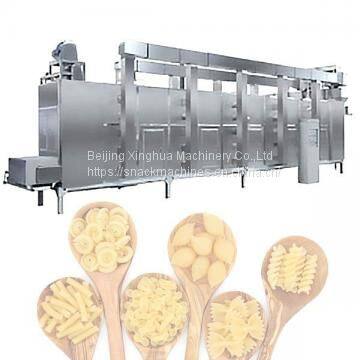

Hot air dryer | It can be used to bake and dry the food. The oven can bake all kinds of the inflating food, pet food, TVP/TSP food, peanut, nut, chew nut and so on. |
Air cooling conveyor | Cooling and carry the final product to next device. |
Packing system | To pack macaroni in differernt net weight ,such as 250g,500g,1000g etc. |
INDUSTRIAL AUTOMATIC MACARONI PASTA MACHINE MANUFACTURING PROCESS DESIGN:
MACARONI PASTA PRODUCTION LINE FOR SALE:
Item no. of automatic macaroni machine | Power | Capacity | Dimension |
AMP-100 | 130kw | 100kg/h | 25*3*3m |
AMP-110 | 250kw | 300kg/h | 35*3*3m |
ADVANTAGE OF INDUSTRIAL MACARONI PASTA MACHINE | |
Feeding System: | Installed in the main machine, which feeds materials spirally, and the quantity can be adjusted. This system includes engine, screw, blender and machine shelf. |
Extruding System | Adopts the crafts what can make the materials ripe in the low temperature by blending, cutting and extruding. Temperature control is set strictly on the roller and screw to reach criteria the materials require. |
Cutting System | The shelf is fixed on the head of the moulds; and turns and cuts the materials motivated by the belt wheel. |
Heating System: | Divides five areas, and the heating temperature of which can be adjusted separately. |
Transmitting System | The motive power from the main engine is transmitted to the screw through the triangle belt and decelerator. |
.Controlling System: | Can control all the components of the main machine centrally. |
Vacuum Pump. | With the vacuum pump,which can extract air from feeding part,so there will be no any air and bubbles inside the pasta and macaroni,it will not easy broken and taste also very strong and good. |
MACARONI PASTA MACHINE APPLICATION
