Flushby Rig of Different Hook Load
- Tianjin Seaport
- T/T L/C
- 2 days
You May Like
-
Convenient Multi-function Freestanding FBU Flushby Unit(RSU Rapid Service Unit)
-
40Ton Multi-function No-guyline Flushby Unit for Oilfield
-
30T Convenient Mobile Flushby Rig(Rapid Service Rig)
-
Multi-function Freestanding FBU Flushby Unit(RSU Rapid Service Unit)
-
Flushby Rig(Rapid Rod Service) for Heavy Oil Well
-
30Ton No-guyline Workover Rig
Product Details
| Brand Name | TS-SINOTAI | Place of Origin | China | |
| Certification | API | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12 Months | Weight | 29460kg | |
| Dimension(L*W*H) | 15100*2500*4000mm | Condition | New | |
| Power(W) | 350HP |
Product Description

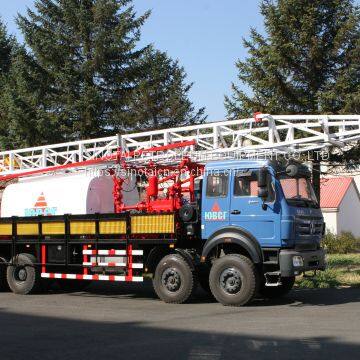

Flushby Rig
The flushby rig is a multifunctional equipment mainly used for well flushing and sand washing in thick oil well, and performing quick workover service of shallow/thick oil well. It is the next generation of service machine that outperforms service unit, pump truck and crane truck working together.
Highlights:
Flushby rig can substitute the crane, flush truck, pump truck in sand washing work of heavy oil well in rotary screw pump type. It can also work as a light and efficient small workover rig. It is a true all in one complex unit. .
The mast is equipped with long diagonal draw bar to open and shut automatically, which makes the rig not only facilitate horizontal drilling, but also function on a well slanted at a 45 degree angle.
Technical parameters | JLXJ22.5 | JLXJ27 | JLXJ40 | JLXJ45 | JLXJ60 |
Rated hook load(kN) | 225 | 270 | 400 | 450 | 600 |
Mast Height(m) | 18 | 24 | 18 | 24 | 22 |
Max. Static Hook Load(kN) | 360 | 360 | 700 | ||
Traveling System | 2×3 | 2×3 | 3×4 | 3×4 | 2×3 |
Triplex Pump Input Power (kW) | 135 | 145 | 145 | 145 | 145 |
Triplex Pump Water Power (kW) | 118 | 130 | 130 | 130 | 130 |
Triplex Pump Max. Pressure(MPa) | 35 | 35 | 35 | 35 | 35 |
Max. Working Pressure(MPa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Tank Volume(m³) | 8 | 9 | 9 | 9 | 6 |
Tank working temperature(℃) | 0—40 | 0—40 | 0—40 | 0—40 | 0—40 |
Tank Suitable Media Temperature(℃) | 0—120 | 0—120 | 0—120 | 0—120 | 0—120 |
Moving dimension (length x width x height)( m) | 15.40x2.50x4.10 | 13.40x2.76x4.10 | 15.40x2.76x4.10 | 15.40x2.76x4.10 | 13.00x2.60x4.30 |
Chassis | self-propelled chassis/ second-class chassis | self-propelled chassis/ second-class chassis | self-propelled chassis/ second-class chassis |
|
|
