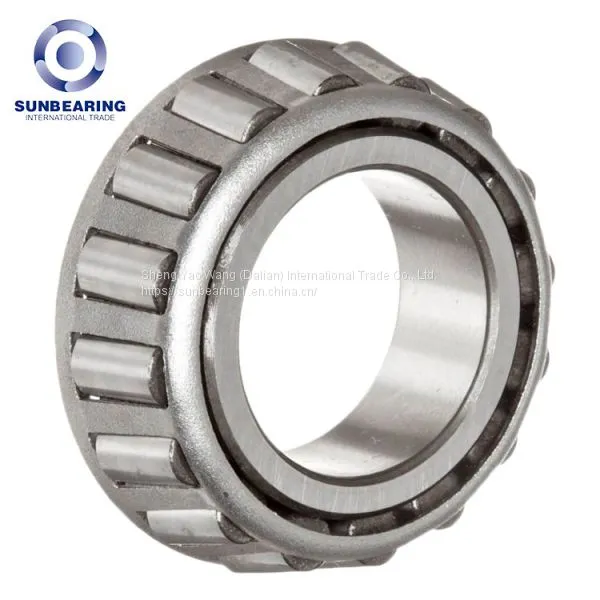

Help Center32940 Metric Single Row Tapered Roller Bearing 200*280*51mm SUNBEARING
Related Products
-
32215 Single Row Tapered Roller Bearing 75*130*33.25mm SUNBEARINGUS$ 14.61 - 30MOQ: 1 Piece -
351076 Double Rows Tapered Roller Bearing SUNBEARINGNegotiableMOQ: 1 Piece
-
SUNBEARING Double Row Thrust Roller Bearing 351160NegotiableMOQ: 1 Piece
-
SUNBEARING 32012X Tapered Roller Bearing Chrome SteelNegotiableMOQ: 1 Piece
-
SUNBEARING Professional Mining Metallurgical Tapered Roller Bearing 32015NegotiableMOQ: 1 Piece
| Bore diameter: | 200 mm | Fatigue limit load, radial | 109000 N |
| Outside diameter: | 280 mm | Limiting speed | 2320 1/min |
| Overall width: | 51 mm | Reference speed | 1410 1/min |
| Rows of Rollers | Single | Mass | 10,2 kg |
| Outer ring type: | Split | da | max. 217 mm |
| Internal clearance: | CN | db | min. 215.5 mm |
| Closure type: | Open | Da | min. 257 mm |
| Bore Type | Round | Da | max. 266.5 mm |
| Basic dynamic load rating, radial | 495000 N | Ca | min. 9 mm |
| Basic static load rating, radial | 930000 N | Cb | min. 12 mm |
32940 bearing has tapered inner and outer ring raceways between which tapered rollers are arranged. Their design makes them suitable for the accommodation of radial and axial loads. Benefits include increased operational reliability, as well as reduced sensitivity to misalignment.
32940 Tapered Roller Bearing Features32940 single row tapered roller bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle.
Tapered roller bearings have tapered inner ring and outer ring raceways, and tapered rollers are arranged between the two. The projection lines of all cone surfaces converge at the same point on the bearing axis.
This design makes tapered roller bearings particularly suitable for bearing compound (radial and axial) loads. The axial load capacity of the bearing is mostly determined by the contact angle α; the larger the angle α, the higher the axial load capacity.
The size of the angle is expressed by the calculation coefficient e; the greater the value of e, the greater the contact angle, and the greater the applicability of the bearing to bear the axial load.
32940 Bearing ApplicationTapered roller bearings are widely used in industries such as automobiles, rolling mills, mining, metallurgy, and plastic machinery.
