Pneumatic Clutch and Brake Combination Together HACB

Pneumatic clutch and brake combination together HACB

Air clutch and brake group is a friction type shaft unit, it can be used as clutch or brake easily. Clutch and brake combination structure, it can save some installation space accordingly. Clutch and brake air input port is separately, so it can be controlled independently.

HACB Air friction type clutch and brake integrated unit is a pneumatic shaft structure. It is made by Handong company with superior quality. We are the professional and experienced manufacturer of industrial clutch and brake nearly 20 years' experience. This HACB clutch and brake group is the combination of regular NAC pneumatic clutch and NAB pneumatic brake.

HACB is also friction type air shaft unit, after inputting air pressure, clutch or brake linked for working. Combined industrial clutch and brake unit is convenient for small installation space usage. The HACB is a shaft mount friction type clutch and brake unit, it is an integrated structure. HACB is the combined NAC clutch and NAB brake together. This HACB clutch and brake combination can replace DSDP, HWCB, MWCB air chamber clutch-brake to be a clutch or brake as need.

HACB DSDP industrial clutch and brake unit is popular applied. NAC CSCP clutch and NAB BSB brake both equiped with cooling fan blade structure, it is good for heat dissipation during working, so as to reduce thermal and prolong brake pads and brake's service life greatly.

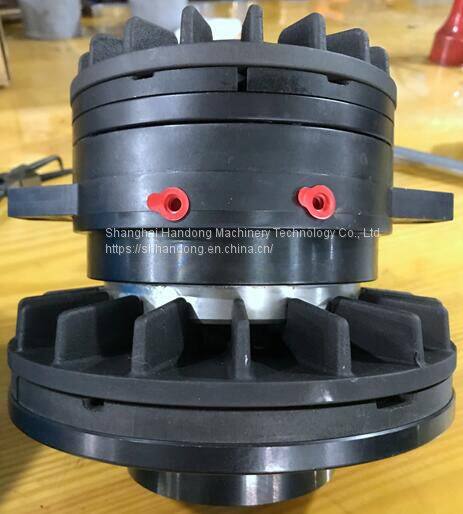

On the other hand, there are two pieces of mounting plates on clutch part, it is convenient for this group fixing on flange panel. Shaft and shaft installation is easy and can save some installation space. There are three kinds of working modes are available. This is the detail structure of it:

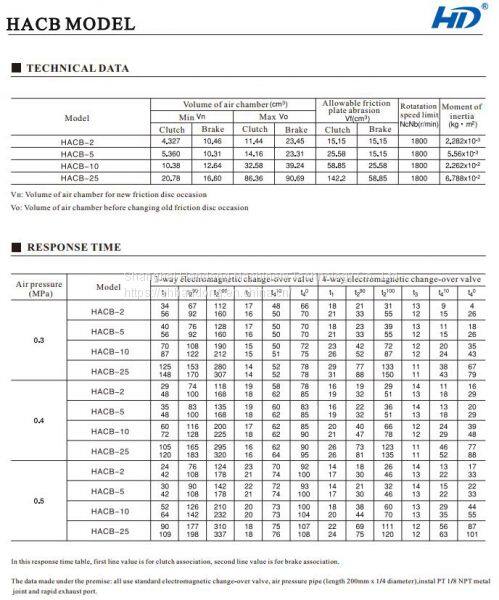

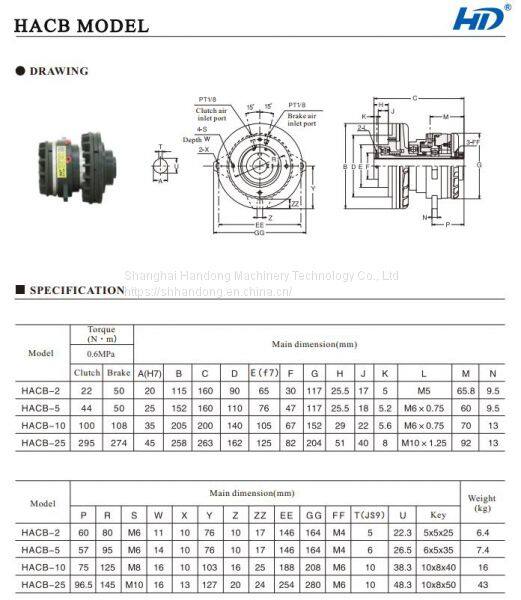

Clutch and brake unit has four models: HACB-2, HACB-5, HACB-10, HACB-25. They can replace Asahi DSDP1, DSDP4, DSDP10, DSDP30,X and Nexen FWCB-8-38, FWCB-8-42, LWCB, HWCB, MWCB pneumatic clutch-brake group very well. Following is the technical data of it for your reference:

This HACB clutch and brake unit is mainly applied in packaging and printing machine, cold heading machinery, high speed stamping machinery, forging and stamping machinery, high precision punch machinery, paper making machinery, die cutting machinery, cutting machine and etc.

In this above picture shown, HACB clutch and brake unit is used in paper packing and printing machine, connected with air shaft. Brake part is connected with driving chain, when air inputted into clutch air chamber, clutch linked to transmit power from driving part to driven part. When air inputted into brake air chamber, brake clamp driving shaft to make driving part stop.

This DSDP clutch brake unit is convenient for usage, it can be applied as a clutch or brake as needed, only exchange air source input port is ok. It is easy and convenient for operation and control.
