General

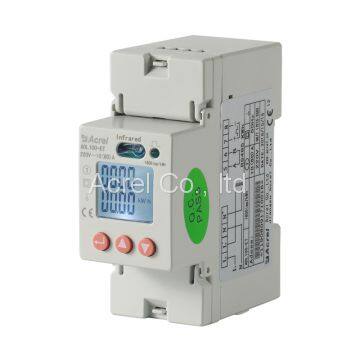

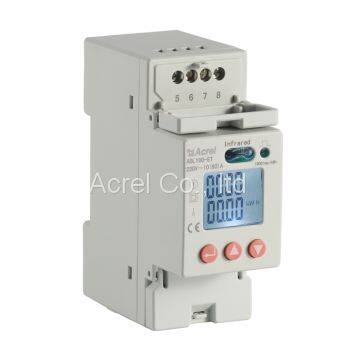

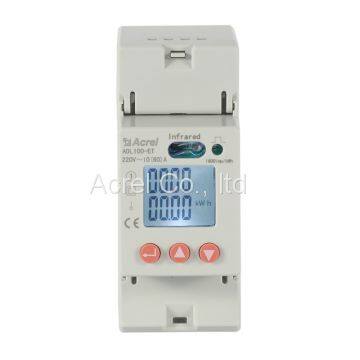

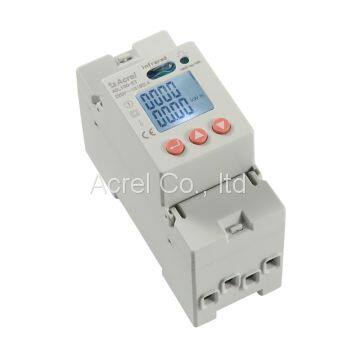

ADL100-ET single phase electric meter is designed for single phase active energy measurement on low voltage system. The meter meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standards.
Production Functions
Function | Description |
Measurement of kWh | Single-Phase active KWH (positive and negative) |
Measurement of electrical parameters | U、I、P、Q、S、PF、HZ |
LCD Display | 8 digits |
Button | 3 keys |
Pulse output | Active energy pulse output |
communication | RS485, MODBUS-RTU |
Infrared |
Electrical performance
Voltage | Reference voltage | AC 220V |
Reference frequency | 45-65 Hz | |
Consumption | <10VA( Single phase) | |
Current | Maximum | 60A |
Starting current | 0.004 Ib | |
Consumption | <4VA(Maximum current) | |
Measurement performance | Accuracy of active kWH | Class 1 |
Standards complicant | IEC 62053-21:2003 | |
Pulse | Pulse width | 80+20 ms |
Pulse constant | 3200 imp/kWH |
Dimension drawings
Email：Shelly@acrel.cn
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
