Help Center360degree High Brightness White Flashing High Intensity Aviation Light
Related Products
-
UAE Popular Strong Housing Type B Medium Intenstiy 4sets Solar Panel Aviation LightUS$ 279 - 299MOQ: 2 Pieces -
Anit Shock Solar Double Light Low Intensity Obstacle LightUS$ 125 - 199MOQ: 2 Pieces
-
Africa Low Price Best Selling Low Intensity Aviation Warning Signal LightUS$ 39 - 99MOQ: 2 Pieces
-
Glass Lampshade Visual Distance 40km Type A Solar Hight Intensity Solar Aviation Obstruction LightUS$ 1299 - 1499MOQ: 2 Pieces
-
ICAO Optional Working Mode Dual Light Low Intensity Led Aviation LightUS$ 129 - 199MOQ: 2 Pieces
Description

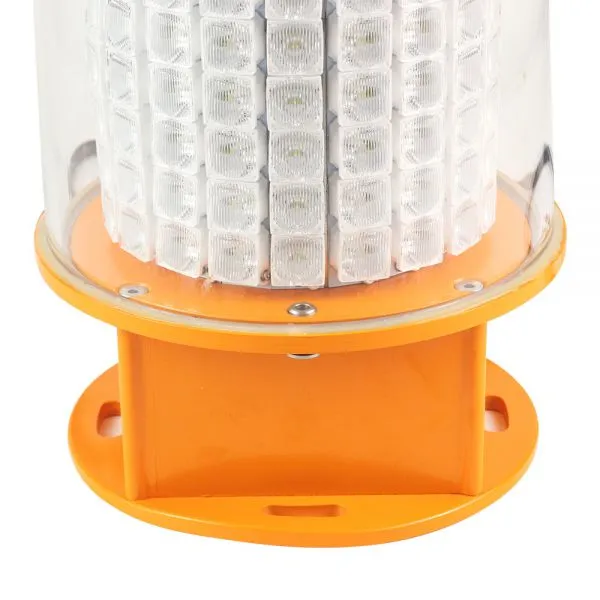

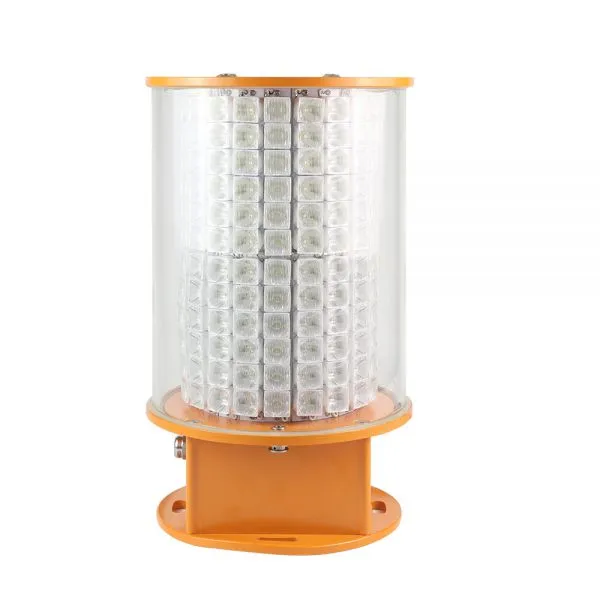

GS-HI/O High-intensity Aviation Obstruction Light adopts structure of aluminum alloy of the lacquer that bake, it has the specific of light weight and corrosion resistance.
The light source adopts self search and development dedicated LED chip packing, it has the specific of high light intensity, low power consumption, long service life.
Lampshade adopts tempered glass, which has super power of corrosion resistance, anti-UV, shock resistance.
Pilot circuit has strong ability of lighting protection and with anti-surge protection, which can adapt to extremely bad working environment.
This equipment contain lots of working mode and can be customized according the customers requirement.
Name |
Parameter |
FAA Classify |
L-857 |
Model |
GS-HI/O |
Power voltage |
AC220V |
Power Supply Frequency |
50HZ～60HZ |
Power Consumption |
Average: ≤100w, Flashing: 750W |
Working mode |
Flashing 40times/min |
Continuous working time |
70ms |
Light Intensity |
Type A: 2000cd～20000cd～200000cd（±25%） Type B: 2000cd～20000cd～100000cd（±25%） |
Vertical Divergence |
7° |
Horizontal Out-put |
360° |
Service Life of the Light Source |
≥10 years |
Emitting Light Colors |
White |
Overall Size(mm) |
234X234X406(mm) |
Installation size |
180mmx180mmxM10 |
IP Protection |
IP66 |
Optically Controlled Ambient Brightness |
50cd-500cd/㎡ |
Ambient Temperature |
-40℃～55℃ |
Weight |
12kg |
Anti Wind Ability |
80m/s |
About us
Dongguan Xinan Technology Co.,Ltd. is a high technology enterprise engaging in research, production, sales and after sale services for a wide range of Aviation Obstruction Light, LED Warning Light, Heliport Light, LED Marine Lanterns, Solar Garden/Street Light. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in domestic and overseas market in many fields,eg.Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). we are proud to have served customers from all across the world.
