Description

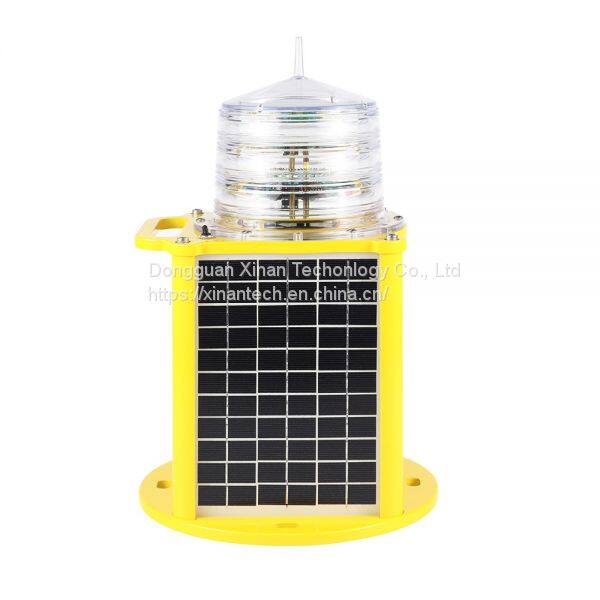

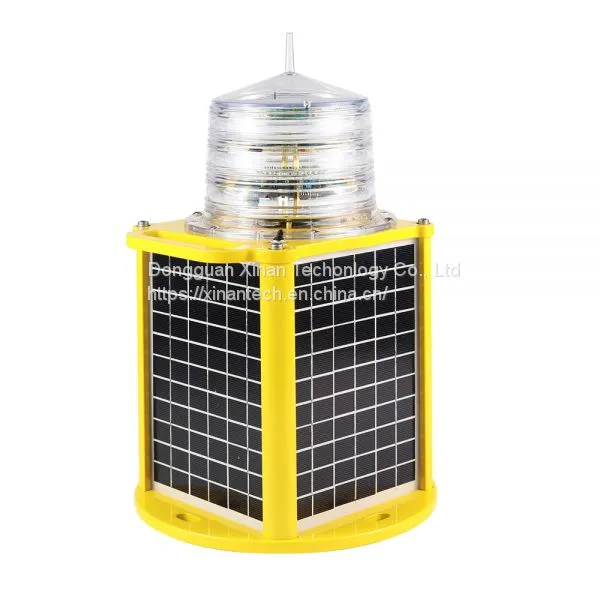

Portable Medium-intensity Type B Solar Aviation Obstruction Light adopts illuminance but high efficient solar panels integrated design, cooperate with solar dedicated plumbic acid battery as power supply.
The battery adopts advance power management system, which can provide good protection when battery ’s voltage and temperature too high or too low, so it can improve the battery’s service life efficiently.
Controlling circuit adopts micro-power consumption, which reduce controlling circuit ’s power consumption.
Light source adopts high efficient LED chip, which has specific of high Light intensity, low power consumption, long life and so on.
Adopts portable structure design, it's convenient for transportation, especially fit for temporary channel, airport runway.
Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock and so on.
Name |
Parameter |
Name |
Parameter |
Type |
GS-MS/B |
Light Source Life |
＞100000 hours |
Power Provider |
Mono-crystalline silicon solar panel |
Optional Emitting Light Colors |
Red |
Battery Capacity |
12V14AH |
Battery Type |
Lead-acid battery |
Solar panel voltage |
5.5V |
Solar panel Power Consumption |
6Wx4 |
Power Consumption |
≤15W |
Vertical Divergence |
＞10° |
Visual Distance |
＞15km |
Horizontal Out-put |
360° |
Light Intensity |
2000cd(±25%) |
Overall Size(mm) |
260x260x420(H)(mm) |
Light Source |
LED |
Installation Size(mm) |
D220mmxM8 |
Working temperature |
-50℃~70℃ |
Wind-speed Ability |
80m/s |
Storage temperature |
-50℃～70℃ |
Working mode |
Flashing(20times/min) |
Weight |
7kg |
IP Protection |
IP65 |
Continuous Burning Time in rainy days |
＞15 days (12 hours a day) |
Sun Switch Illumination Threshold |
300LUX±100LUX |
About us
Dongguan Xinan Technology Co.,Ltd. is a high technology enterprise engaging in research, production, sales and after sale services for a wide range of Aviation Obstruction Light, LED Warning Light, Heliport Light, LED Marine Lanterns, Solar Garden/Street Light. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in domestic and overseas market in many fields,eg.Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). we are proud to have served customers from all across the world.
