Description

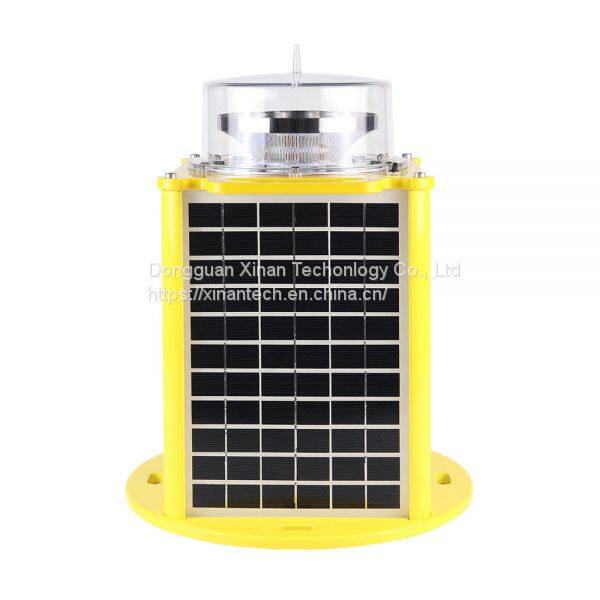

GS-HI/AT High-intensity Type A Solar Aviation Obstruction Light adopts low-light but high efficient solar panels integrated design, cooperate with solar lead-acid battery as power supply.
The battery adopts advance power management system, which can provide good protection when battery ’s voltage and temperature too high or too low, so it can improve the battery’s service life efficiently.
Control circuit adopts micro-power consumption, which reduce controlling circuit ’s power consumption.
Light source adopts high efficient LED chip ,which has specific of high light intensity, low power consumption ,long service life and so on.
Adopting the design of the portable design,which is convenient for carrying and transportation, especially suitable for the occasions of the temporary channel, the airport runway, the tower, etc.
Lampshade adopts glass material, which can corrosion resistance, anti-UV anti-shock.
Name |
Parameter |
Name |
Parameter |
Type |
GS-HI/AT |
Light Source Life |
＞100000 hours |
Power Provider |
Mono-crystalline silicon solar panel |
Optional Emitting Light Colors |
White |
Battery Capacity |
12V24AH |
Battery Type |
Lead-acid battery |
Battery Life |
3-5years |
Solar panel voltage |
16.5V |
Solar panel power |
8W x 4pcs |
Solar panel Life |
＞20years |
Power Consumption |
≤40W |
Vertical Divergence |
＞3° |
Visual Distance |
40Km |
Horizontal Out-put |
360° |
FAA Classify |
L864/865 |
Overall Size(mm) |
325x325x366 (mm) |
Light Source |
LED |
Installation Size(mm) |
Pitch circle 270 mm distributed 4M8 holes |
Working temperature |
-50℃~70℃ |
Wind-speed Ability |
80m/s |
Storage temperature |
-50℃～70℃ |
Working mode |
Flashing 40times/min |
Sun Switch Illumination Threshold |
300LUX±100LUX |
Intensity |
2000cd-20000cd-200000cd（±25%） |
Weight |
18kg |
IP Protection |
IP67 |
Continuous Burning Time |
＞20 days (12 hours a day) |
||
