Home > Products > Stainless Steel oil sight glass > SS304 Oil Level Sight Glass oil gauge for gearbox oil container gasoline oil tank 1500PSI

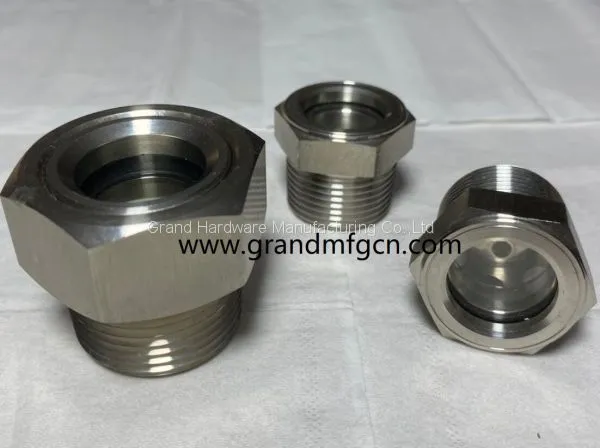

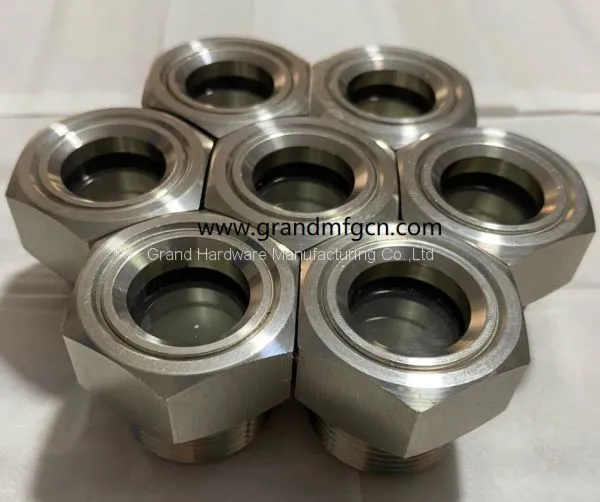

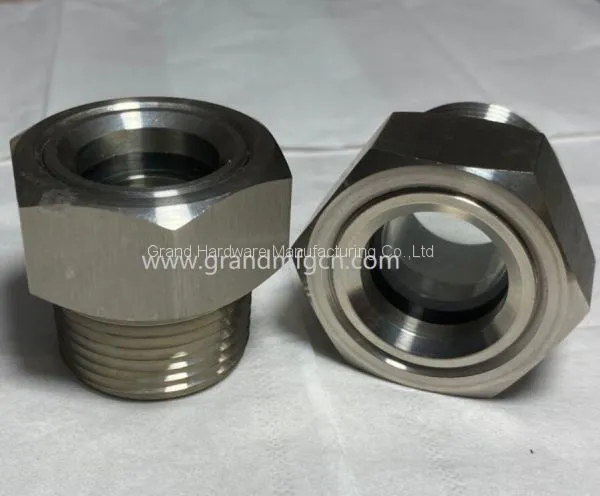

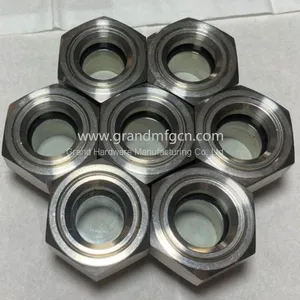

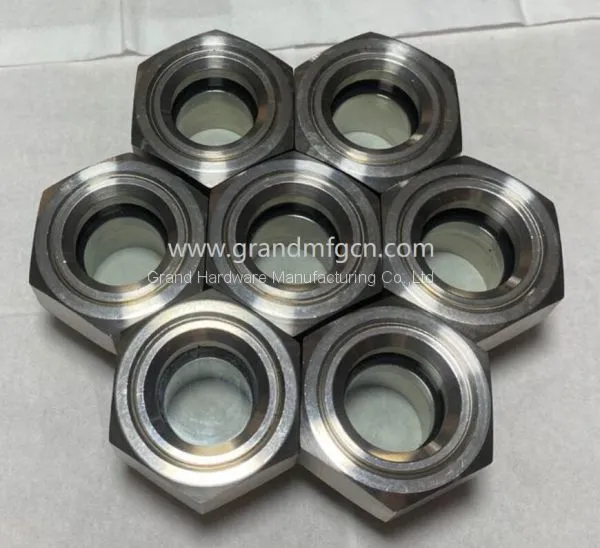

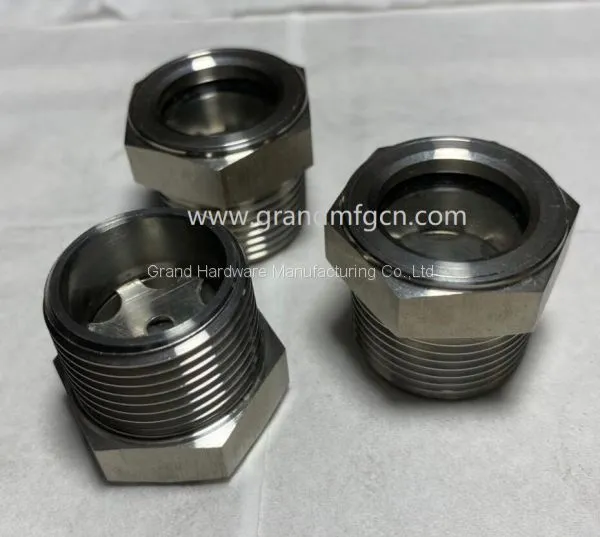

SS304 Oil Level Sight Glass oil gauge for gearbox oil container gasoline oil tank 1500PSI
USD $0.68 - $20
/ Piece
500 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo port
- T/T
- 45 days
You May Like
Product Details
| Brand Name | grandmfg | Place of Origin | China | |
| Model Number | www.grandmfgcn.com | Type | Oil PUmp | |
| Size | 1/2“,3/4“,1“,1-1/4“,1-1/2“,2“ | Warranty | grandmfg |
Product Description
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| FAQ | ||
| 1.What is your MOQ, Delivery time? Ship from which port? | ||
| Our MOQ from 20-1000 Pcs different according items.The retail orders from ultimate customers are available if the item in stock. We usually ship bulk goods within 45 days from Ningbo port. | ||
| 2.Can I get sample for quality checking before order? | ||
| Yes. Although we have a complete product quality inspection systerm, we also hope to confirm the new project before order.We could offer sample for free but do not pay the express charge. | ||
| 3.If we get quality problem or wrong sizes, how to solve? | ||
| Please check the goods once you get. If we ship wrong products (for example :wrong sizes) or you get quality problem, don't worry, just please contact us immediately, we will take our responsibility. About some items, we sure that our products' sevice life as same as your equipments' service life. You will get what you pay for. | ||
| 4.How to contact Yuhuan Yize Machinery Factory ( Grand Hardware Manufacturing Co.,Ltd.)? | ||
| Please visit our website: . |
