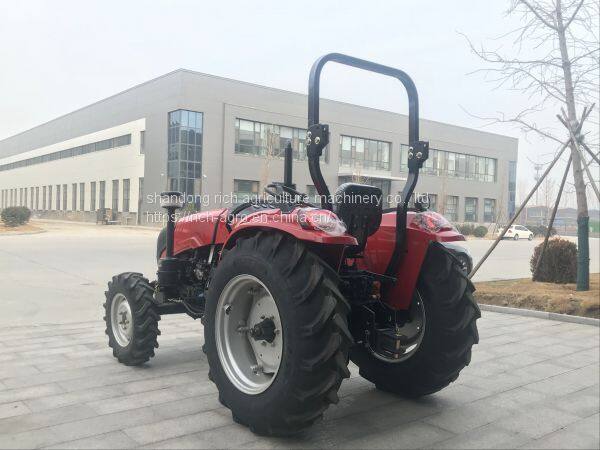

4wd / Hydraulic Steering Tractor Straight 4*4 With 1730 Wheel Base

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Rich	Place of Origin	China
Model Number	TY254	After-sales Service Provided	Engineers available to service machinery overseas
Certificate	CE	Usage	Farm Tractor
Drive Type	Gear Drive	Condition	New
By wheel	4WD

Advantages:

1.By using side rotating structure, the working process of paddy field can be completed in one time.

2.Time saving, labor saving, greatly reducing the cost of farming.

3.Various types can be made according to the requirements of the customer

Parameter:

model	TY254	TY354	TY404/504
drive type	4*4	4*4	4*4
size(mm)	300015001200	300015001800	300015002400
wheel thread(mm)	front	1000/1100
rear	1200/1300
wheel base(mm)	1730	1730	1800
min ground clearance(mm)	330	330	320
weight	1200	1200	1360
tyre	front	6.5-16
	rear	11.2-24
type of gearbox	(4+1)*2
steering system	hydrualic steering
braking system	shoe brake
clutch	dry, single sheet, single action, constant conjunction
min turning radius(m)	single brake	3.0±0.4	3.0±0.4	3.5±0.4
without single brake	3.7±0.4	3.7±0.4	4.2±0.4
theoretical speed(Forward/R/Creeper)(km/h)	2.07-31.5/2.07-2.27/2.07-12.59
PTO speed (r/min)	540/720
pump capacity(l/min)	30
hydraulic control system	pistion control
3-point hitch	catagery I
engine model	KM385BT	4L22BT	4L100
engine type	3/4 cylinder,in-ine,water cooling,4 stroke	cycle, direct injection
net power(hp)	25	35	40/50
rated speed(r/min)	2350	2350	2350

characteristic:

RH series compact tractor is an economic choice suitable for tight area opeartion such as lawn paddy field, orchard etc.

Equipped with 6+1 gearbox, 4WD and hydraulic steering. And air breake and multiway hydraulic output is optional.
